1963 Yamaha Trailmaster (YG1T) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1963 Yamaha Trailmaster (YG1T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

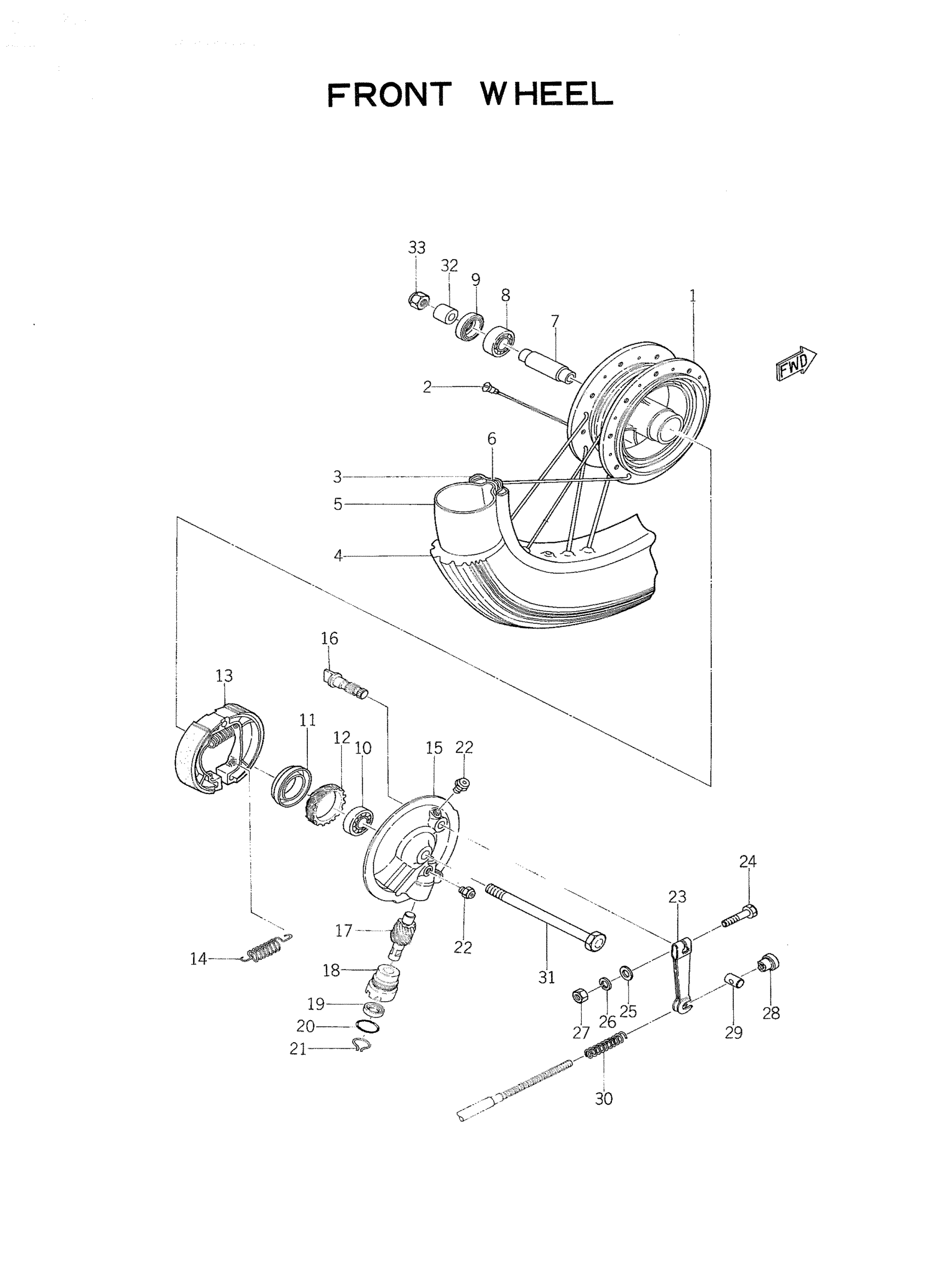

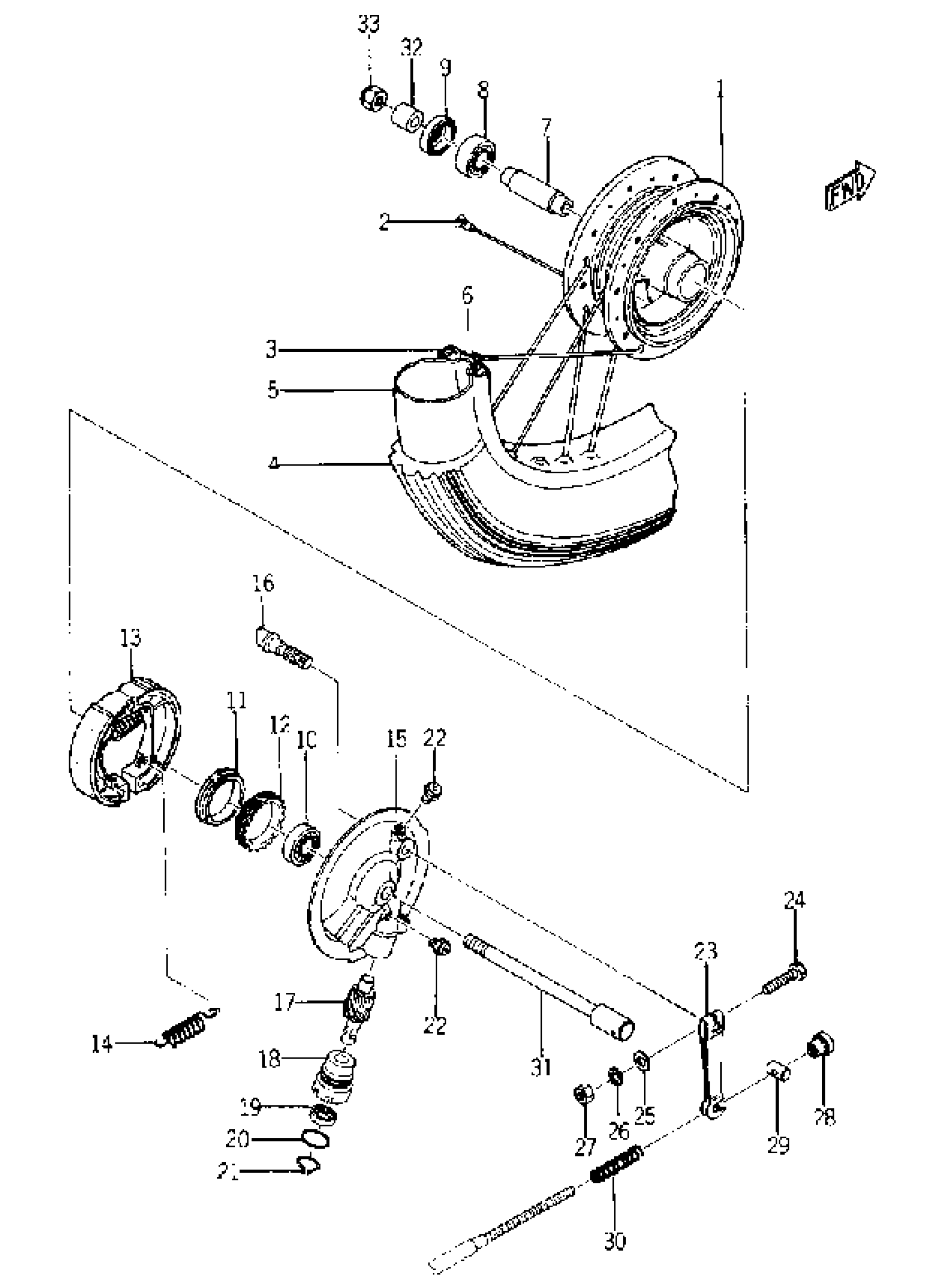

1963 Yamaha Trailmaster (YG1T) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT

102-25111-01-38

1
Out of stock

2

SPOKE SET, FRONT

102-25104-00-00

1
Out of stock

3

RIM 1.40X16

94414-16125-00

1
Out of stock

4

TIRE

94125-16010-00

1
Out of stock

5

TUBE 250X16

94225-16048-00

1
Out of stock

6

BAND, RIM

94330-16058-00

1

$18.18

In stock

7

SPACER, BEARING

102-25117-00-00

1
Out of stock

8

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

9

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

10

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

11

OIL SEAL, OS-TYPE

93107-42001-00

1
Out of stock

12

GEAR, DRIVE

102-25135-01-00

1
Out of stock

13

BRAKE SHOE KIT

4KN-W253E-11-00

1

$22.40

In stock

14

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

15

PLATE, BRAKE SHOE

122-25121-02-38

1
Out of stock

16

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

17

GEAR, METER

122-25138-00-00

1
Out of stock

18

BUSHING

109-25136-00-00

—

$8.78

In stock

19

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

20

O-RING (26H)

93210-14579-00

—

$5.69

In stock

21

RING, STOP

102-25137-00-00

—
Out of stock

22

LEVER, CAMSHAFT 1

109-25155-00-00

1
Out of stock

22

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

24

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

25

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

NUT, SPEC''L SHAPE

90179-05150-00

1
Out of stock

29

PIN,SPEC'L SHAPE

90249-10101-00

1
Out of stock

30

SPRING, COMPRESSION

90501-08038-00

1
Out of stock

31

AXLE, WHEEL

99999-02188-00

1
Out of stock

32

COLLAR

90387-10079-00

1
Out of stock

33

NUT,SPEC'L SHAPE

90179-10106-00

1
Out of stock
