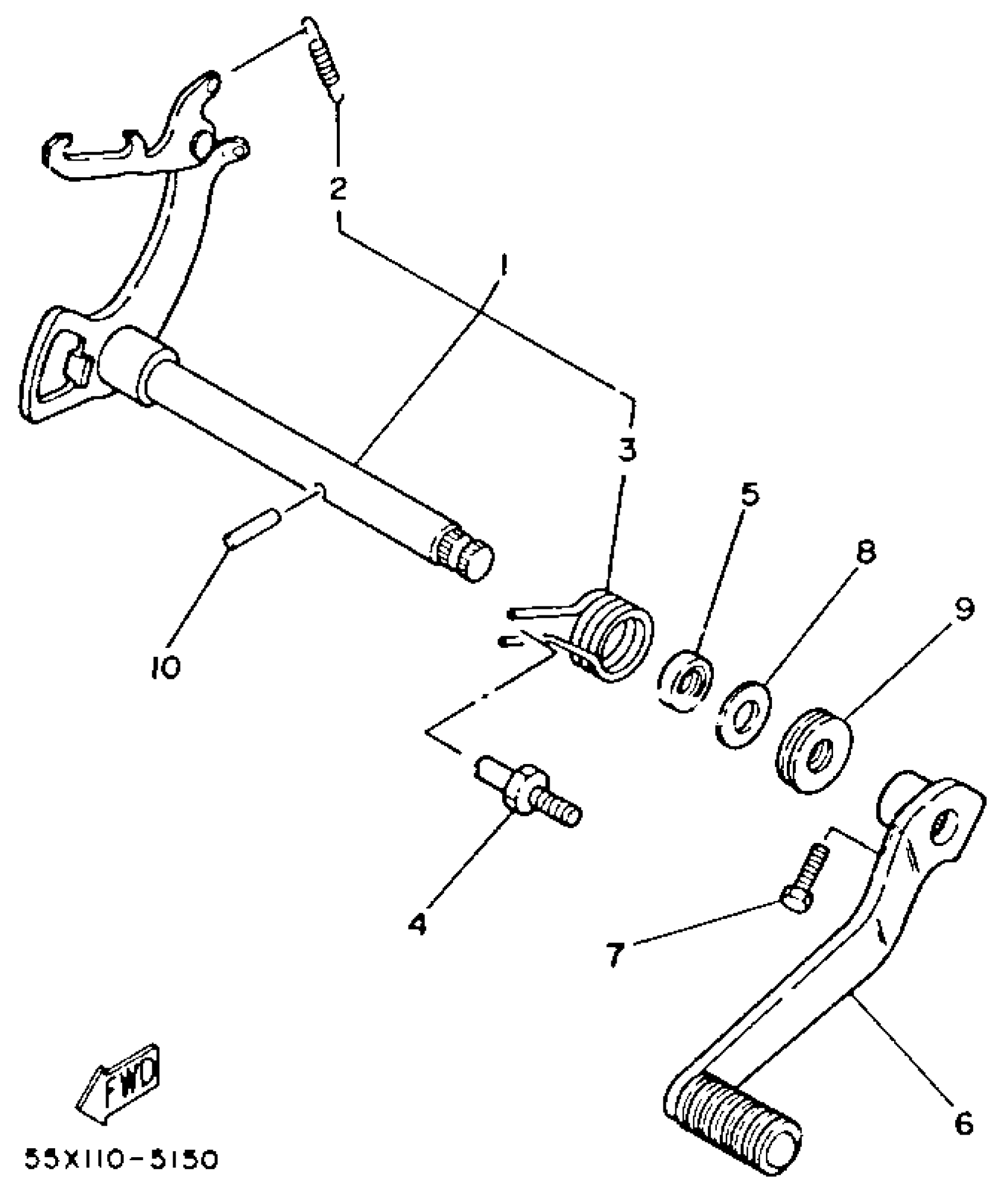

Yamaha YFM80S (BADGER) 1986 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

22F-18101-03-00

$50.51

2

SPRING, TENSION (296)

90506-08122-00

$5.42

3

SPRING, TORSION (22F)

90508-32563-00

$4.18

4

STOPPER, SCREW

278-18127-01-00

$14.87

5

SEAL, OIL (30X)

93102-12321-00

$9.69

6

SHIFT PEDAL ASSY

2HX-18110-10-00

$30.08

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

WASHER, PLATE(2JG)

90201-126L0-00

$4.96

9

BEARING, THRUST(2FL)

93340-21209-00

$13.64

10

PIN, DOWEL (4H7)

93604-20156-00

$2.13
