1986 Yamaha Badger (YFM80S) Shift CAM - Fork Diagram

← All diagrams

Find the part on the Shift CAM - Fork diagram for your 1986 Yamaha Badger (YFM80S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

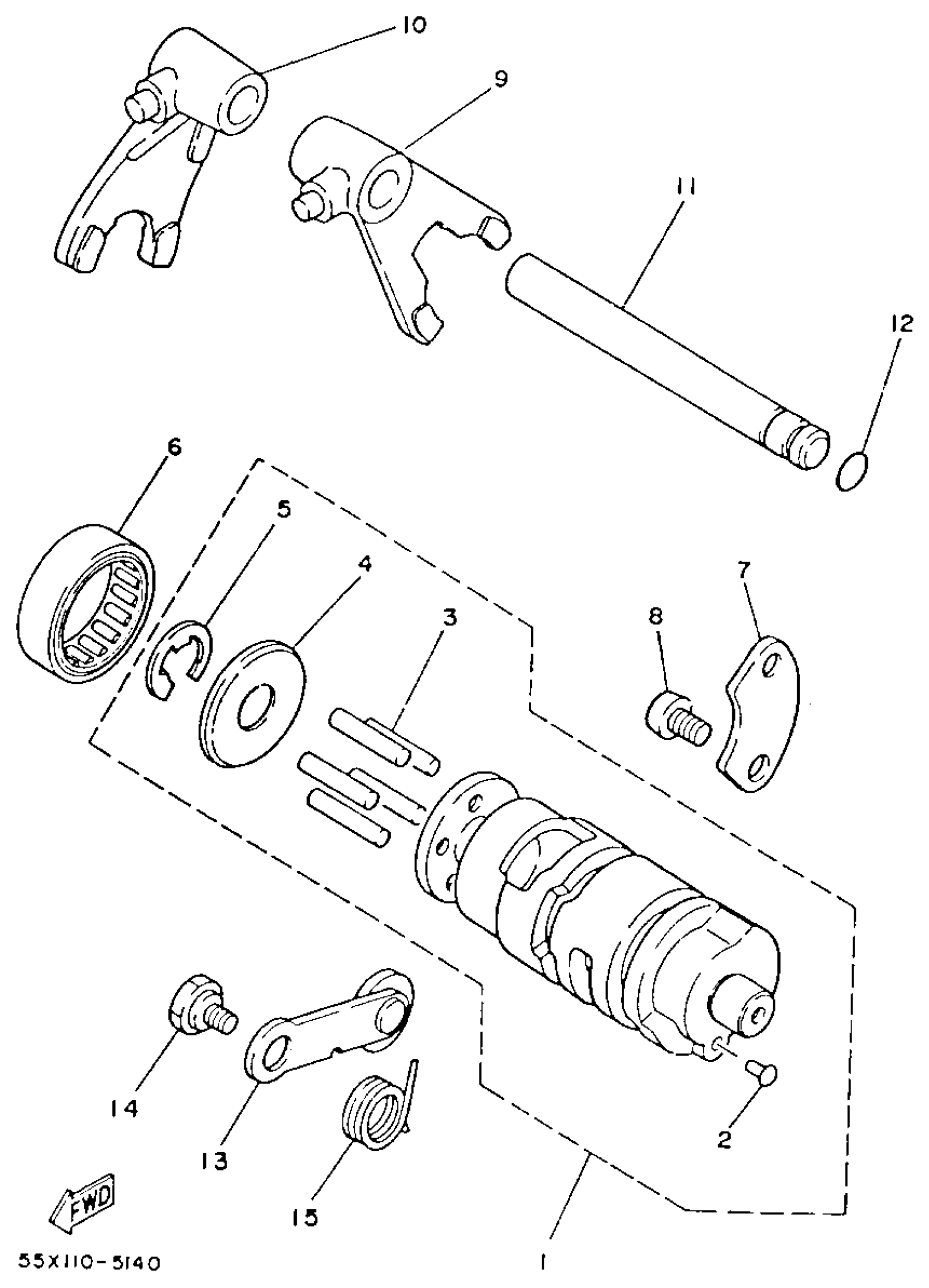

1986 Yamaha Badger (YFM80S) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

55X-18540-00-00

1
Out of stock

2

POINT,NEUTRAL (150610)

136-18542-00-00

1

$5.31

In stock

3

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

4

PLATE, SIDE

296-18561-00-00

1

$5.38

In stock

5

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

6

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

1

$29.23

In stock

7

PLATE, STOPPER 2

22F-18562-01-00

1
Out of stock

8

SCREW, PAN

98507-06014-00

1

$6.18

In stock

9

FORK, SHIFT 1

2MK-18511-00-00

—

$32.74

In stock

10

FORK, SHIFT 2

29F-18512-00-00

—

$30.91

In stock

11

BAR, SHIFT FORK GUIDE 1

22F-18531-00-00

1
Out of stock

12

O-RING (11M)

93210-07540-00

1

$5.77

In stock

13

STOPPER LEVER ASSY

29F-18140-00-00

—

$7.97

In stock

14

BOLT

90109-06239-00

1

$5.77

In stock

15

SPRING, TORSION (22F)

90508-20576-00

—

$1.83

In stock
