1986 Yamaha Badger (YFM80S) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1986 Yamaha Badger (YFM80S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

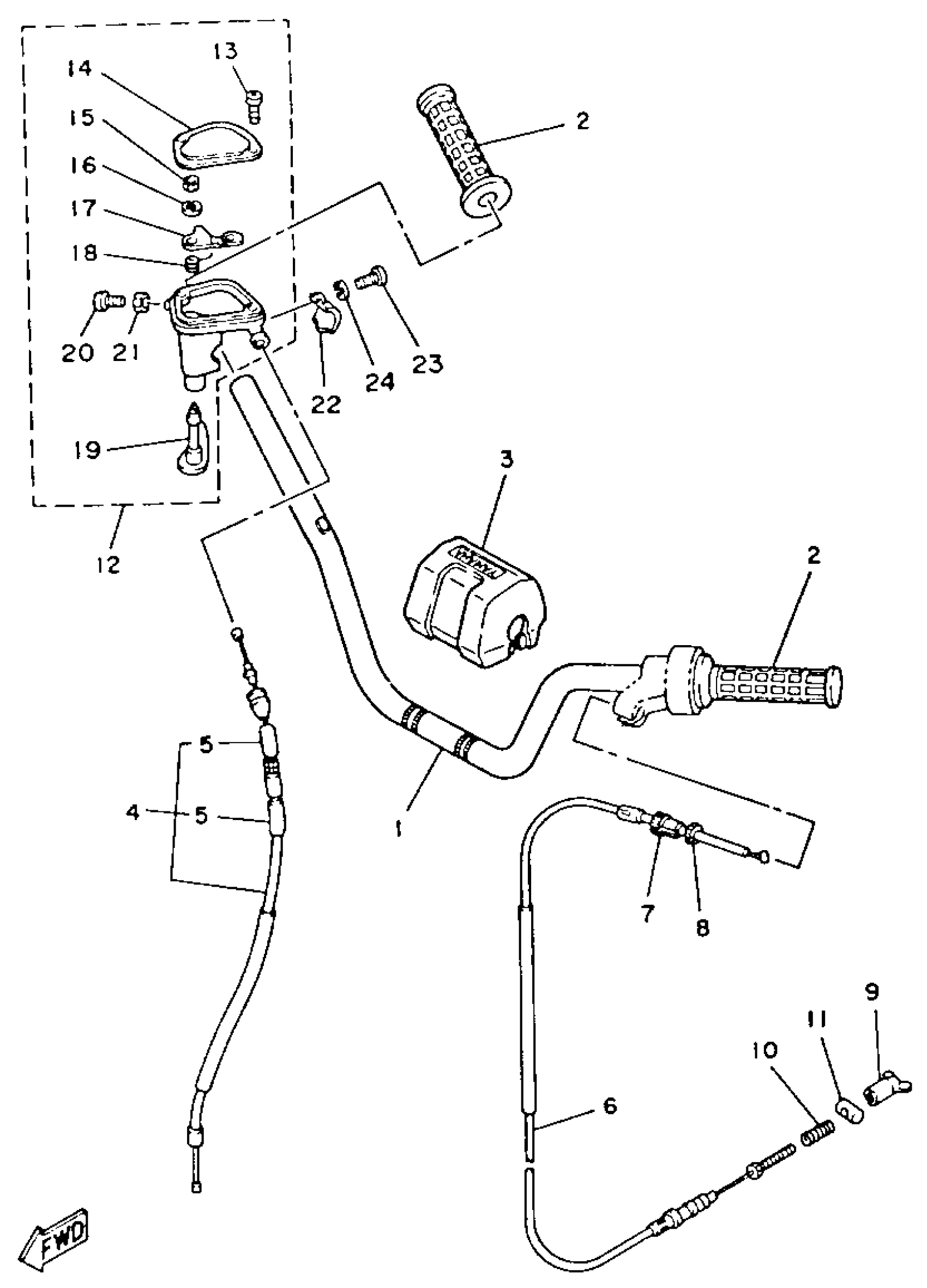

1986 Yamaha Badger (YFM80S) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

55X-26111-00-00

1
Out of stock

2

GRIP (L.H)

3GB-26241-00-00

1

$19.00

In stock

3

PROTECTOR, HANDLEBAR

55X-26124-00-00

1
Out of stock

4

CABLE, THROTTLE 1

55X-26311-00-00

1

$35.49

In stock

5

. CAP, RUBBER

3X3-26329-00-00

1
Out of stock

6

CABLE, BRAKE

55X-26341-00-00

1
Out of stock

7

BOLT

90123-08002-00

1

$8.93

In stock

8

NUT

90179-08030-00

1

$3.78

In stock

9

NUT, AJUSTING

20E-26343-00-00

1

$22.28

In stock

10

SPRING, COMPRESSION (29U)

90501-10782-00

1
Out of stock

11

PIN 1562723700

90249-12008-00

1

$4.70

In stock

12

THROTTLE LEVER ASSEMBLY

55X-26250-01-00

1
Out of stock

13

SCREW, PAN HEAD(3LA)

98517-05010-00

1

$3.52

In stock

14

. CAP, GEAR

21V-2628F-00-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

. ARM, throttle

55X-2625H-01-00

1
Out of stock

18

. SPRING, TORSION

90508-10597-00

1
Out of stock

19

LEVER, THROTTLE

55X-2625G-00-00

1
Out of stock

20

. SCREW, PAN HEAD 55X

90157-05075-00

1
Out of stock

21

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

22

H0LDER, LEVER L0WER 1

38V-82913-00-00

—
Out of stock

23

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

24

WASHER(3SX)

92907-05100-00

—

$6.18

In stock
