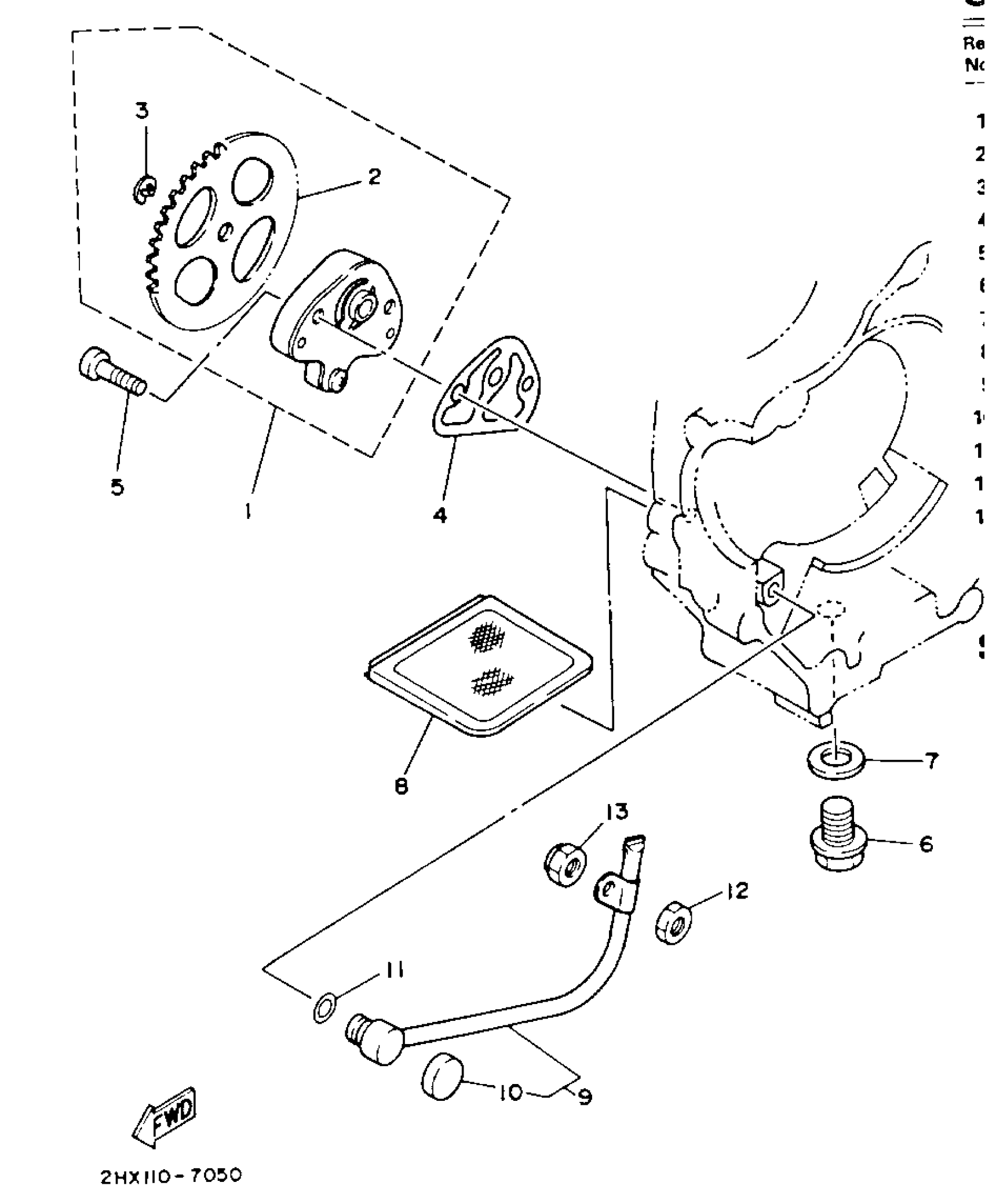

Yamaha YFM100W (CHAMP) 1989 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2FJ-13300-00-00

Unavailable

2

GEAR, PUMP DRIVEN

46J-13325-00-00

Unavailable

3

CIRCLIP(22K)

99080-05600-00

$5.75

4

GASKET, PUMP COVER

22F-13329-01-00

$6.79

5

SCREW, FLAT FILLISTER

90155-06007-00

$0.41

6

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$2.63

7

GASKET

812-11198-00-00

$6.03

8

STRAINER, OIL

22F-13411-01-00

$23.12

9

PIPE, DELIVERY 1

2HX-13161-00-00

Unavailable

10

. WASHER

2HX-13177-00-00

Unavailable

11

O-RING (26H)

93210-06632-00

$6.22

12

NUT, U

95617-05100-00

$6.22

13

UNAVAILABLE IN PRICE BOOK

95-31205-60-00

Unavailable
