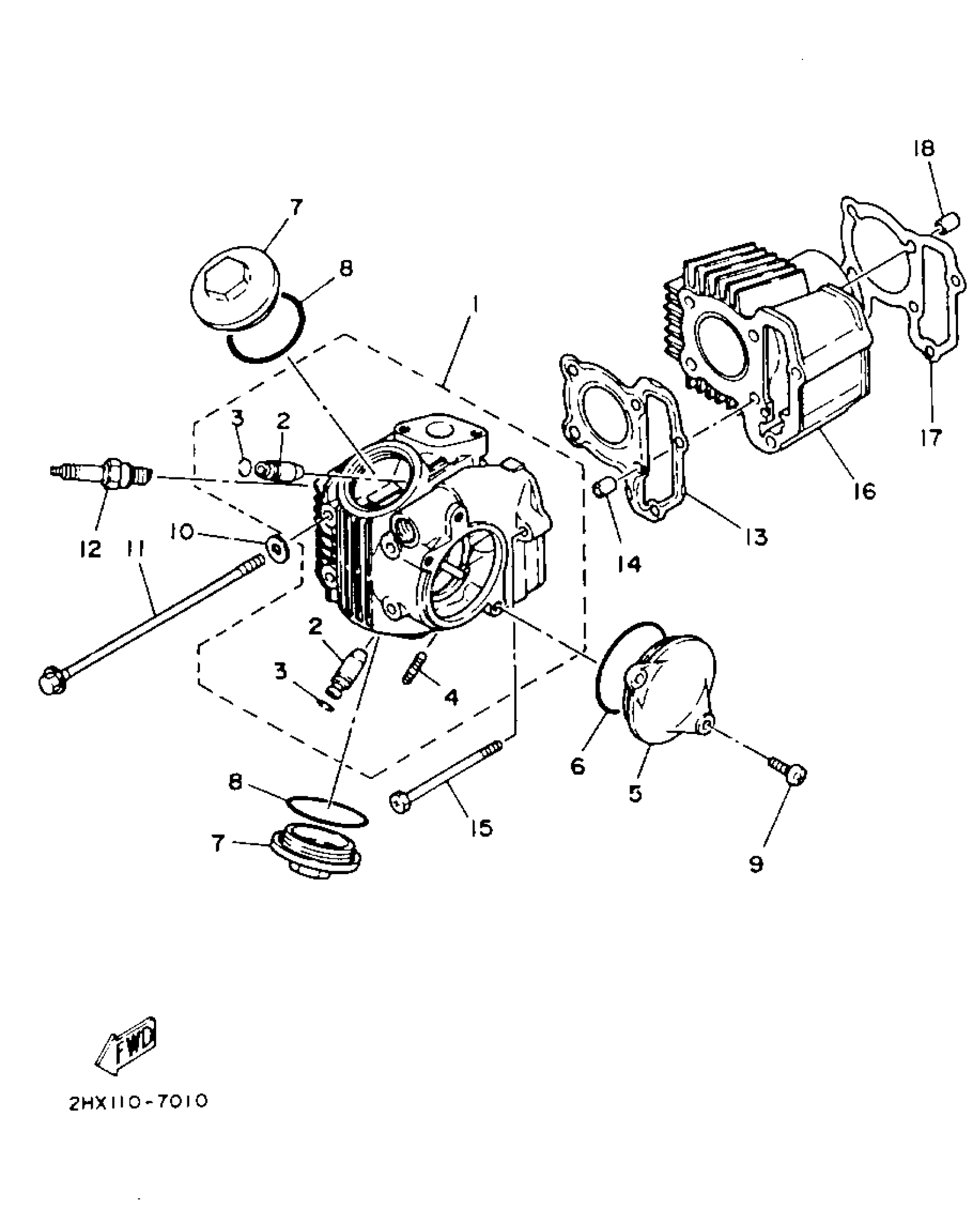

Yamaha YFM100W (CHAMP) 1989 CYLINDER HEAD - CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

2HX-11110-00-00

Unavailable

2

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$71.87

3

CIRCLIP (22F)

93440-10109-00

$5.29

4

BOLT

22F-14651-00-00

$5.70

5

COVER, CYLINDER HEAD SIDE 1

50M-11185-10-00

Unavailable

6

O-RING (22F)

93210-63556-00

$6.49

7

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$17.22

8

O-RING(55X)

93210-44704-00

$5.34

9

SCREW, PAN

98507-06014-00

$5.76

10

WASHER, PLATE

90201-072L3-00

Unavailable

11

BOLT, WASHER BASED

90105-07458-00

Unavailable

12

C7HSA NGK 4PK

C7H-SA000-00-00

Unavailable

13

GASKET, CYLINDER HEAD 1

2HX-11181-00-00

Unavailable

14

PIN, DOWEL(3VD)

99530-10114-00

$2.13

15

BOLT, FLANGE(4NM)

95027-06085-00

$6.39

16

CYLINDER 1

2HX-11311-00-00

Unavailable

17

GASKET, CYLINDER

3GB-11351-00-00

Unavailable

18

PIN, DOWEL

91809-14004-00

Unavailable
