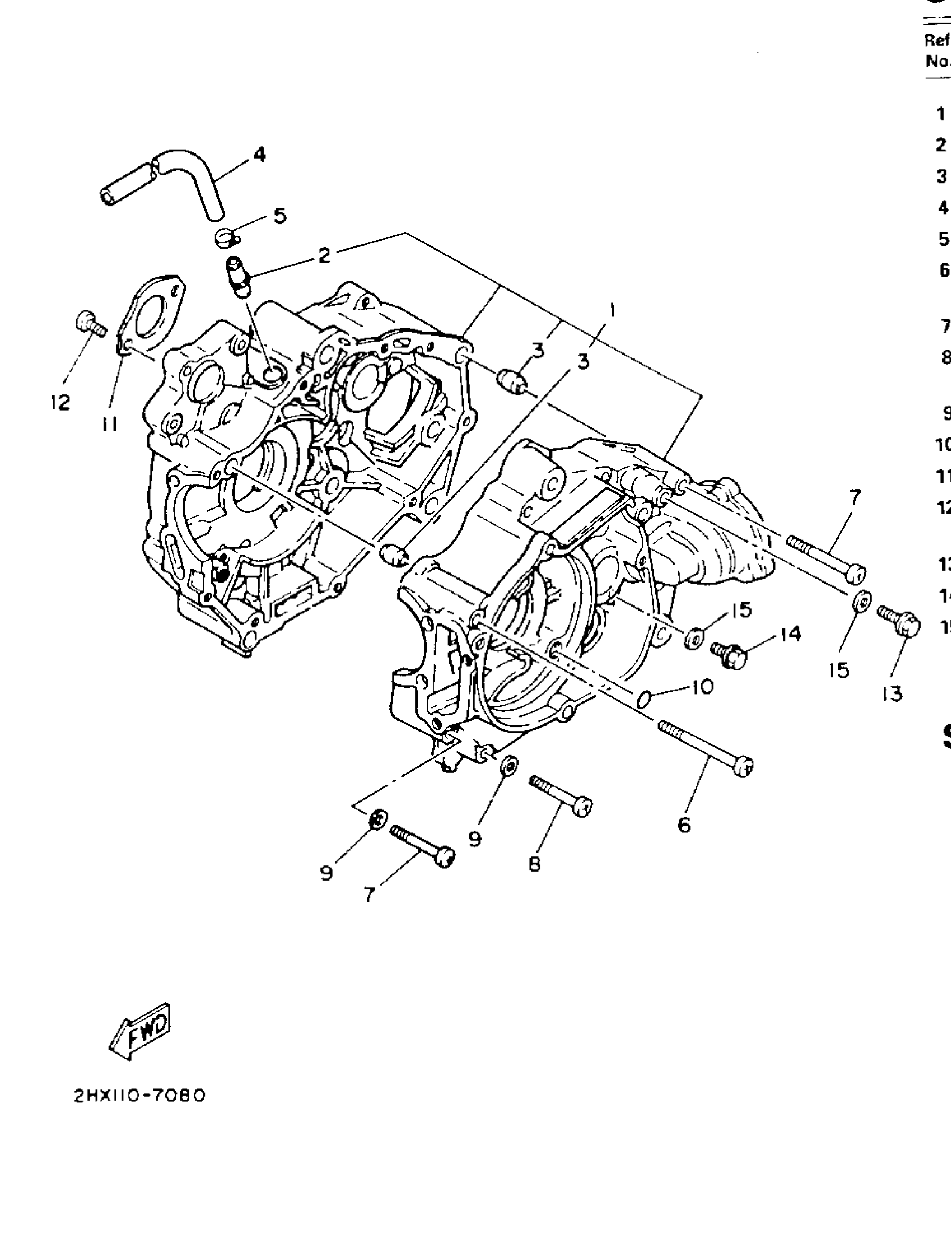

Yamaha YFM100W (CHAMP) 1989 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

2HX-15100-00-00

Unavailable

2

PIPE, BREATHER 2

59V-11167-00-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$3.85

4

HOSE (L700)

90445-121F6-00

Unavailable

5

CLIP(3YX)

90467-13133-00

$4.92

6

SCREW PAN HEAD

98580-06575-00

$10.79

7

SCREW, BIND (JH1)

98580-06560-00

Unavailable

8

SCREW PAN HEAD

98580-06545-00

$5.55

9

GASKET 256113960000

90430-06014-00

Unavailable

10

O-RING (11M)

93210-07540-00

$5.39

11

PLATE, BEARING COVER

22F-15383-01-00

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

13

BOLT, FLANGE

95822-06025-00

$1.37

14

BOLT, FLANGE

95817-06016-00

$1.40

15

GASKET (4V2)

90430-06166-00

$3.22
