1962 Yamaha YDS2_63 (YDS2) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1962 Yamaha YDS2_63 (YDS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

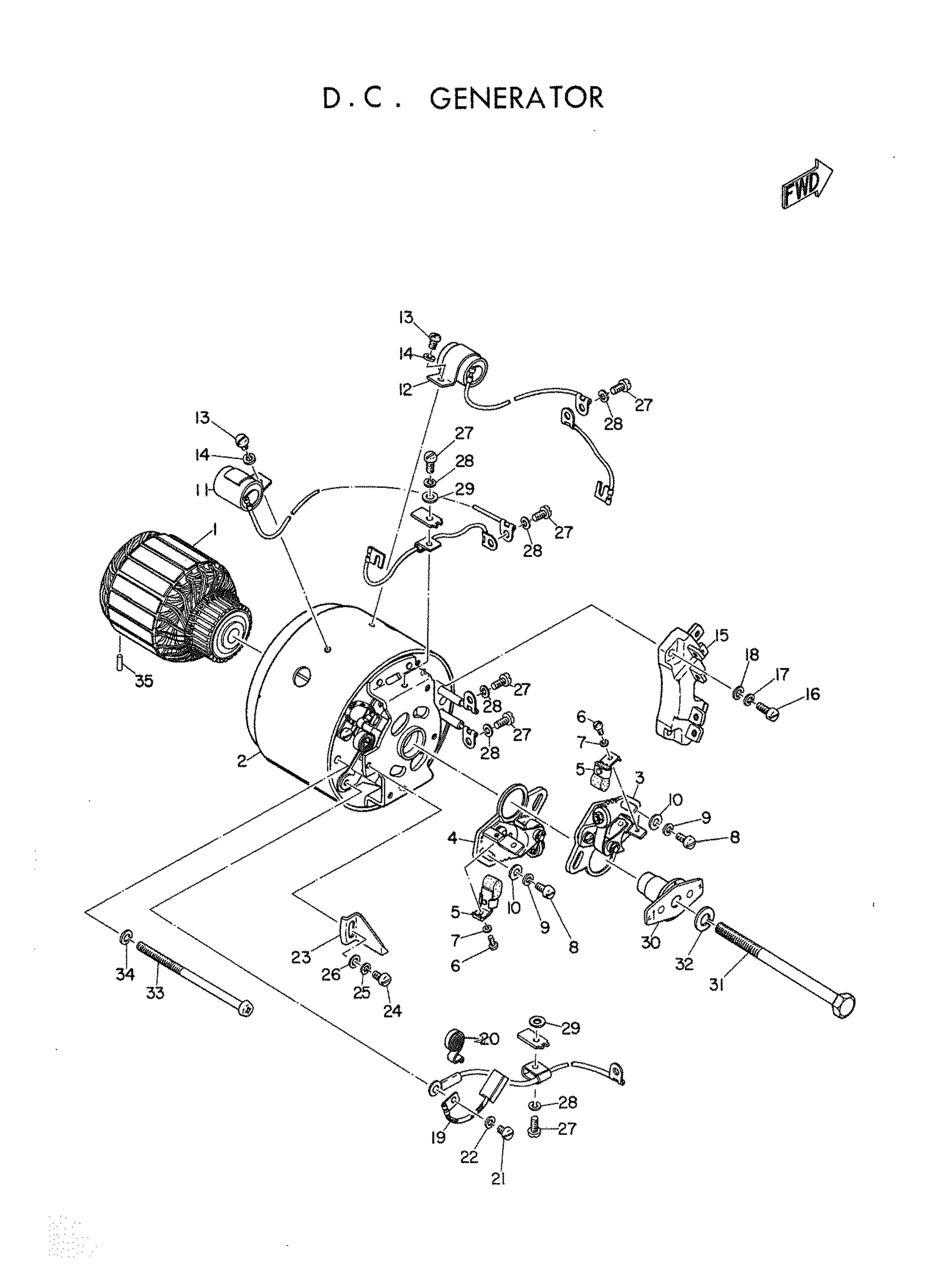

1962 Yamaha YDS2_63 (YDS2) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARMATURE

156-81255-21-00

1
Out of stock

2

STATOR ASSEMBLY

156-81210-20-00

1
Out of stock

3

CONTACT BRKR ASY

156-81222-21-00

1
Out of stock

4

CONTACT BRKR ASY

156-81221-21-00

1
Out of stock

5

LUBRICATOR

156-81231-20-00

1
Out of stock

6

. SCREW

92503-03006-00

1
Out of stock

7

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

8

SCREW,PAN HEAD

164-81246-20-00

1
Out of stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

CONDENSER 1

156-81125-20-00

1
Out of stock

12

CONDENSER 2

156-81126-20-00

1
Out of stock

13

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

TERMINAL

156-81218-20-00

1
Out of stock

16

SCREW, PAN HEAD

92501-04010-00

1
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

18

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

19

BRUSH

156-81211-20-00

1
Out of stock

20

SPRING, BRUSH

156-81213-20-00

1
Out of stock

21

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock

22

BRUSH

156-81211-20-00

1
Out of stock

23

PLATE, TIMING

156-81232-20-00

1
Out of stock

24

SCREW,PAN HEAD

164-81246-20-00

1
Out of stock

25

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

26

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

27

SCREW, PAN HEAD

92501-04008-00

1
Out of stock

28

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

29

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

30

CAM

156-81251-20-00

1
Out of stock

31

BOLT

156-81252-20-00

1
Out of stock

32

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

33

SCREW, STATOR

156-81235-20-00

1
Out of stock

34

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

35

PIN, DOWEL

93603-14026-00

—
Out of stock
