1962 Yamaha YDS2_63 (YDS2) Electrical Diagram

← All diagrams

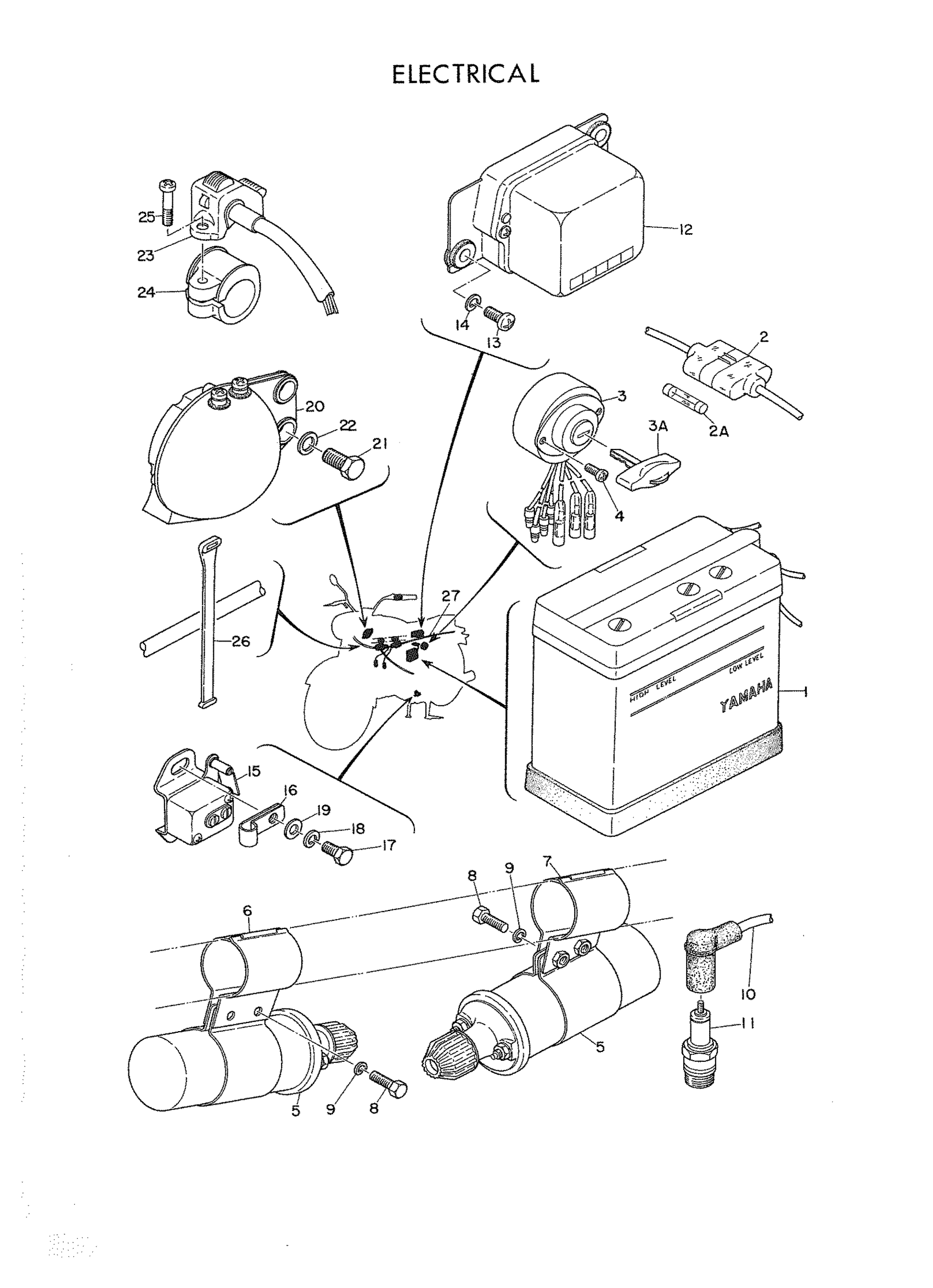

Find the part on the Electrical diagram for your 1962 Yamaha YDS2_63 (YDS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1962 Yamaha YDS2_63 (YDS2) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

6N7.5-5A

150-82110-29-00

1
Out of stock

2

FUSE HOLDER ASSY

150-82150-00-00

1
Out of stock

2

FUSE

1A0-82161-00-00

1
Out of stock

3

MAIN SWITCH ASSY

152-82510-00-00

1
Out of stock

3

. KEY

152-82511-00-00

1
Out of stock

4

SCREW, FLAT

98707-04010-00

1
Out of stock

5

IGNITION COIL ASSY

152-82310-20-00

1
Out of stock

6

HOLDER, COIL FITTING

150-82312-00-00

1
Out of stock

7

HOLDER COIL FITTING

150-82322-00-00

1
Out of stock

8

BOLT, HEXAGON

97313-05016-00

1
Out of stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

CORD, HIGH TENSION

150-82341-00-00

1
Out of stock

11

PLUG, SPARK

94701-00040-00

1
Out of stock

12

VOLTAGE REG ASY

156-81910-20-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

STOP SWITCH

150-82530-00-00

1
Out of stock

16

CLAMP, WIRE

152-21338-00-00

1
Out of stock

17

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

HORN

152-83371-00-00

1
Out of stock

21

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

SWITCH,HANDLE 2

150-83975-09-00

1
Out of stock

24

HOLDER, HANDLE SWCH

214-83974-00-00

1
Out of stock

25

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

26

BAND

150-82591-00-00

1
Out of stock

27

WIRE HARNESS ASSY

152-82590-10-00

1
Out of stock
