1968 Yamaha YCS1C (YCS1C) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1968 Yamaha YCS1C (YCS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

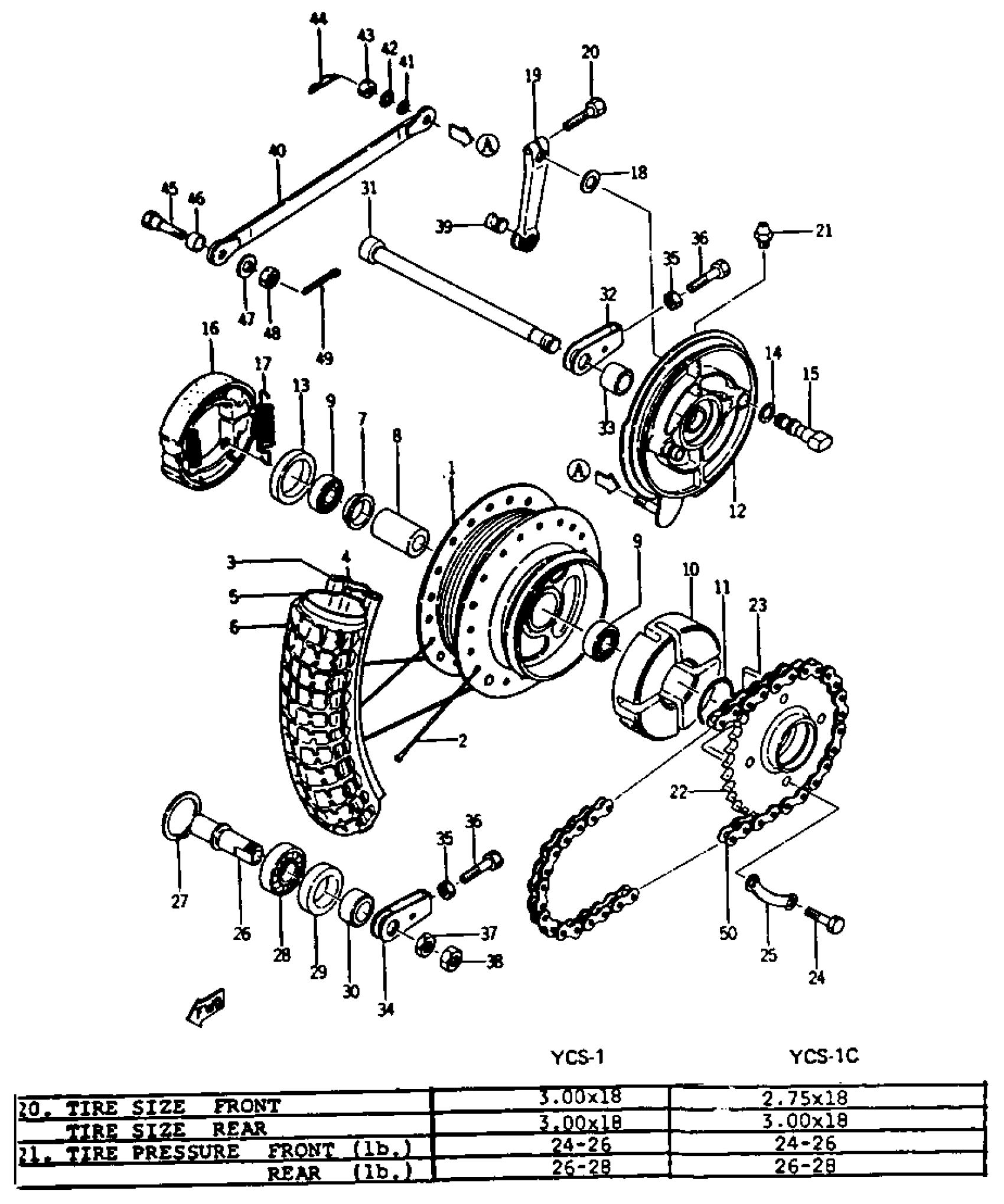

1968 Yamaha YCS1C (YCS1C) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(174-25311-00-00)

1
Out of stock

1

BRAKE SHOE KIT

3GW-W253A-00-00

1
Out of stock

2

SPOKE SET, REAR

(141-25304-00-00)

1
Out of stock

3

RIM 1.60X18

(94416-18016-00)

1
Out of stock

4

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

5

TUBE

(94227-18010-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

275X18 YOKO Y93C

(94127-18312-00)

1
Out of stock

6

300X18 DUNLOP K-70

(94130-18038-00)

1
Out of stock

7

FLANGE, SPACER

146-25116-00-00

1
Out of stock

8

SPACER 136253170000

90560-15136-00

—

$17.45

In stock

9

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

10

. DAMPER

174-25364-00-00

1
Out of stock

11

O-RING (132)

93210-41042-00

1

$5.72

In stock

12

BRAKE SHOE PLATE ASSY

(397-25320-10-00)

1
Out of stock

13

OIL SEAL, S-TYPE

93101-42018-00

1
Out of stock

14

SHIM, CAMSHAFT

(136-25153-00-00)

1
Out of stock

15

CAMSHAFT

(136-25351-01-00)

1
Out of stock

16

BRAKE SHOE KIT

3GW-W253A-00-00

1
Out of stock

17

—

$8.09

In stock

18

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

19

LEVER, CAM SHAFT

122-25355-00-00

—
Out of stock

20

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

21

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

22

SPROCKET, DRIVN 35T

(174-25435-20-00)

1
Out of stock

22

SPROCKET, DRIVN 37T

(174-25437-20-33)

1
Out of stock

22

SPROCKET,DRIVN 39T

174-25439-20-00

1
Out of stock

22

SPROCKET, DRIVN 40T

(174-25440-20-33)

1
Out of stock

23

CLUTCH, HUB

(174-25366-01-00)

1
Out of stock

23

CLUTCH, HUB

(174-25366-01-00)

1
Out of stock

24

BOLT, WASHER BASED

90105-10005-00

1
Out of stock

25

WASHER

148-25412-00-00

1
Out of stock

26

AXLE, SPROCKET

(174-25387-00-00)

1
Out of stock

27

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

27

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

28

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

28

BEARING (22K)

93306-20446-00

—
Out of stock

29

OIL SEAL (30X42X8-102)

93106-30004-00

—

$10.98

In stock

29

OIL SEAL, DD-TYPE

(93106-30008-00)

1
Out of stock

30

COLLAR, SPRKT AXLE

(174-25386-00-00)

1
Out of stock

30

COLLAR

(90387-20160-00)

1
Out of stock

31

AXLE, WHEEL

(397-25381-00-00)

1
Out of stock

32

PULLER, CHAIN 2

(174-25389-00-00)

1
Out of stock

33

COLLAR

(90387-26197-00)

1
Out of stock

34

PULLER, CHAIN 1

174-25388-00-00

1
Out of stock

35

NUT(650)

95380-06700-00

—

$6.17

In stock

36

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

37

NUT, HEXAGON

90170-20167-00

—
Out of stock

38

NUT

(95303-14600-00)

1
Out of stock

39

PIN 1562723700

90249-12008-00

—

$4.70

In stock

40

BAR, TENSION

(174-25371-00-00)

1
Out of stock

41

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

42

—

$3.00

In stock

43

NUT (682)

95380-10700-00

1

$5.78

In stock

44

CLIP 136253750000

90468-12006-00

—

$5.10

In stock

45

BOLT

(90109-08068-00)

1
Out of stock

46

SPRING, TENSION BAR

(174-25374-00-00)

1
Out of stock

47

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

48

NUT(6L2)

95333-08600-00

—

$3.20

In stock

49

PIN, COTTER

91490-20025-00

—

$1.31

In stock

50

UNAVAILABLE IN PRICE BOOK

50A--

1
Out of stock

50

UNAVAILABLE IN PRICE BOOK

50A--

1
Out of stock

50

CHAIN

(94514-28106-00)

1
Out of stock
