1968 Yamaha YCS1C (YCS1C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1968 Yamaha YCS1C (YCS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

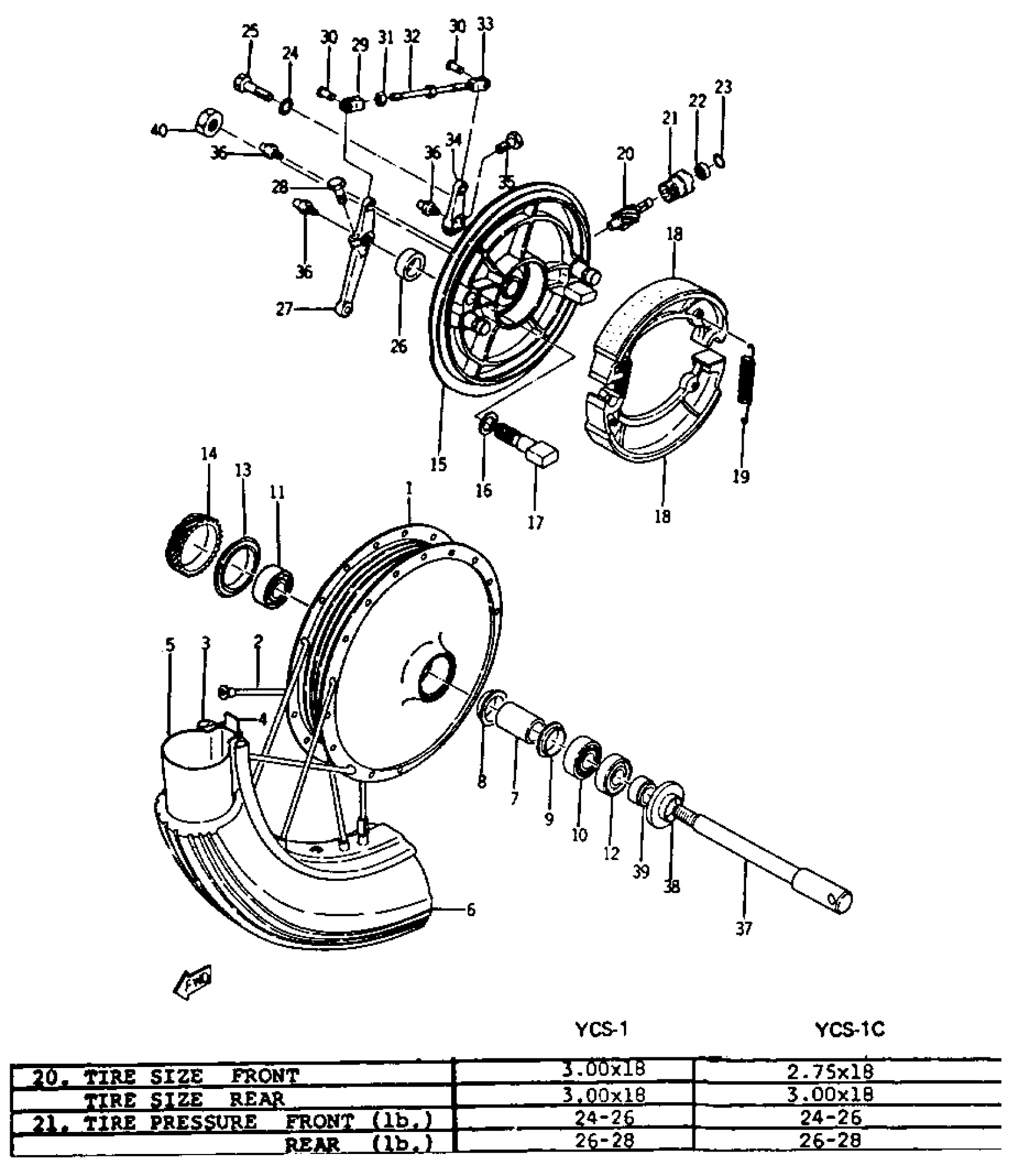

1968 Yamaha YCS1C (YCS1C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

END, ROD 1

152-25163-00-00

1
Out of stock

1

END, ROD 2

152-25164-00-00

1
Out of stock

1

FRONT WHEEL ASSEMBLY

(174-25101-00-00)

1
Out of stock

1

HUB, FRONT

(174-25111-00-00)

1
Out of stock

1

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

2

END, ROD 1

152-25163-00-00

1
Out of stock

2

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

3

RIM 1.60X18

(94416-18013-00)

1
Out of stock

4

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

5

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

5

TUBE

(94227-18010-00)

1
Out of stock

6

250X18 YOKO Y506

(94125-18311-00)

1
Out of stock

6

275X18 YOKO Y93C

(94127-18312-00)

1
Out of stock

7

SPACER 136253170000

90560-15136-00

—

$17.45

In stock

8

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

9

FLANGE, SPACER

146-25116-00-00

—
Out of stock

10

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

—

$21.28

In stock

11

BEARING

93306-30212-00

—

$33.35

In stock

12

OIL SEAL, SD-TYPE

(93102-22027-00)

1
Out of stock

13

OIL SEAL, OS-TYPE

(93107-50003-00)

1
Out of stock

14

GEAR, DRIVE

(174-25135-00-00)

1
Out of stock

15

PLATE, BRAKE SHOE

(174-25121-00-00)

1
Out of stock

16

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

17

CAMSHAFT

(168-25151-00-00)

1
Out of stock

18

BRAKESHOE SET-2PCS

168-W2535-00-00

1
Out of stock

19

—

$8.09

In stock

20

GEAR, METER

(152-25138-00-00)

1
Out of stock

21

BUSHING

109-25136-00-00

—

$8.78

In stock

22

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

23

O-RING (26H)

93210-14579-00

—

$5.69

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

26

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

27

LEVER,CAMSHAFT 1

168-25155-00-00

1
Out of stock

28

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

29

END, ROD 1

152-25163-00-00

1
Out of stock

30

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

31

NUT(650)

95380-06700-00

—

$6.17

In stock

32

ROD, CONNECTING

(152-25161-00-00)

1
Out of stock

33

END, ROD 2

152-25164-00-00

1
Out of stock

34

LEVER, CAMSHAFT 2

(168-25156-00-00)

1
Out of stock

35

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

36

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

37

AXLE, WHEEL

(141-25181-00-00)

1
Out of stock

38

COVER, HUB DUST

(174-25118-00-00)

1
Out of stock

39

COLLAR

(90387-15421-00)

1
Out of stock

40

NUT

(95303-14600-00)

1
Out of stock
