1968 Yamaha YCS1C (YCS1C) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1968 Yamaha YCS1C (YCS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

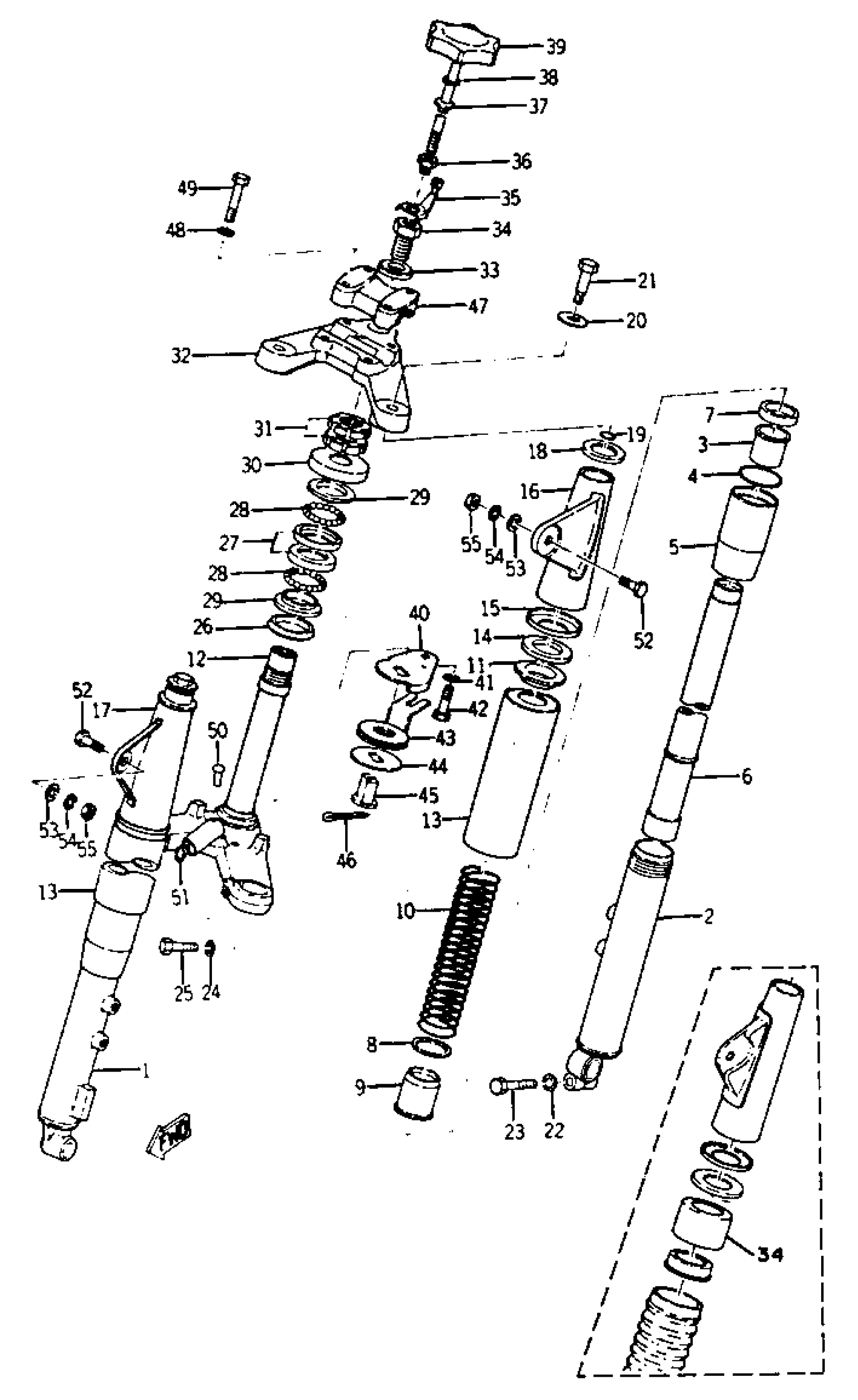

1968 Yamaha YCS1C (YCS1C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 2

(174-23136-00-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(193-23100-00-29)

1
Out of stock

1

FRONT FORK ASSEMBLY

(193-23100-00-33)

1
Out of stock

1

FRONT FORK ASSEMBLY

(193-23100-00-63)

1
Out of stock

1

BOOT, FRONT FORK

(193-23191-40-00)

1
Out of stock

2

TUBE, OUTER 1

(174-23126-00-00)

1
Out of stock

3

. METAL, SLIDE 1

(137-23125-01-00)

1
Out of stock

4

. O-RING

137-23147-00-00

1
Out of stock

5

OUTER NUT

(193-23150-00-00)

1
Out of stock

6

TUBE, INNER 1

(174-23124-00-00)

1
Out of stock

7

OIL SEAL

137-23145-01-00

1

$38.06

In stock

8

WASHER, OIL SEAL

(174-23146-00-00)

1
Out of stock

9

. SEAT, SPRING LOWER

(137-23143-00-00)

1
Out of stock

10

SPRING, FRONT FORK

(174-23141-00-00)

1
Out of stock

11

SEAT, SPRING UPPER

(174-23142-00-00)

1
Out of stock

11

SEAT, SPRING UPPER

(193-23142-40-00)

1
Out of stock

12

UNDER BRACKET

(174-23340-00-33)

1
Out of stock

13

COVER, LOWER 1

(174-23123-00-81)

1
Out of stock

14

GASKET

(174-23163-00-00)

1
Out of stock

14

GASKET

(193-23163-00-00)

1
Out of stock

15

GUIDE, COVER LOWER

(174-23116-00-00)

1
Out of stock

16

UNAVAILABLE IN PRICE BOOK

174-23121-00-29

1
Out of stock

16

UNAVAILABLE IN PRICE BOOK

193-23121-00-33

1
Out of stock

16

COVER, UPPER 1

(193-23121-00-63)

1
Out of stock

16

COVER, UPPER 1

(193-23121-00-81)

1
Out of stock

16

COVER, UPPER 1

(193-23121-00-81)

1
Out of stock

16

COVER, UPPER 1

(193-23121-00-81)

1
Out of stock

16

COVER, UPPER 1

(193-23121-00-81)

1
Out of stock

17

UNAVAILABLE IN PRICE BOOK

174-23131-00-29

1
Out of stock

17

COVER, UPPER 2

(193-23131-00-29)

1
Out of stock

17

COVER, UPPER 2

(193-23131-00-33)

1
Out of stock

17

COVER, UPPER 2

(193-23131-00-33)

1
Out of stock

17

COVER, UPPER 2

(193-23131-00-63)

1
Out of stock

18

GUIDE, COVER UPPER

(174-23115-00-00)

1
Out of stock

19

. GASKET

(137-23114-00-00)

1
Out of stock

20

. WASHER, CAP

(137-23112-00-00)

1
Out of stock

21

. BOLT, CAP

(137-23111-00-00)

1
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

25

BOLT 1

122-23346-02-00

—

$6.25

In stock

26

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

27

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

28

BALL

93501-04011-00

—
Out of stock

29

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

30

COVER, BALL RACE

136-23415-00-00

—

$7.71

In stock

31

NUT

90179-25004-00

—

$20.78

In stock

32

CROWN, HANDLE

(174-23435-00-00)

1
Out of stock

33

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

34

BOLT, UNION

(90401-16019-00)

1
Out of stock

35

SPRING

(174-23428-00-00)

1
Out of stock

36

GUIDE, DAMPER

(174-23424-00-00)

1
Out of stock

37

WASHER, PLATE 1412342700

90202-06008-00

—

$3.91

In stock

38

WASHER, PLATE

90201-06061-00

1
Out of stock

39

SHAFT, DAMPER

(174-23419-00-00)

1
Out of stock

40

PLATE, DAMPER 1

(174-23421-00-00)

1
Out of stock

41

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

42

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

43

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

44

DAMPER, FRICTION

(174-23425-00-00)

1
Out of stock

45

NUT, SPEC''L SHAPE

(90179-06032-00)

1
Out of stock

46

PIN, COTTER

(156-23433-00-00)

1
Out of stock

47

HOLDER, HANDLE UPR

(174-23441-00-00)

1
Out of stock

48

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

49

BOLT

97013-08035-00

—

$4.80

In stock

50

RIVET

(122-23483-00-00)

1
Out of stock

51

STEERING LOCK ASSEMBLY

(156-23480-00-00)

1
Out of stock

52

BOLT (682)

97013-08025-00

—

$6.80

In stock

53

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

54

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

55

NUT(6L2)

95333-08600-00

—

$3.20

In stock

56

COVER, OUTER 1

(193-23122-40-00)

1
Out of stock
