1968 Yamaha YCS1C (YCS1C) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1968 Yamaha YCS1C (YCS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

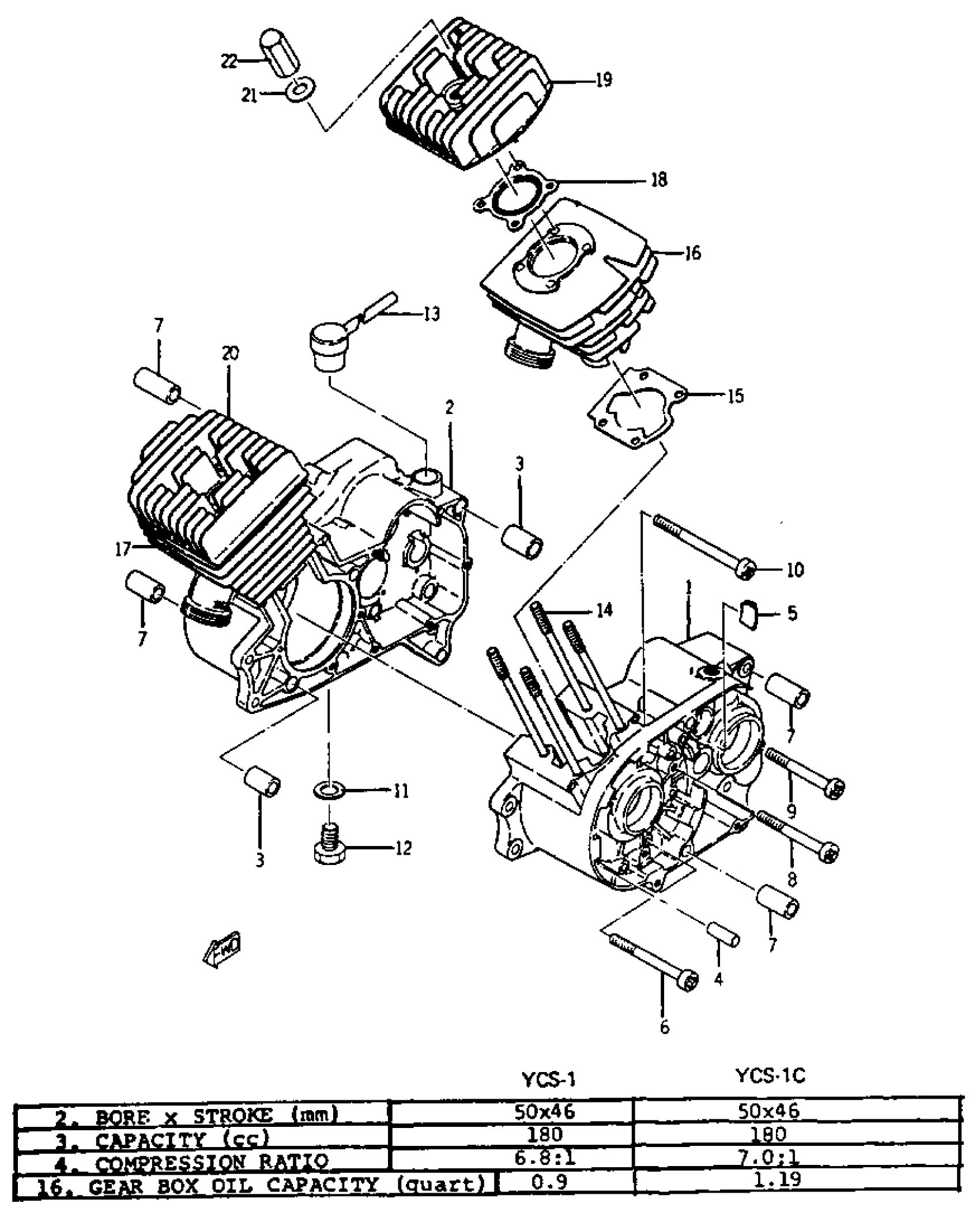

1968 Yamaha YCS1C (YCS1C) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(237-15111-00-00)

1
Out of stock

1

CRANKCASE 1

(237-15111-00-00)

1
Out of stock

1

CRANKCASE 1

(237-15111-00-00)

1
Out of stock

2

CRANKCASE 2

(237-15121-01-00)

1
Out of stock

2

CRANKCASE 2

(237-15121-01-00)

1
Out of stock

2

CRANKCASE 2

(237-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

PIN, DOWEL

93603-14026-00

1
Out of stock

5

GROMMET

(174-15357-01-00)

1
Out of stock

5

GROMMET

(241-15357-01-00)

1
Out of stock

6

SCREW, PAN

98507-06085-00

1

$5.17

In stock

7

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

8

SCREW, PAN

98507-06100-00

1

$6.80

In stock

9

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

10

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

11

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

12

—

$6.71

In stock

13

BREATHER

206-15371-00-00

1
Out of stock

13

BREATHER

583-15371-00-00

—
Out of stock

14

BOLT, STUD (174-11361-00)

90116-07033-00

1
Out of stock

15

GASKET, CYLINDER

174-11351-01-00

1
Out of stock

16

CYLINDER 1

(237-11311-00-00)

1
Out of stock

16

CYLINDER 1

(237-11311-00-00)

1
Out of stock

17

CYLINDER 2

(237-11321-00-00)

1
Out of stock

17

CYLINDER 2

(237-11321-00-00)

1
Out of stock

18

GASKET, CYLINDER HEAD 1

273-11181-00-00

1
Out of stock

19

HEAD, CYLINDER 1

(174-11111-00-00)

1
Out of stock

20

HEAD, CYLINDER 2

(174-11121-00-00)

1
Out of stock

21

WASHER, PLATE

90201-07077-00

1
Out of stock

22

CLAMP

(293-15485-00-00)

1
Out of stock

22

BREATHER

583-15371-00-00

—
Out of stock

22

NUT, CROWN (166-11171-60)

90176-07003-00

1
Out of stock

22

HOSE(7EG)

90446-07241-00

—

$7.42

In stock
