1968 Yamaha YCS1C (YCS1C) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1968 Yamaha YCS1C (YCS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

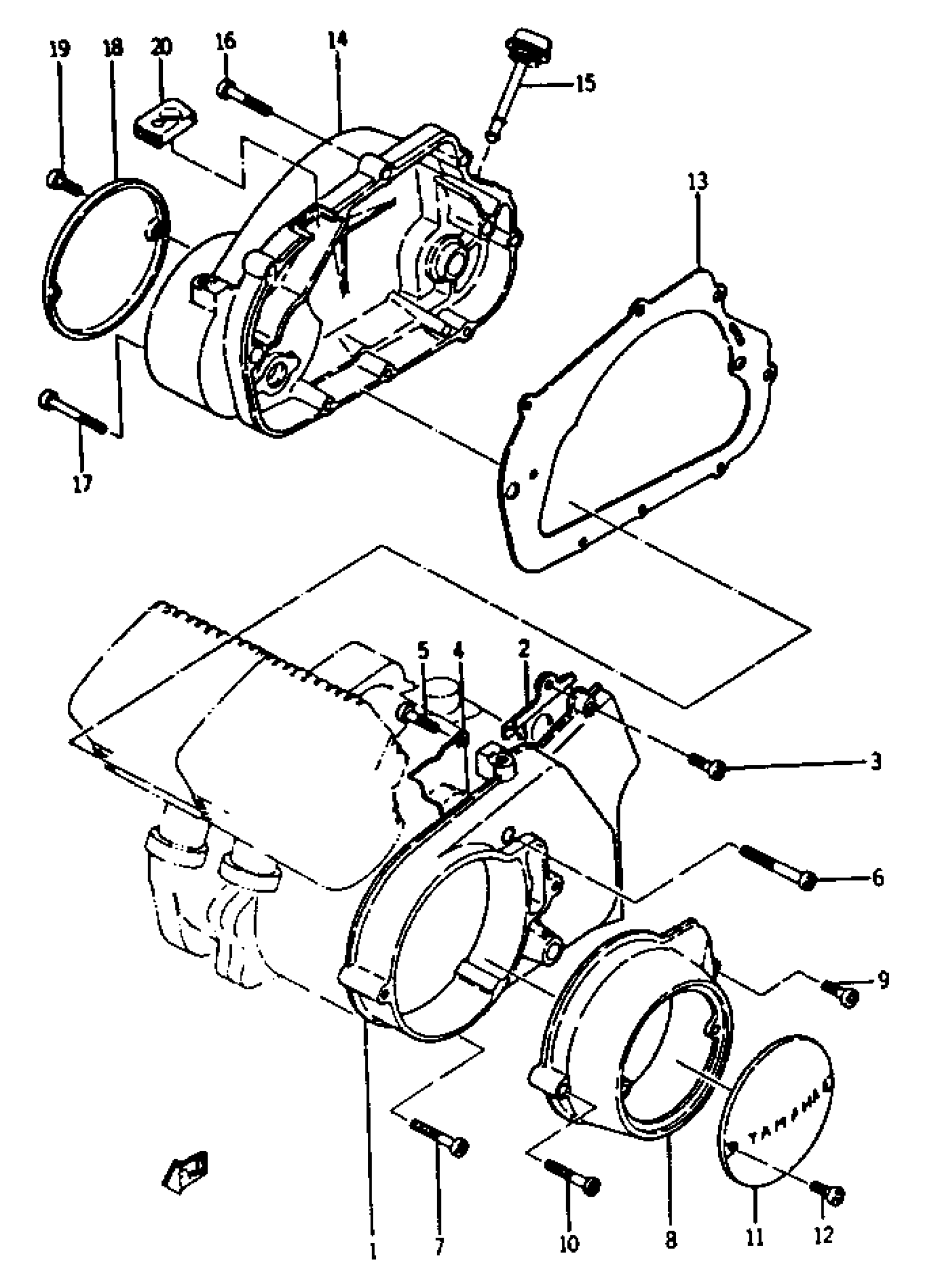

1968 Yamaha YCS1C (YCS1C) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRCS COVER ASSEMBLY L

237-15410-00-00

1
Out of stock

1

CRCS COVER ASSEMBLY L

237-15410-00-00

1
Out of stock

2

COVER, CHAIN CASE

(174-15418-00-00)

1
Out of stock

2

COVER, CHAIN CASE

(174-15418-01-00)

1
Out of stock

3

RIVET

(90266-06005-00)

1
Out of stock

3

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

4

SEAL, DUST

(174-18428-00-00)

1
Out of stock

5

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

6

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

7

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

8

COVER, GENERATOR R

(173-15425-01-00)

1
Out of stock

8

COVER, GENERATOR R

(173-15425-01-00)

1
Out of stock

9

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

10

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

11

COVER, GENERATOR (1)

164-15415-00-00

1

$22.02

In stock

12

SCREW, PAN HEAD

(164-81245-20-00)

1
Out of stock

12

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

13

GASKET, CRANKCASE 2

174-15324-00-00

1
Out of stock

14

COVER, CRANKCASE R

(237-15421-00-00)

1
Out of stock

14

COVER, CRANKCASE R

(237-15421-00-00)

1
Out of stock

14

COVER, CRANKCASE R

(237-15421-00-00)

1
Out of stock

15

PLUG, OIL

(174-15363-00-00)

1
Out of stock

16

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

17

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

18

COVER, OIL PUMP

(174-15416-00-00)

1
Out of stock

19

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

20

COVER, GENERATOR R

(237-15425-00-00)

1
Out of stock

20

ROD, PUSH 2

237-16357-01-00

1
Out of stock

20

GROMMET

(241-15357-01-00)

1
Out of stock

20

HOLDER, OIL PIPE

(293-13174-00-00)

1
Out of stock

20

CABLE, CLUTCH

396-26335-10-00

1
Out of stock

20

BOLT SET 241163430000

90113-06013-00

—
Out of stock

20

BOLT

90123-08002-00

—

$8.93

In stock

20

SCREW, PAN HEAD

98517-06140-00

1
Out of stock

20

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock
