1985 Yamaha XVZ12DN (XVZ12DN) Headlight Diagram

← All diagrams

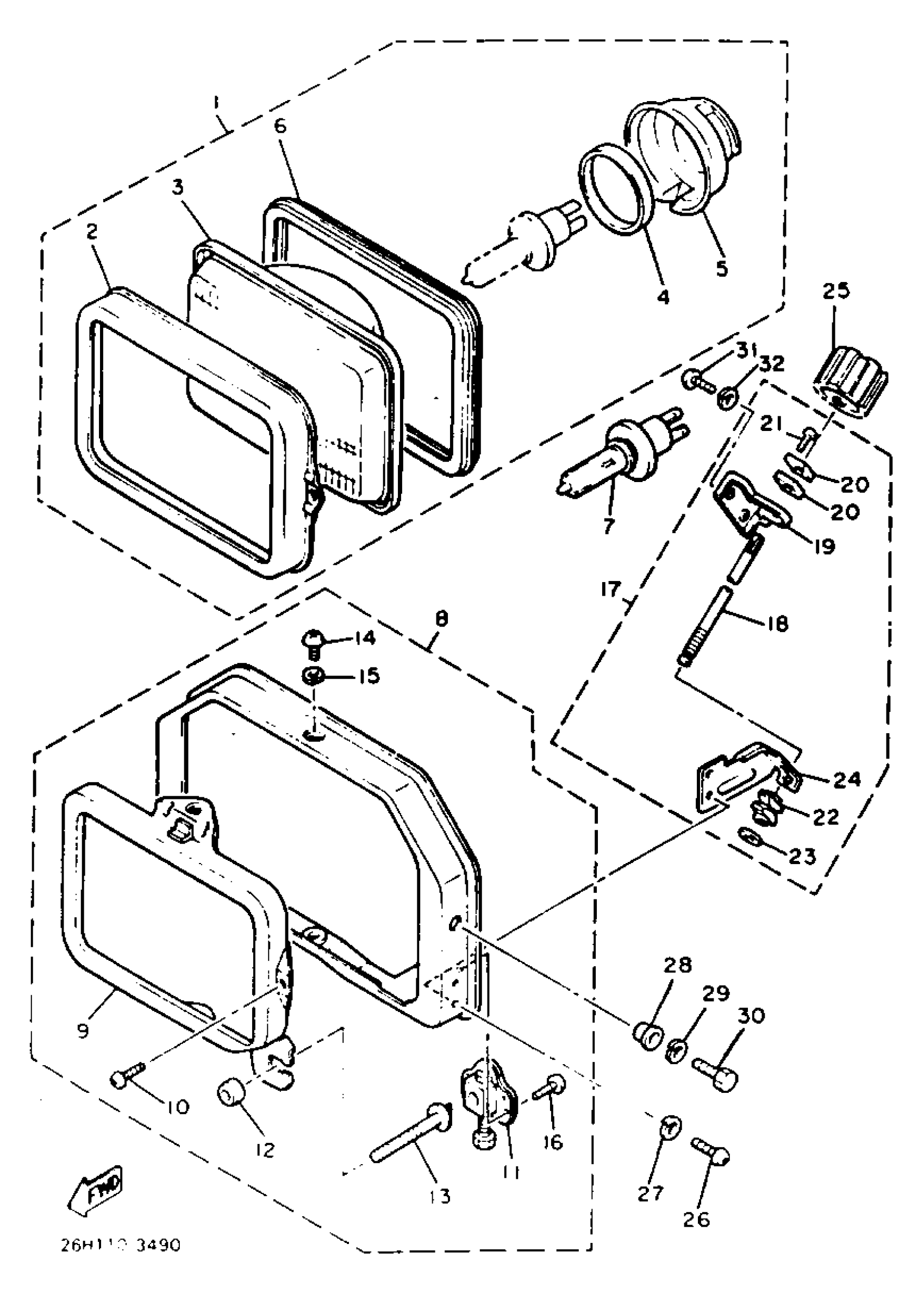

Find the part on the Headlight diagram for your 1985 Yamaha XVZ12DN (XVZ12DN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha XVZ12DN (XVZ12DN) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

26H-84303-00-00

1
Out of stock

2

. RIM, HEADLIGHT

26H-84315-00-00

1
Out of stock

3

. LENS, HEADLIGHT

26H-84321-00-00

1
Out of stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

5

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

6

. DAMPER, HEADLIGHT

26H-84345-00-00

1
Out of stock

7

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

8

BODY ASSEMBLY

26H-84330-00-00

1
Out of stock

9

. RING, MOUNTING

47-G8439-40-00

1
Out of stock

10

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

11

GEAR UNIT ASY

3LD-8430M-00-00

1
Out of stock

12

. NUT, ADJUSTING

26H-84334-00-00

1
Out of stock

13

BOLT, SPECIAL

(26H-84337-00-00)

1
Out of stock

14

. SCREW

438-84194-60-00

1
Out of stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

17

ROD ASSEMBLY

26H-8431M-00-00

1
Out of stock

18

. ROD

26H-8431N-00-00

1
Out of stock

19

. STAY, setting

26-H8431-R0-00

1
Out of stock

20

. HOLDER

26H-8431U-00-00

1
Out of stock

21

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

22

. NUT, ADJUSTING

26H-84334-00-00

1
Out of stock

23

. WASHER, special

26H-84327-00-00

1
Out of stock

24

. METAL, ADJUSTING

26H-8431T-00-00

1
Out of stock

25

KNOB ASSY

26H-8432M-00-00

—
Out of stock

26

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

28

SPACER

26H-84328-00-00

1
Out of stock

29

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

30

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

31

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

32

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock
