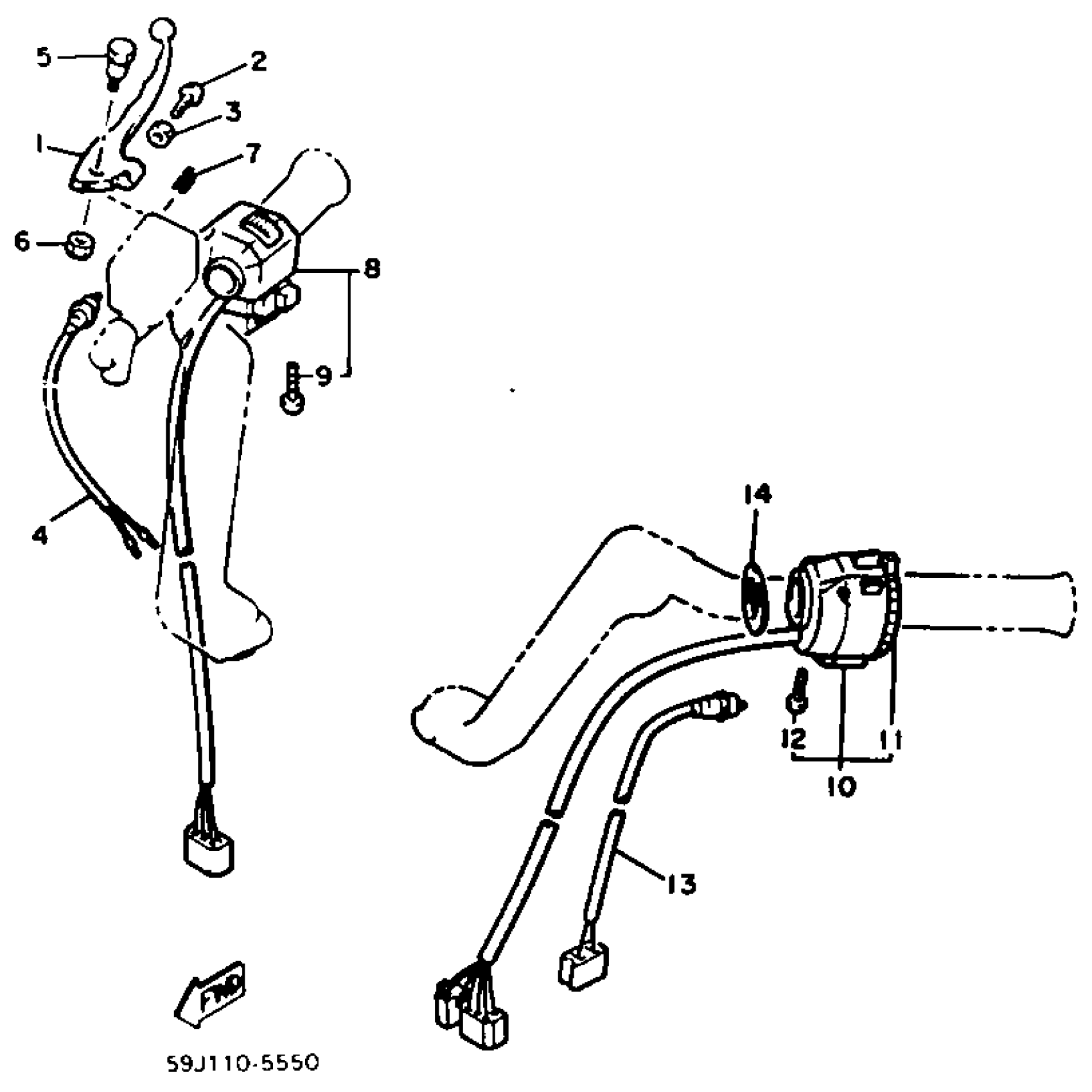

Yamaha XVZ12DN (XVZ12DN) 1985 HANDEL SWITCH LEVER Diagram

#

Description
Price

1

LEVER 2 (26H-83922-01)

26H-83922-10-00

Unavailable

2

SCREW (2L0)

90149-06131-00

$5.75

3

NUT HEXAGON 306839270000

90170-06010-00

$5.75

4

STOP SWITCH ASSY (41V-83980-00)

41V-83980-01-00

Unavailable

5

BOLT (4L0)

90109-06577-00

$5.03

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SPRING, COMPRESSION (2H7)

90501-10510-00

Unavailable

8

SWITCH, handle 3 RT (41V-83963-00)

41V-83963-01-00

Unavailable

9

SCREW, PAN

98507-05040-00

$6.22

10

SWITCH, HANDLE 3

54K-83973-00-00

Unavailable

11

. CHOKE RING ASSEMBLY

58L-83960-00-00

Unavailable

12

SCREW, PAN

98507-05035-00

$6.23

13

SWITCH (41V-82917-00)

41V-82917-01-00

Unavailable
