1985 Yamaha XVZ12DN (XVZ12DN) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1985 Yamaha XVZ12DN (XVZ12DN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

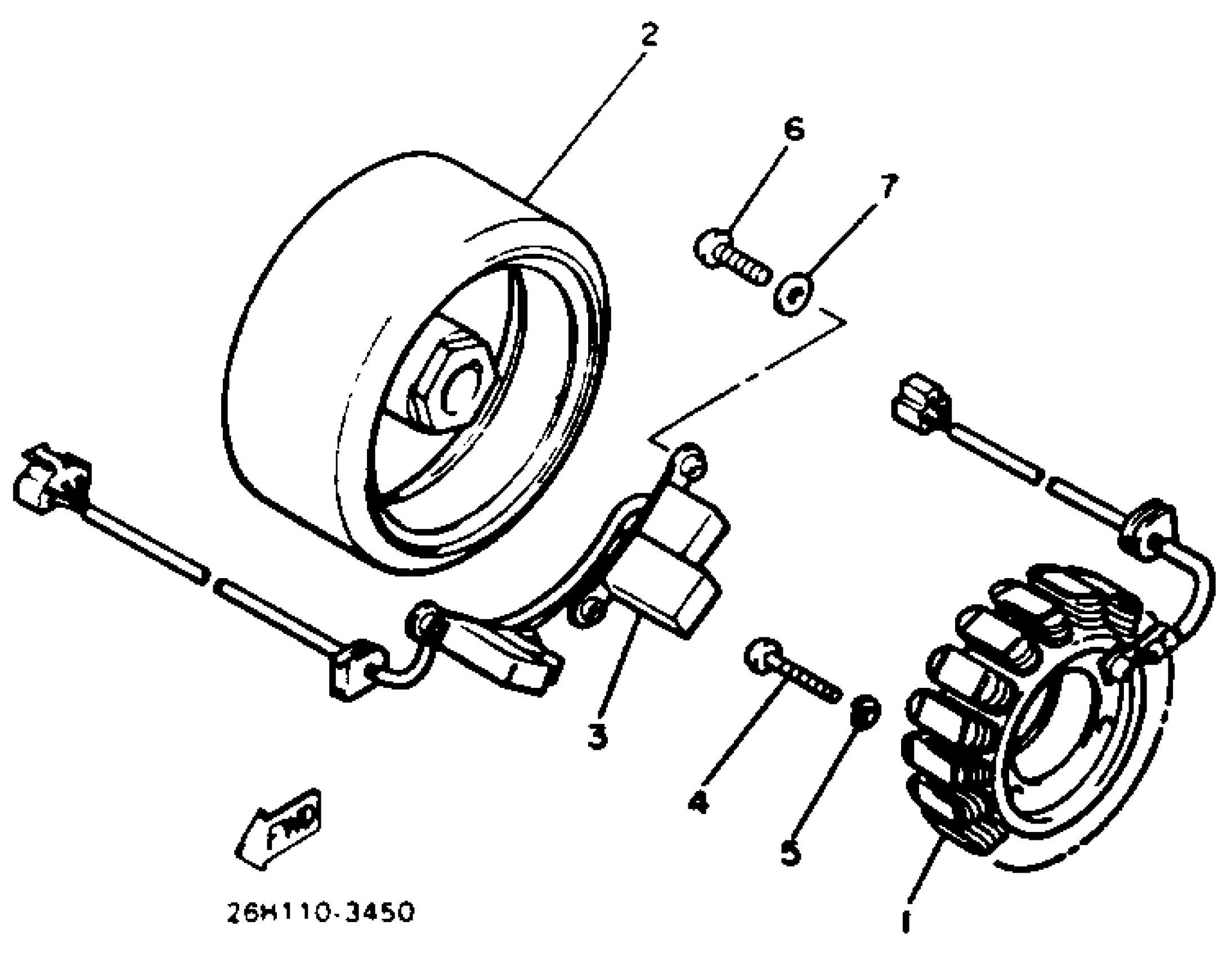

1985 Yamaha XVZ12DN (XVZ12DN) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY (26H-81410-10-00)

90-89130-01-50

1
Out of stock

2

ROTOR ASSEMBLY

26H-81450-10-00

1
Out of stock

3

PICK-UP ASSEMBLY

26H-81670-10-00

1
Out of stock

4

SCREW, PAN HEAD (98503-06045-00)

98580-06045-00

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

SCREW, PAN

98507-06014-00

1

$6.18

In stock

7

WASHER, PLATE

90201-06045-00

1

$6.18

In stock
