2016 Yamaha Bolt C Spec CA (XVS95CRGC) Steering Diagram

← All diagrams

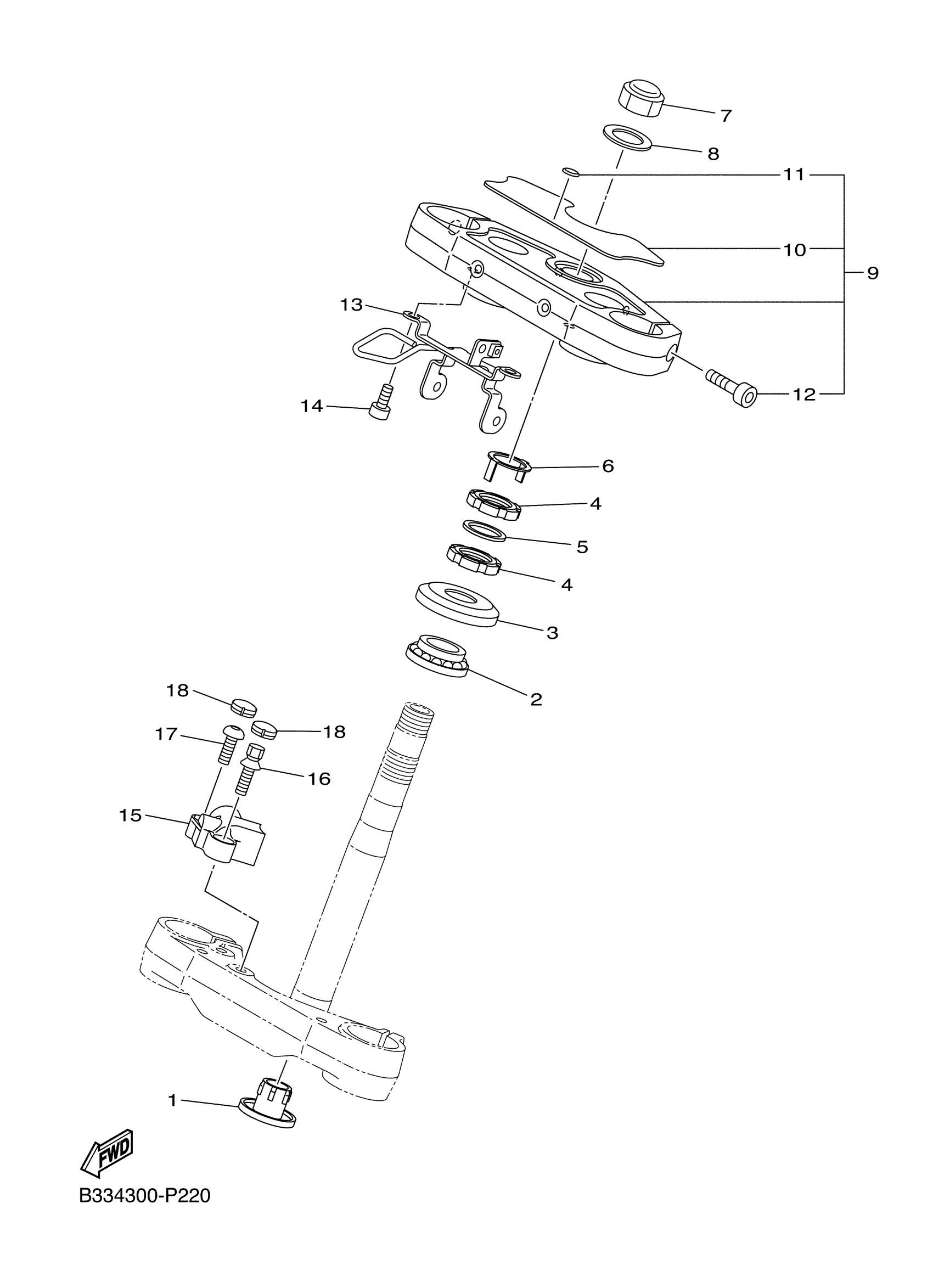

Find the part on the Steering diagram for your 2016 Yamaha Bolt C Spec CA (XVS95CRGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Bolt C Spec CA (XVS95CRGC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, LOWER 1

4KM-23123-01-00

1

$12.27

In stock

2

BEARING(3FV)

93399-99931-00

1

$49.35

In stock

3

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

WASHER, PLATE (26H)

90202-26142-00

1

$8.06

In stock

6

WASHER, SPECIAL

26H-23418-01-00

1

$12.68

In stock

7

NUT, CROWN

90176-22002-00

1

$28.70

In stock

8

WASHER, PLATE

90201-22018-00

1

$4.11

In stock

9

CROWN, HANDLE

B33-Y2343-00-00

—
Out of stock

10

PLATE

B33-23774-00-00

—
Out of stock

11

TUNING FORK MARK

14B-2836B-00-00

—

$10.32

In stock

12

BOLT,SOCKET

91314-08030-00

1

$2.29

In stock

13

GUIDE, CABLE

B33-23389-00-00

—
Out of stock

14

BOLT, SOCKET

91317-08016-00

1

$6.17

In stock

15

STEERING LOCK ASSY

1TP-23408-00-00

—

$121.34

In stock

16

BOLT

90109-08196-00

—

$6.18

In stock

17

SCREW

90149-08002-00

—

$7.38

In stock

18

CAP, HANDLE LOCK

1TP-23484-00-00

—

$3.54

In stock
