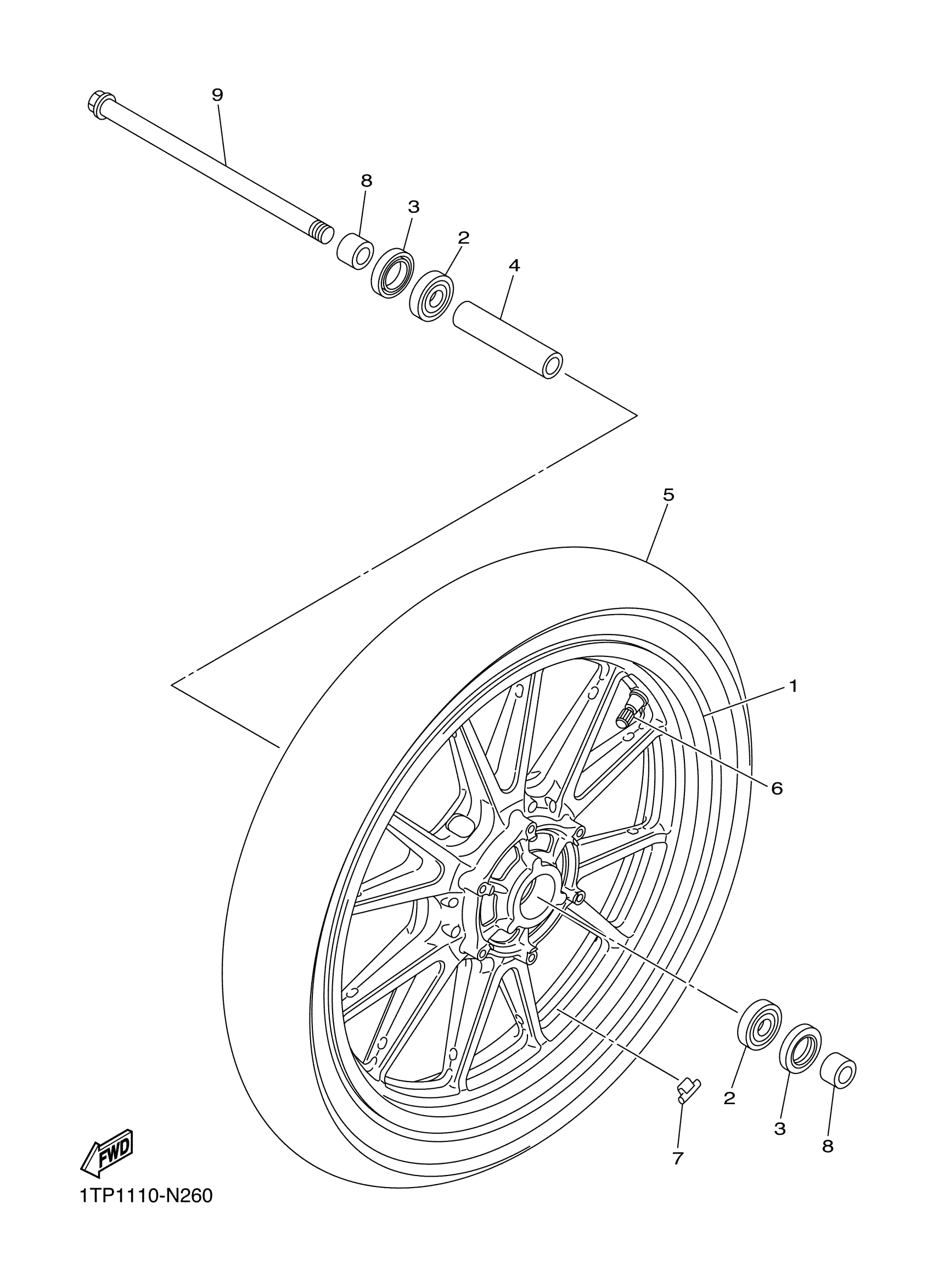

Yamaha XVS95CRGC (BOLT C SPEC CA) B33C 2016 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

1TP-25168-10-4X

Unavailable

2

BEARING(4HM)

93306-30317-00

$32.19

3

OIL SEAL (28X47X7-102)

93102-28022-00

$11.79

4

COLLAR (4H7)

90387-172A5-00

$19.23

6

VALVE, RIM(2GH)

93900-00030-00

$13.50

7

BALANCER, WHEEL

5MT-25398-00-00

$14.51

7

BALANCER, WHEEL

5MT-25398-10-00

$14.35

7

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

8

COLLAR(1UR)

90387-173R6-00

$22.97

9

AXLE, WHEEL

3MA-25181-10-00

$51.86
