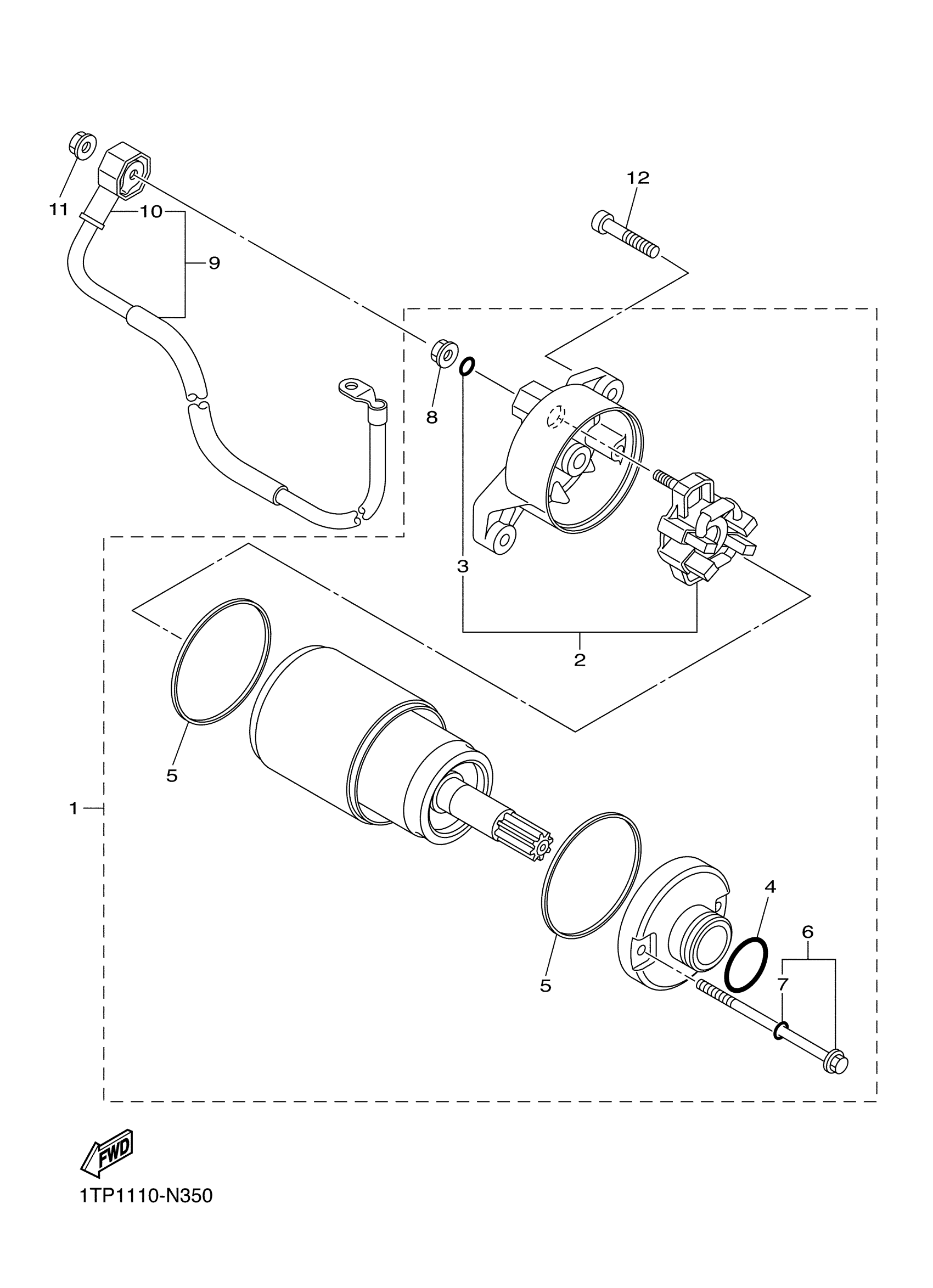

Yamaha XVS95CRGC (BOLT C SPEC CA) B33C 2016 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

1TP-81890-01-00

$323.46

2

BRUSH HOLDER ASSY

4B5-81840-00-00

$94.12

3

.. O-RING

3TB-81847-00-00

$2.27

4

O-RING (437)

93210-24235-00

$5.34

5

GASKET

35C-81844-00-00

Unavailable

6

BOLT

28P-81826-00-00

Unavailable

7

.. O-RING

3TB-81847-00-00

$2.27

8

NUT

4XV-8182A-00-00

$5.86

9

CORD, STARTER MOTOR

1TP-81815-00-00

$58.17

10

CAP

4B5-81871-00-00

Unavailable

11

NUT

4XV-8182A-00-00

$5.86

12

BOLT, SOCKET

91314-06030-00

$5.75
