2016 Yamaha Bolt C Spec CA (XVS95CRGC) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 2016 Yamaha Bolt C Spec CA (XVS95CRGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

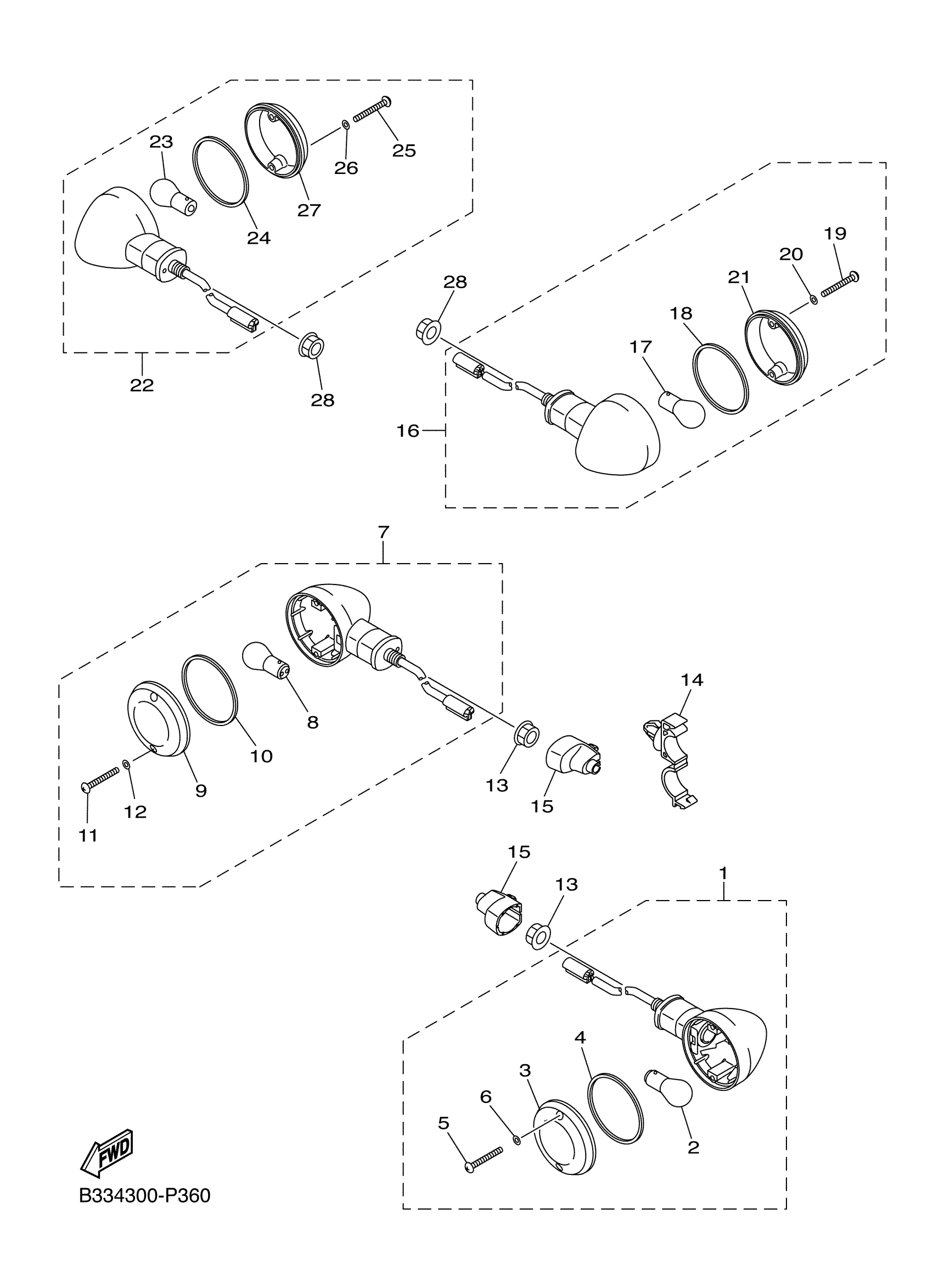

2016 Yamaha Bolt C Spec CA (XVS95CRGC) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGH

B33-83310-00-00

1
Out of stock

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

1
Out of stock

3

LENS, FLASHER

5PX-83312-10-00

1
Out of stock

4

GASKET, FLASHER LENS

5PX-83313-00-00

1
Out of stock

5

SCREW, TAPPING

97704-40625-00

1
Out of stock

6

WASHER

5PX-83348-00-00

1
Out of stock

7

FRONT FLASHER LIGH

B33-83320-00-00

—
Out of stock

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

1
Out of stock

9

LENS, FLASHER

5PX-83312-10-00

1
Out of stock

10

GASKET, FLASHER LENS

5PX-83313-00-00

1
Out of stock

11

SCREW, TAPPING

97704-40625-00

1
Out of stock

12

WASHER

5PX-83348-00-00

1
Out of stock

13

NUT(3GG)

90179-12588-00

1
Out of stock

14

CLAMP

90464-17003-00

1
Out of stock

15

COVER, OUTER 1

B33-23122-00-00

—
Out of stock

16

REAR FLASHER LIGHT ASSY 1

5C7-83330-10-00

—
Out of stock

17

BULB, FLASHER (12V-21W)

5VN-83331-00-00

—
Out of stock

18

GASKET, FLASHER LENS

5PX-83313-00-00

1
Out of stock

19

SCREW, TAPPING

97704-40625-00

1
Out of stock

20

WASHER

5PX-83348-00-00

1
Out of stock

21

LENS, FLASHER 2

5PX-83342-10-00

—
Out of stock

22

REAR FLASHER LIGHT ASSY 2

5C7-83340-10-00

—
Out of stock

23

BULB, FLASHER (12V-21W)

5VN-83331-00-00

—
Out of stock

24

GASKET, FLASHER LENS

5PX-83313-00-00

1
Out of stock

25

SCREW, TAPPING

97704-40625-00

1
Out of stock

26

WASHER

5PX-83348-00-00

1
Out of stock

27

LENS, FLASHER 2

5PX-83342-10-00

—
Out of stock

28

95702-12500

95702-12500-00

—
Out of stock
