2016 Yamaha Bolt C Spec CA (XVS95CRGC) Generator Diagram

← All diagrams

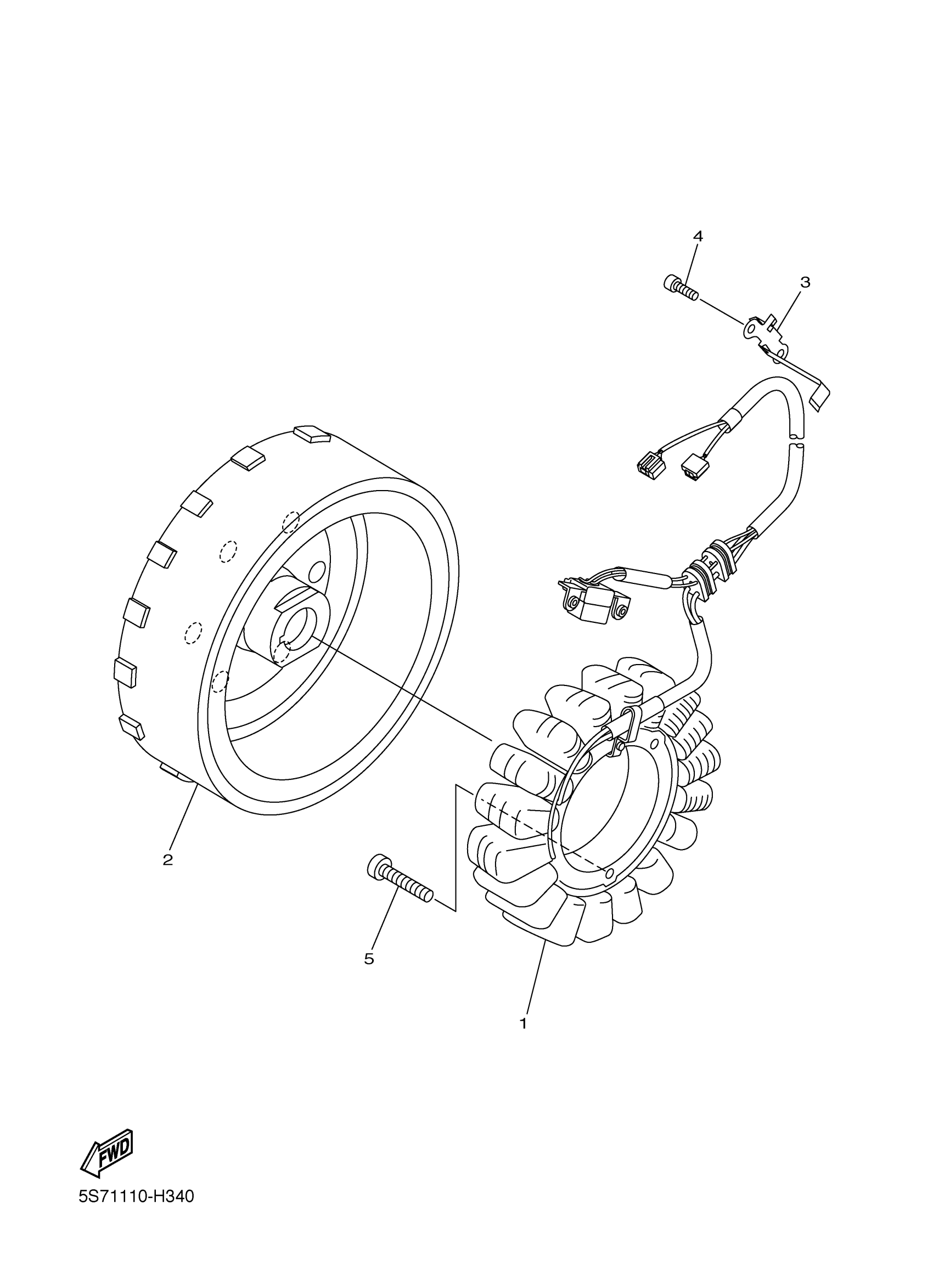

Find the part on the Generator diagram for your 2016 Yamaha Bolt C Spec CA (XVS95CRGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Bolt C Spec CA (XVS95CRGC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

1TP-81410-00-00

—

$485.09

In stock

2

ROTOR ASSY

5S7-81450-10-00

—

$454.69

In stock

3

CLAMP 2

5S7-15484-00-00

—

$5.80

In stock

4

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

5

1

$3.82

In stock
