2017 Yamaha Bolt CA (XVS95CHCB) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2017 Yamaha Bolt CA (XVS95CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

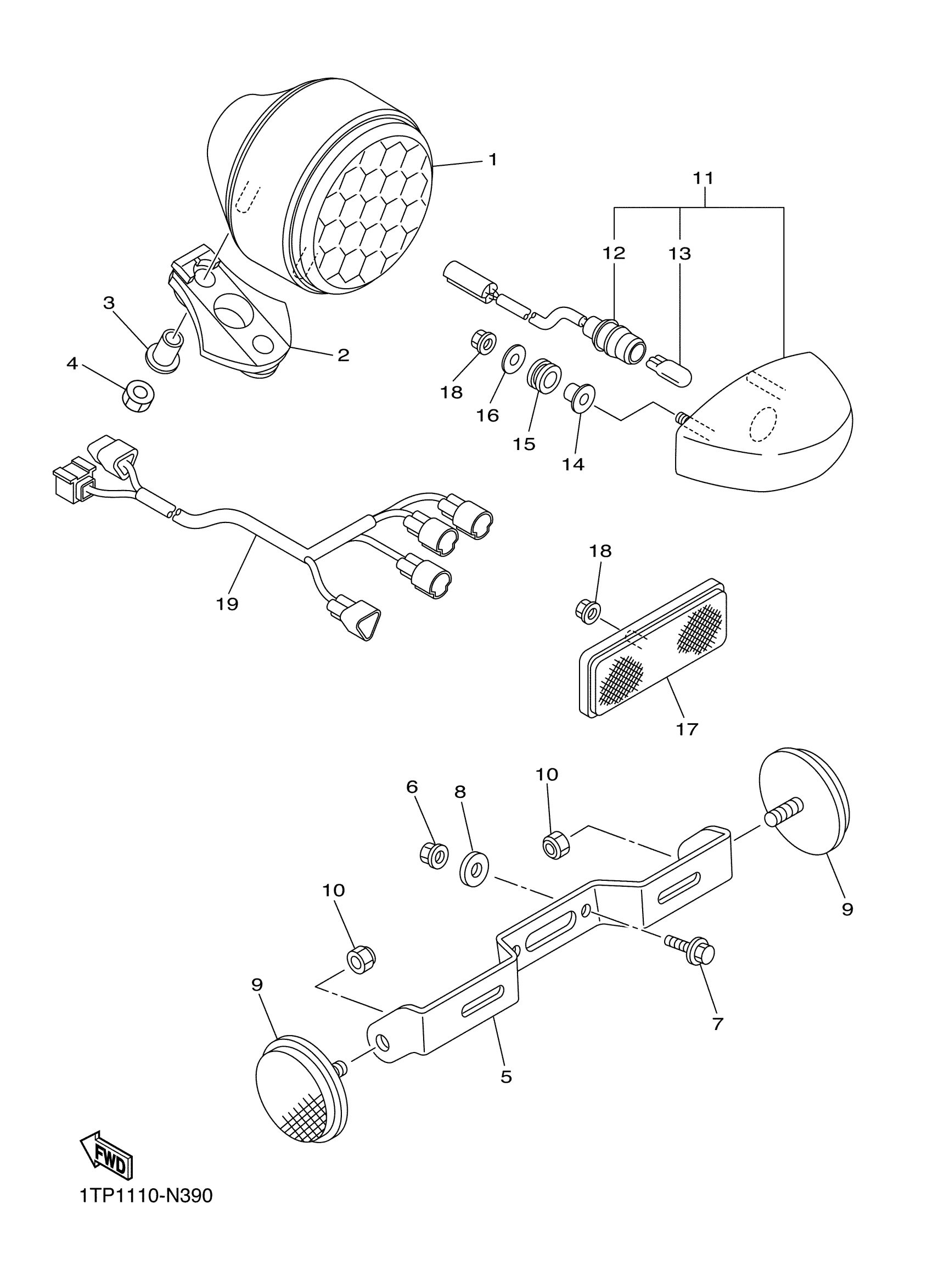

2017 Yamaha Bolt CA (XVS95CHCB) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSY

1TP-84700-00-00

1

$188.83

In stock

2

DAMPER, TAIL 1

1TP-84736-00-00

1

$6.98

In stock

3

COLLAR

90387-06161-00

1

$6.25

In stock

4

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

5

BRACKET, LICENSE

5S7-84751-01-00

1

$26.46

In stock

6

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

7

BOLT, FLANGE

95022-06014-00

1

$2.63

In stock

8

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

9

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

10

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

11

LICENCE LIGHT ASSY

1TP-84740-00-00

1

$34.29

In stock

12

CORD, LICENCE LIGHT

1TP-84547-00-00

—

$17.28

In stock

13

BULB

1TP-84347-00-00

1

$5.93

In stock

14

COLLAR

90387-05003-00

1

$4.49

In stock

15

GROMMET

90480-11008-00

1

$4.54

In stock

16

WASHER PLATE (664)

90201-05556-00

—

$6.98

In stock

17

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

18

NUT, FLANGE

95702-05500-00

—

$0.74

In stock

19

CORD, TAILLIGHT

1TP-84717-01-00

—

$71.26

In stock
