2017 Yamaha Bolt CA (XVS95CHCB) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 2017 Yamaha Bolt CA (XVS95CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

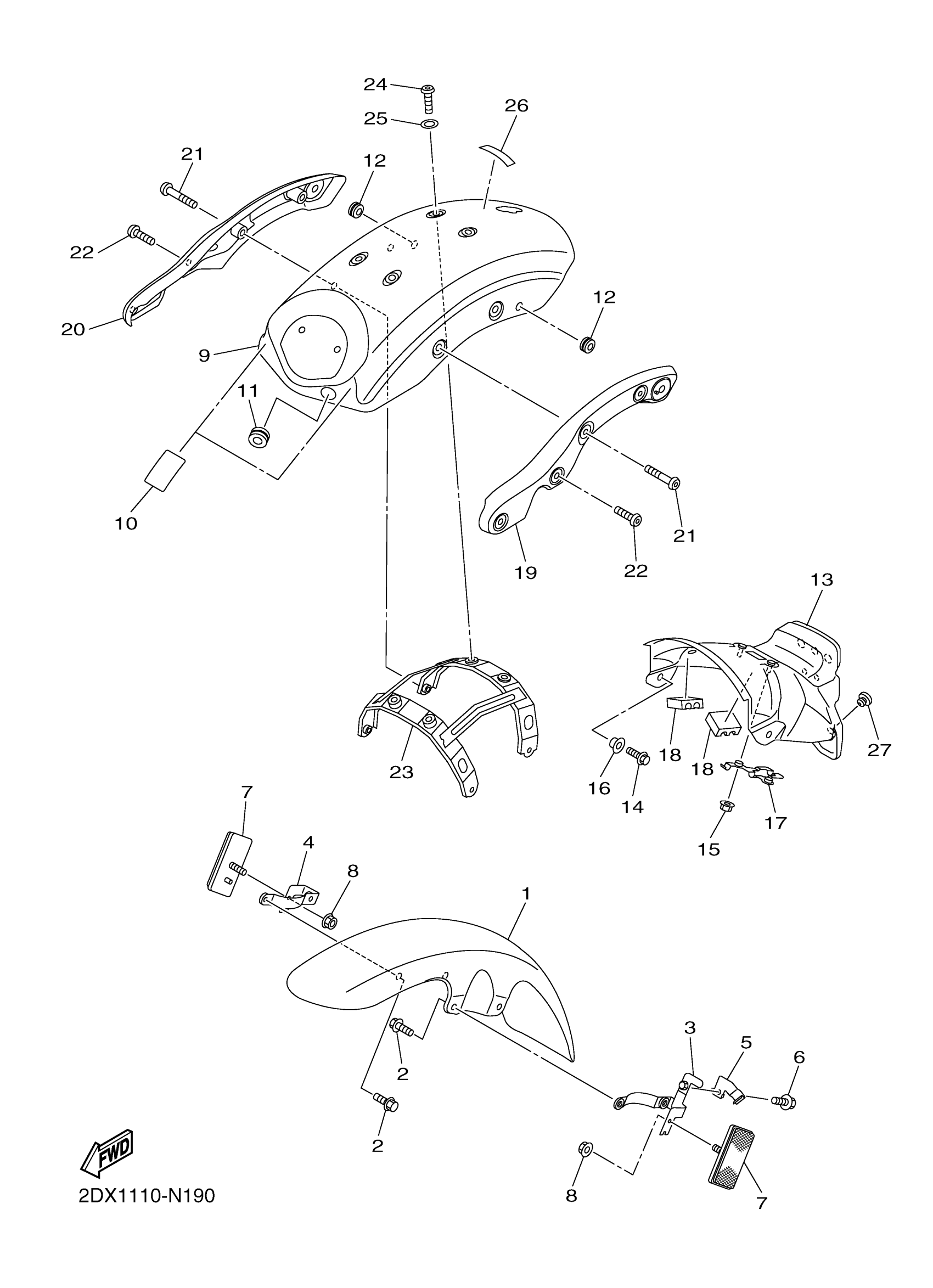

2017 Yamaha Bolt CA (XVS95CHCB) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FENDER COMP.

1TP-21510-00-P0

1
Out of stock

2

BOLT, FLANGE

95812-08020-00

1

$1.69

In stock

3

STAY 1

1TP-21587-00-00

—

$22.75

In stock

4

STAY 2

1TP-21588-00-00

—
Out of stock

5

HOLDER, BRAKE HOSE

27D-25887-00-00

—

$13.29

In stock

6

BOLT, FLANGE(4MY)

95027-06010-00

1
Out of stock

7

FRONT REFLECTOR ASSY

11H-85110-01-00

1

$20.92

In stock

8

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

9

REAR FENDER COMP.

1TP-21610-01-P0

1

$805.11

In stock

10

SEAL

1TP-21669-00-00

1

$3.54

In stock

11

GROMMET

90480-01015-00

1

$5.02

In stock

12

GROMMET 136825980000

90480-13016-00

1

$2.62

In stock

13

FENDER 2

1TP-2162R-01-00

1

$15.08

In stock

14

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

15

NUT, U FLANGE

95604-06200-00

1

$2.35

In stock

16

COLLAR (3L1)

90387-07717-00

—
Out of stock

17

BRACKET, REAR STAY

1TP-21688-00-00

—

$22.57

In stock

18

DAMPER 2

1TP-21639-00-00

—

$6.38

In stock

19

STAY, FENDER 1

1TP-21613-00-00

—

$282.38

In stock

20

STAY, FENDER 2

1TP-21614-00-00

—

$247.82

In stock

21

BOLT

90111-08005-00

—

$3.91

In stock

22

BOLT

90111-10006-00

—

$4.63

In stock

23

STAY, REAR

1TP-21643-00-00

—

$97.29

In stock

24

BOLT,HEX. SOCKET BUTTON

90111-08081-00

—

$3.78

In stock

25

WASHER, PLATE

90201-08066-00

—

$6.35

In stock

26

EMBLEM, YAMAHA

3WF-2153E-71-00

—

$4.48

In stock

27

PLUG

90338-07010-00

—

$4.52

In stock
