2017 Yamaha Bolt CA (XVS95CHCB) Electrical 1 Diagram

← All diagrams

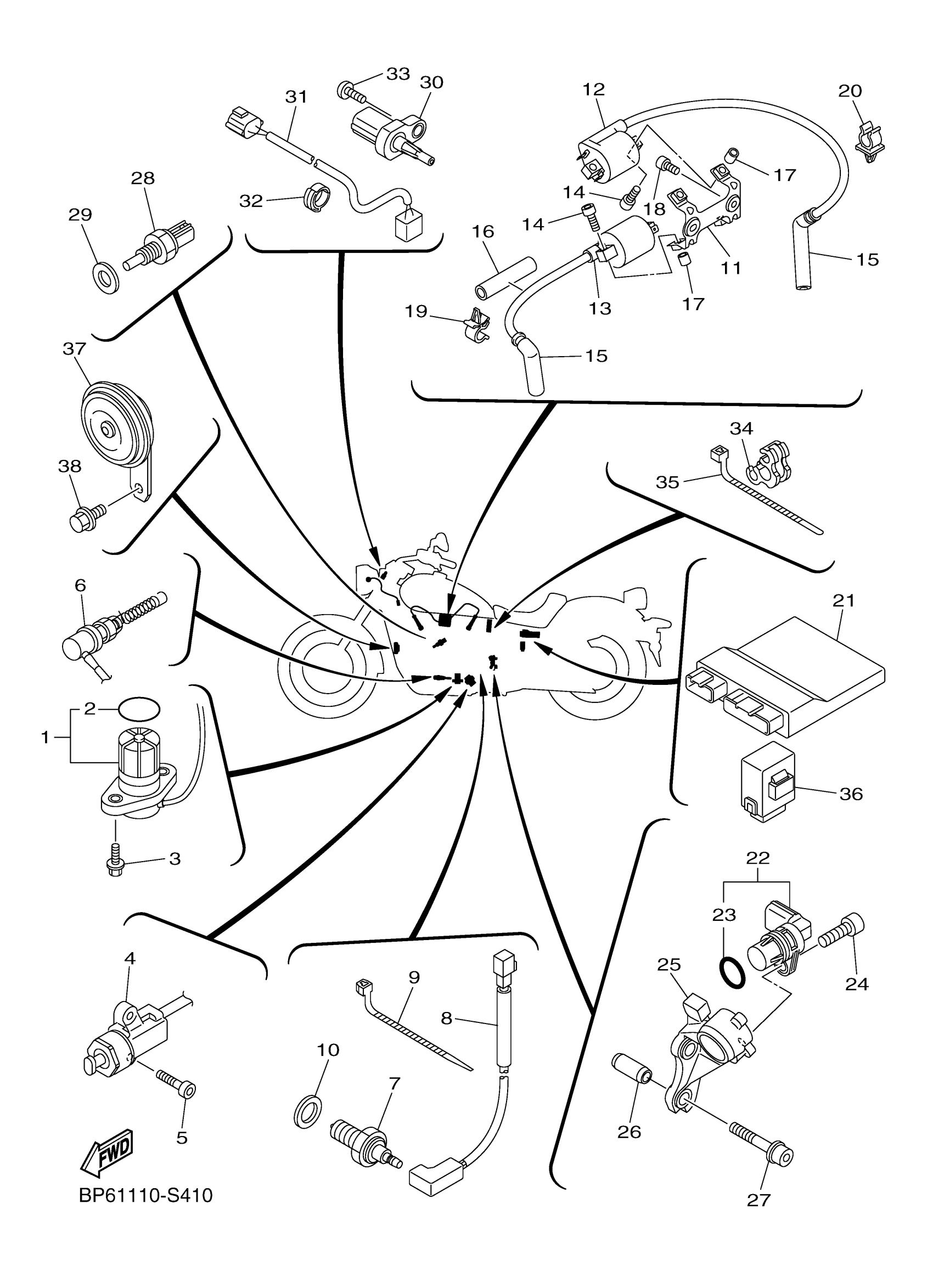

Find the part on the Electrical 1 diagram for your 2017 Yamaha Bolt CA (XVS95CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Bolt CA (XVS95CHCB) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL LEVEL GAUGE ASSY

5S7-85720-00-00

1

$95.82

In stock

2

O-RING

5VY-8A8E0-00-00

1

$10.94

In stock

3

BOLT, FLANGE

95022-06016-00

1

$3.32

In stock

4

SWITCH, SIDE STAND

1TP-82566-01-00

1

$65.05

In stock

5

BOLT, SOCKET

91317-05016-00

1

$2.48

In stock

6

STOP SWITCH ASSY

BP6-82530-01-00

1

$36.92

In stock

7

NEUTRAL SWITCH ASSY

3GB-82540-01-00

1

$52.07

In stock

8

WIRE, SUB LEAD

5S7-82509-10-00

—

$6.62

In stock

9

CLAMP

90464-13077-00

1

$6.68

In stock

10

GASKET (1KH,1.0T)

90430-10148-00

1

$4.74

In stock

11

BRACKET, COIL

3D8-21359-01-00

—

$26.95

In stock

12

IGNITION COIL ASSY

1TP-82310-00-00

1
Out of stock

13

IGNITION COIL ASSY

1S4-82310-03-00

—

$43.41

In stock

14

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

15

PLUG CAP ASSY

5S7-82370-00-00

1

$62.56

In stock

16

HOSE (L65)

90445-14020-00

1

$3.77

In stock

17

HOSE

90445-08029-00

1
Out of stock

18

BOLT

91312-06008-00

—

$0.37

In stock

19

CLAMP(3LD)

90464-09129-00

—

$1.92

In stock

20

CLAMP

90464-09008-00

1

$3.30

In stock

21

ENGINE CONTROL UNIT ASSY

1TP-8591A-00-00

—

$897.99

In stock

22

SENSOR, SPEED

1TP-83755-00-00

—

$67.31

In stock

23

O-RING

4D9-81168-00-00

—

$3.71

In stock

24

BOLT (33M)

91312-06014-00

—

$4.74

In stock

25

BRACKET

1TP-81948-00-00

—

$43.97

In stock

26

PIN, DOWEL

99530-08012-00

1

$6.62

In stock

27

BOLT, HEXAGON SOCKET HEAD

90110-06300-00

—

$2.86

In stock

28

THERMO UNIT

52B-H3591-00-00

—
Out of stock

29

WASHER PLATE 341839090000

90201-10128-00

—

$3.42

In stock

30

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

—

$29.26

In stock

31

WIRE, SUB LEAD

B33-82509-00-00

—

$12.92

In stock

32

CLAMP

90464-13227-00

—

$6.92

In stock

33

SCREW, PAN

98517-05012-00

—

$3.91

In stock

34

CLAMP, LEAD 1

1TP-81443-00-00

—

$4.11

In stock

35

CLAMP

90464-20258-00

—

$4.38

In stock

36

FLASHER RELAY ASSY

5S7-83350-01-00

—

$94.17

In stock

37

HORN

2S3-83371-00-00

—

$55.78

In stock

38

BOLT, WASHER BASED

90105-082A5-00

—

$2.72

In stock
