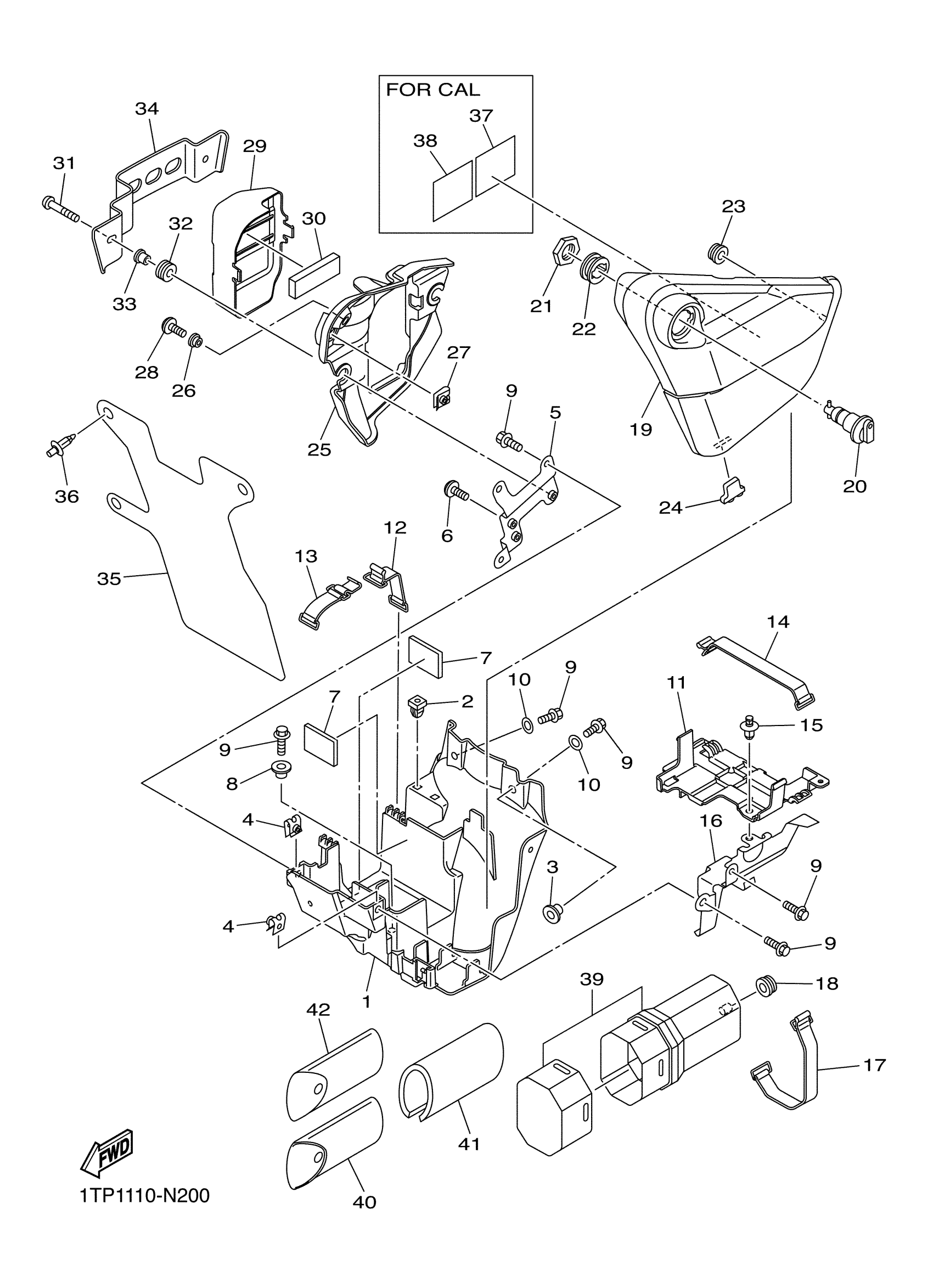

2017 Yamaha Bolt CA (XVS95CHCB) Side Cover Diagram
Find the part on the Side Cover diagram for your 2017 Yamaha Bolt CA (XVS95CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
6
BOLT, BUTTON HEAD
92017-06012-00
1
Out of stock
11
BOX
1TP-2177A-01-00
—
Out of stock
