2016 Yamaha Bolt (XVS95CGL) Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

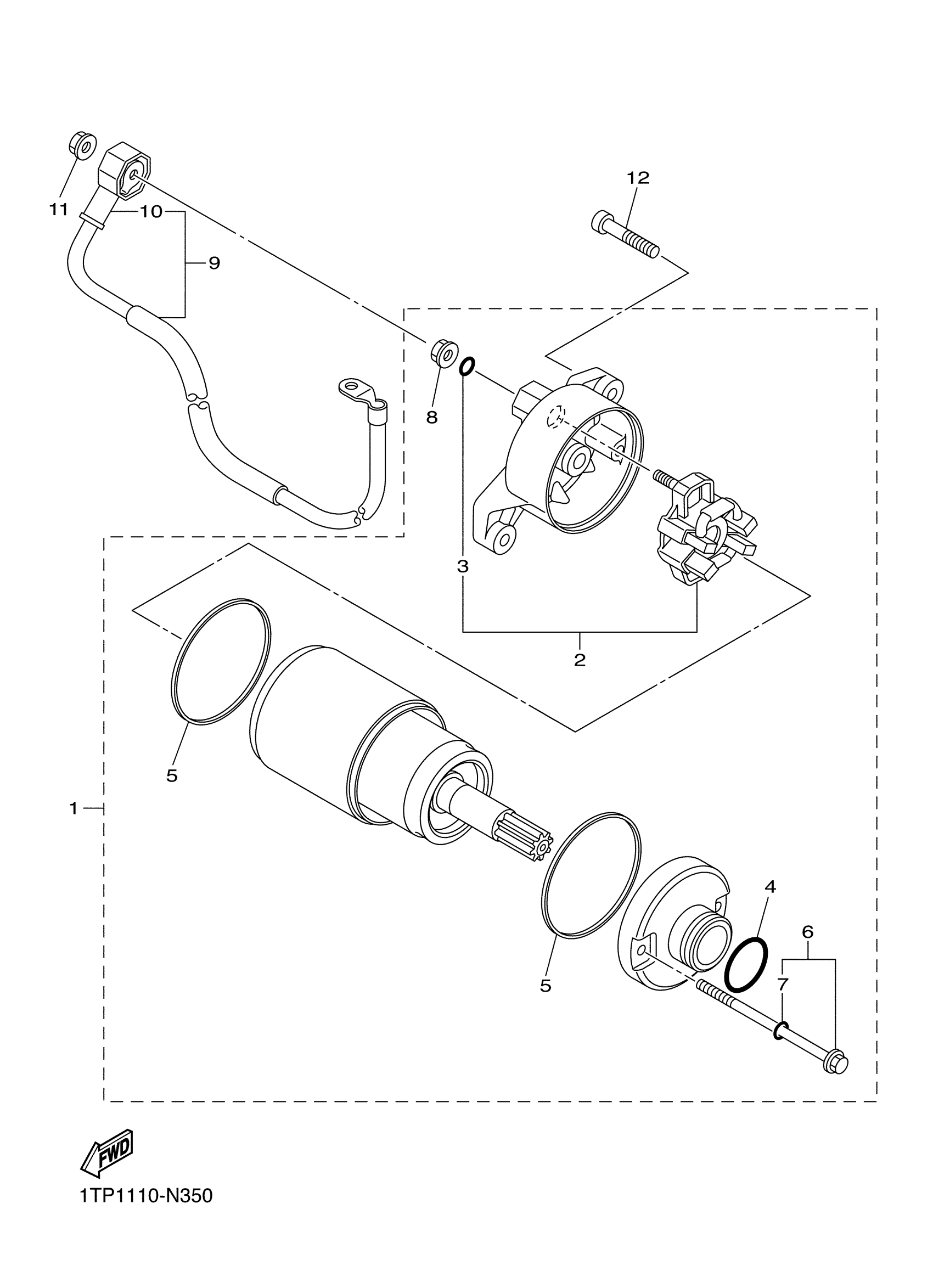

2016 Yamaha Bolt (XVS95CGL) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY

1TP-81890-01-00

1

$396.02

In stock

2

BRUSH HOLDER ASSY

4B5-81840-00-00

1

$95.57

In stock

3

.. O-RING

3TB-81847-00-00

1

$2.31

In stock

4

O-RING (437)

93210-24235-00

1

$5.72

In stock

5

GASKET

35C-81844-00-00

—

$43.01

In stock

6

BOLT

28P-81826-00-00

—

$13.35

In stock

7

.. O-RING

3TB-81847-00-00

1

$2.31

In stock

8

NUT

4XV-8182A-00-00

1

$6.28

In stock

9

CORD, STARTER MOTOR

1TP-81815-00-00

1

$59.06

In stock

10

CAP

4B5-81871-00-00

—

$9.46

In stock

11

NUT

4XV-8182A-00-00

1

$6.28

In stock

12

BOLT, SOCKET

91314-06030-00

1
Out of stock
← Starter Taillight →
