2016 Yamaha Bolt (XVS95CGL) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

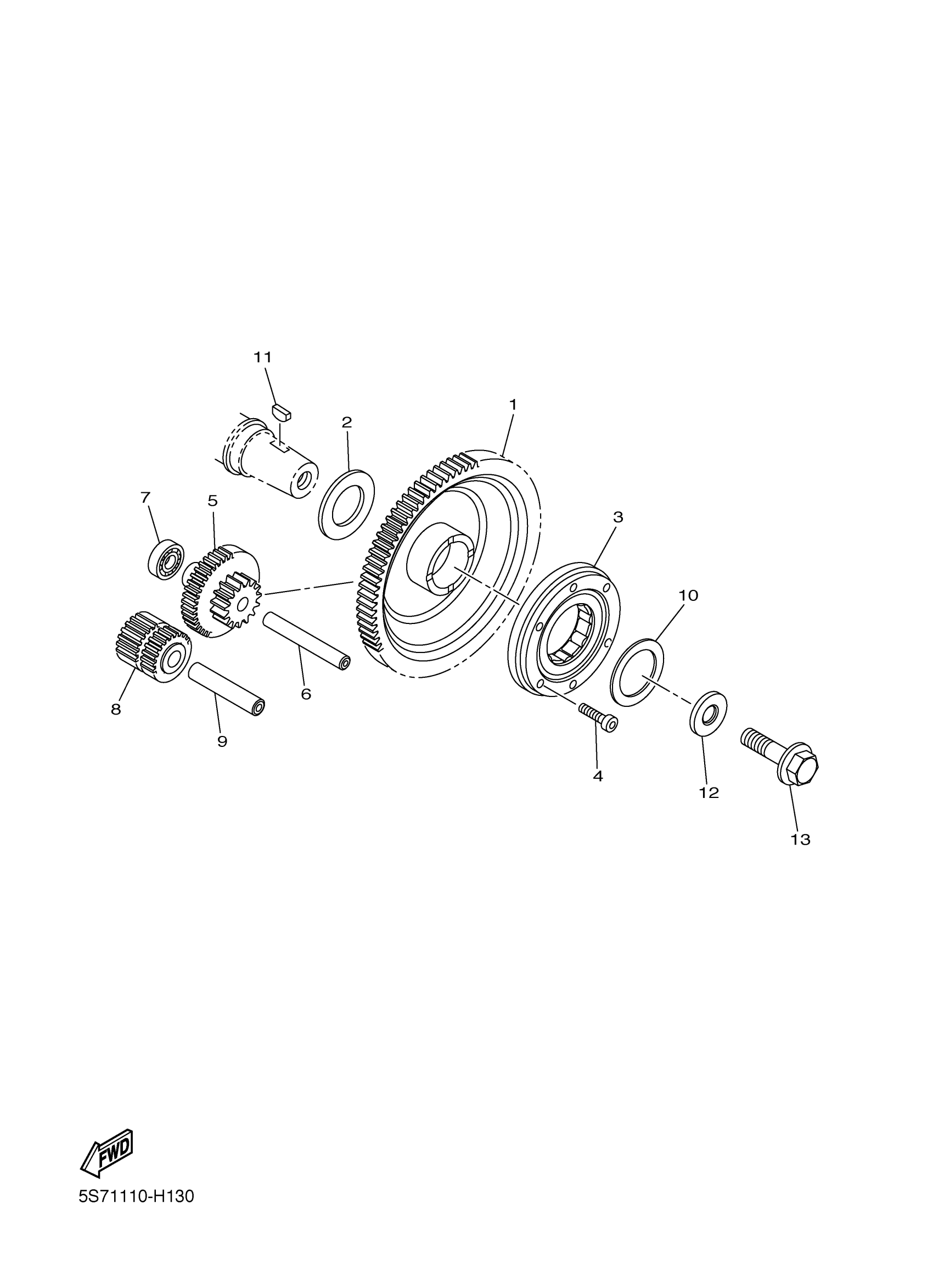

2016 Yamaha Bolt (XVS95CGL) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

5S7-15515-00-00

—

$135.06

In stock

2

WASHER

5S7-15561-00-00

—

$11.00

In stock

3

STARTER ONE-WAY ASSY

4NK-15590-00-00

—

$278.48

In stock

4

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

5

GEAR, IDLER 1

5S7-15512-01-00

1

$130.49

In stock

6

SHAFT 1

1D7-15521-00-00

—

$8.09

In stock

7

BRG,R-B 6000 26MM 19G KY

93306-00004-00

1

$31.81

In stock

8

GEAR, IDLER 1

3D8-15512-01-00

1

$68.98

In stock

9

SHAFT 2

4WM-15522-00-00

—

$11.69

In stock

10

WASHER, PLATE (11H)

90201-350F3-00

1

$9.26

In stock

11

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

12

WASHER, PLATE

90201-12008-00

1

$11.15

In stock

13

BOLT, WASHER BASED(3LD)

90105-12584-00

—

$17.25

In stock
← Meter Starting Motor →
