2016 Yamaha Bolt (XVS95CGL) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2016 Yamaha Bolt (XVS95CGL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

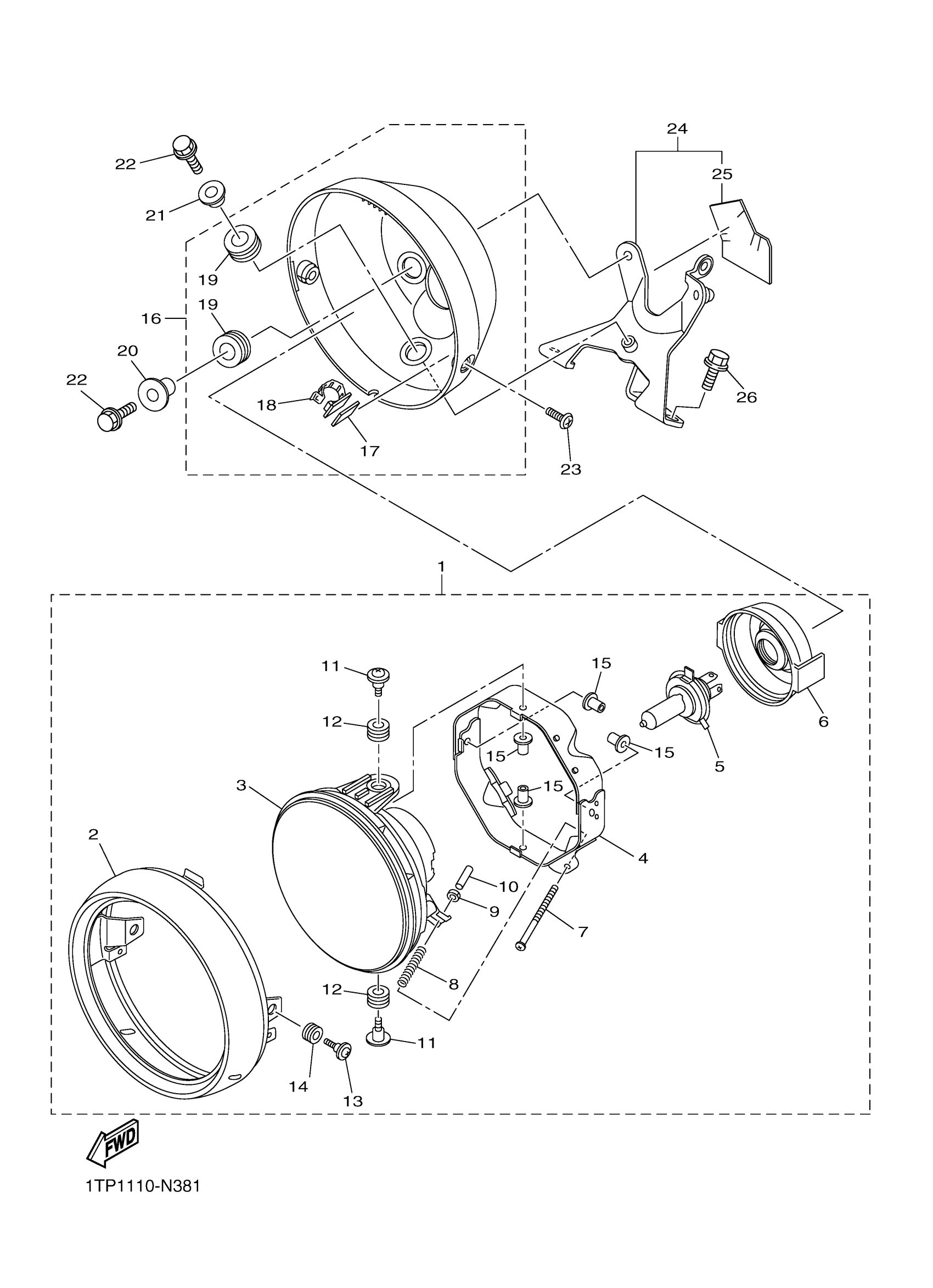

2016 Yamaha Bolt (XVS95CGL) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

5S7-84310-00-00

1

$464.68

In stock

2

RIM, HEADLIGHT

5S7-84315-00-00

1

$82.36

In stock

3

LENS ASSY

5PX-84320-00-00

1

$184.20

In stock

4

STAY, HEADLIGHT 1

5PX-84318-00-00

1

$59.90

In stock

5

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

6

COVER, SOCKET

5PX-84397-00-00

1

$34.05

In stock

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

1

$6.38

In stock

8

SPRING, SCREW

5PX-84332-00-00

1

$6.38

In stock

9

NUT, ADJUSTING

5PX-84334-00-00

1

$6.38

In stock

10

CAP,1

5PX-84385-00-00

1

$6.38

In stock

11

SCREW, RIM FITTING

5PX-84325-00-00

1

$6.43

In stock

12

GROMMET

5PX-84354-00-00

1

$4.91

In stock

13

SCREW, RIM FITTING

5PX-84125-00-00

1

$6.43

In stock

14

GROMMET

5PX-84352-00-00

1

$5.93

In stock

15

NUT

5PX-84317-00-00

1

$10.20

In stock

16

BODY ASSY

1TP-84330-00-00

—

$57.81

In stock

17

SEAL 1

1TP-28428-00-00

—

$2.74

In stock

18

CLAMP

90464-09009-00

—

$6.09

In stock

19

DAMPER, HEADLIGHT 1

4WM-84366-00-00

—

$9.63

In stock

20

COLLAR(36Y)

90387-067K8-00

—

$5.18

In stock

21

COLLAR

90387-06040-00

—

$8.86

In stock

22

BOLT, FLANGE

95022-06020-00

—

$3.32

In stock

23

SCREW, BINDING

98907-05014-00

—

$6.52

In stock

24

HEAD LIGHT STAY ASSY.

1TP-8411A-00-00

—

$48.32

In stock

25

DAMPER, HEADLIGHT STAY

1TP-84136-00-00

—

$8.49

In stock

26

BOLT, FLANGE(4MY)

95027-08035-00

—
Out of stock
