2015 Yamaha Bolt R Spec (XVS95CFS) Taillight Diagram

← All diagrams

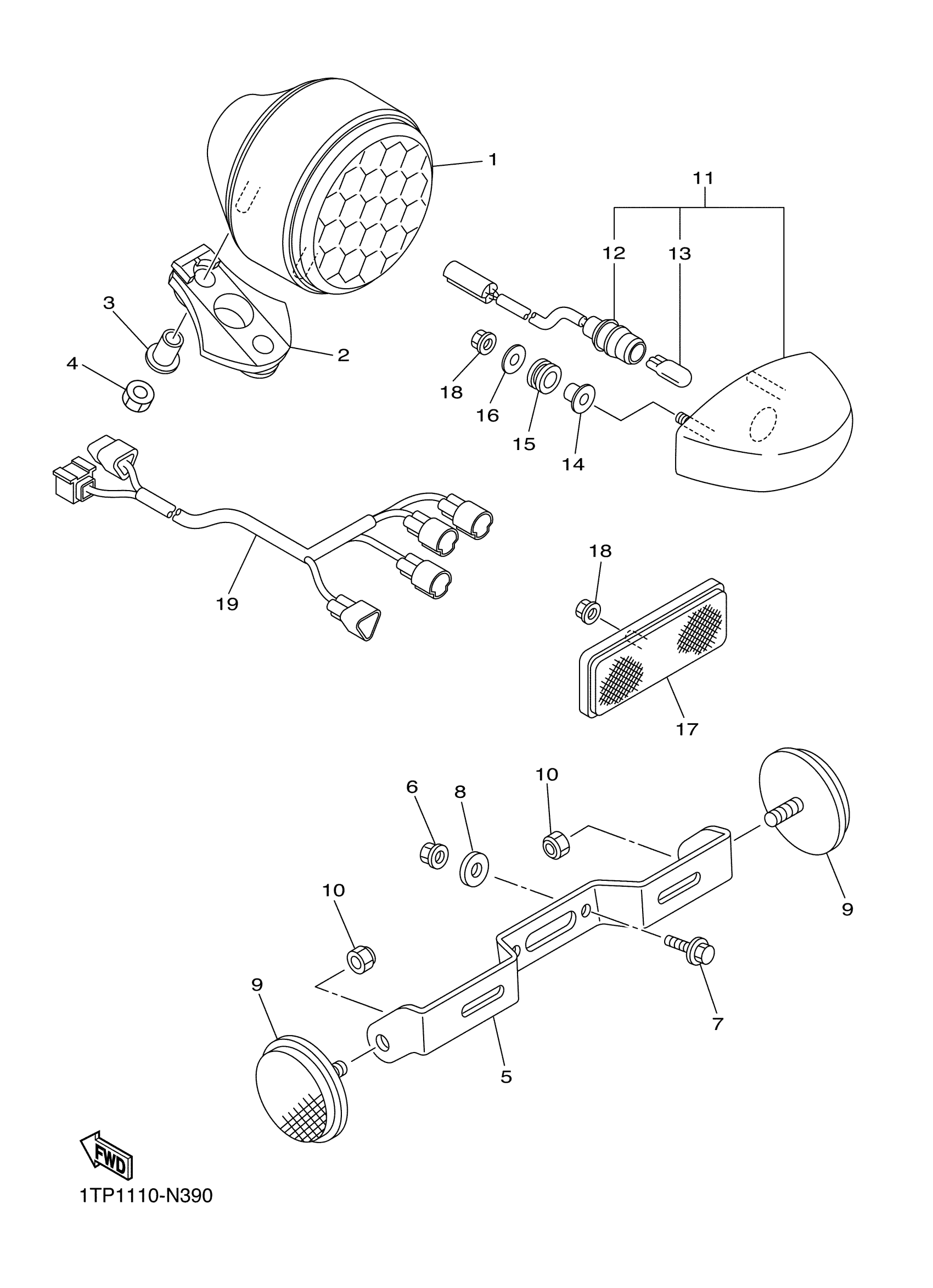

Find the part on the Taillight diagram for your 2015 Yamaha Bolt R Spec (XVS95CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Bolt R Spec (XVS95CFS) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSY

1TP-84700-00-00

1
Out of stock

2

DAMPER, TAIL 1

1TP-84736-00-00

1
Out of stock

3

COLLAR

90387-06161-00

1
Out of stock

4

NUT, HEXAGON

95380-06600-00

1
Out of stock

5

BRACKET, LICENSE

5S7-84751-01-00

1
Out of stock

6

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

7

BOLT, FLANGE

95022-06014-00

1
Out of stock

8

WASHER, PLATE

90201-06380-00

1
Out of stock

9

REFLECTOR, REAR 1

449-85131-02-00

1
Out of stock

10

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

11

LICENCE LIGHT ASSY

1TP-84740-00-00

1
Out of stock

12

CORD, LICENCE LIGHT

1TP-84547-00-00

—
Out of stock

13

BULB

1TP-84347-00-00

1
Out of stock

14

COLLAR

90387-05003-00

1
Out of stock

15

GROMMET

90480-11008-00

1
Out of stock

16

WASHER PLATE (664)

90201-05556-00

—
Out of stock

17

REAR REFLECTOR ASSY

3Y6-85130-02-00

1
Out of stock

18

NUT, FLANGE

95702-05500-00

—
Out of stock

19

CORD, TAILLIGHT

1TP-84717-01-00

—
Out of stock
