2015 Yamaha Bolt R Spec (XVS95CFS) Meter Diagram

← All diagrams

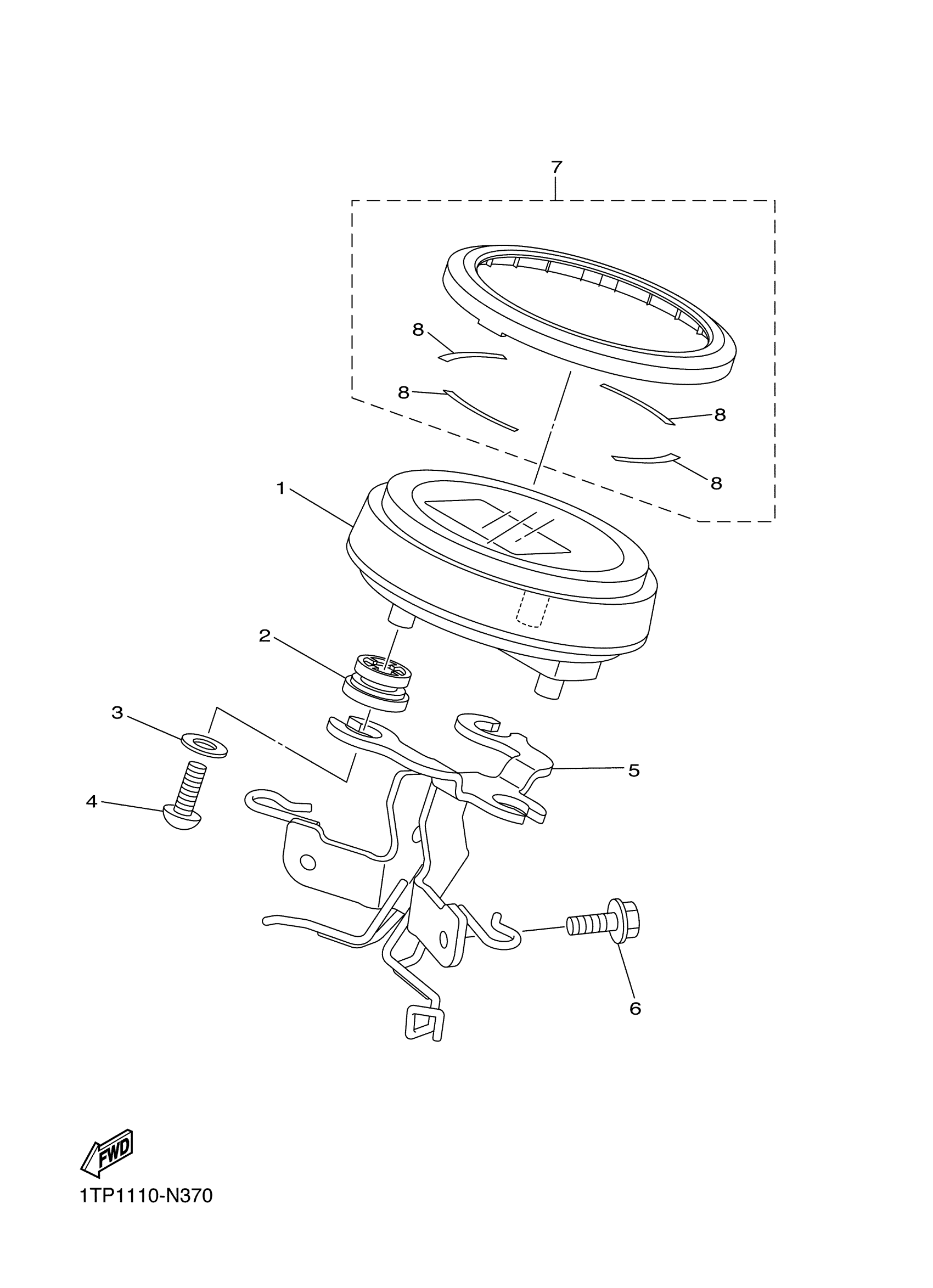

Find the part on the Meter diagram for your 2015 Yamaha Bolt R Spec (XVS95CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Bolt R Spec (XVS95CFS) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

1TP-83500-01-00

—

$490.12

In stock

2

DAMPER

1TP-83513-00-00

1

$2.42

In stock

3

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

4

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

5

BRACKET, METER

1TP-83519-00-00

1

$71.94

In stock

6

BOLT, FLANGE

90105-06136-00

1

$1.12

In stock

7

COVER, METER

1TP-83559-00-00

1

$32.69

In stock

8

SHEET

1TP-8336V-00-00

1

$1.32

In stock
