2004 Yamaha V Star Custom CA (XVS65SC) Generator Diagram

← All diagrams

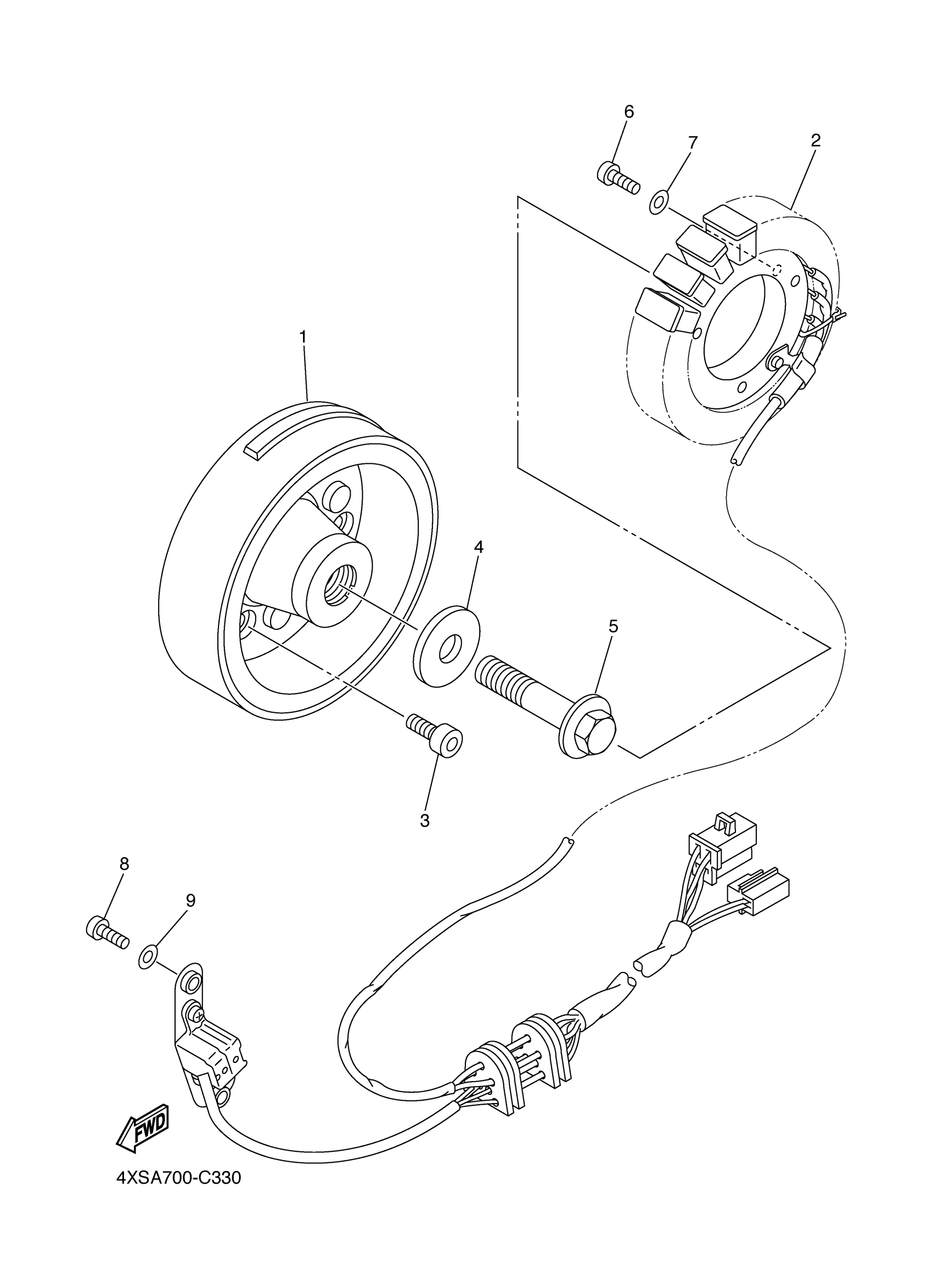

Find the part on the Generator diagram for your 2004 Yamaha V Star Custom CA (XVS65SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Yamaha V Star Custom CA (XVS65SC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

4VR-81450-02-00

1

$348.58

In stock

2

STATOR ASSY

5SC-81410-03-00

1
Out of stock

3

BOLT, SOCKET

91317-08020-00

1

$2.34

In stock

4

WASHER, PLATE(1WG)

90201-107K6-00

—

$8.82

In stock

5

BOLT, WASHER BASED (4H7)

90105-10152-00

1
Out of stock

6

SCREW, PAN

98517-06030-00

1
Out of stock

7

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

8

SCREW, PAN

98517-06020-00

1
Out of stock

9

WASHER(6TA)

92907-06600-00

1

$0.78

In stock
