2002 Yamaha V-Star Custom CA (XVS650PC) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2002 Yamaha V-Star Custom CA (XVS650PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

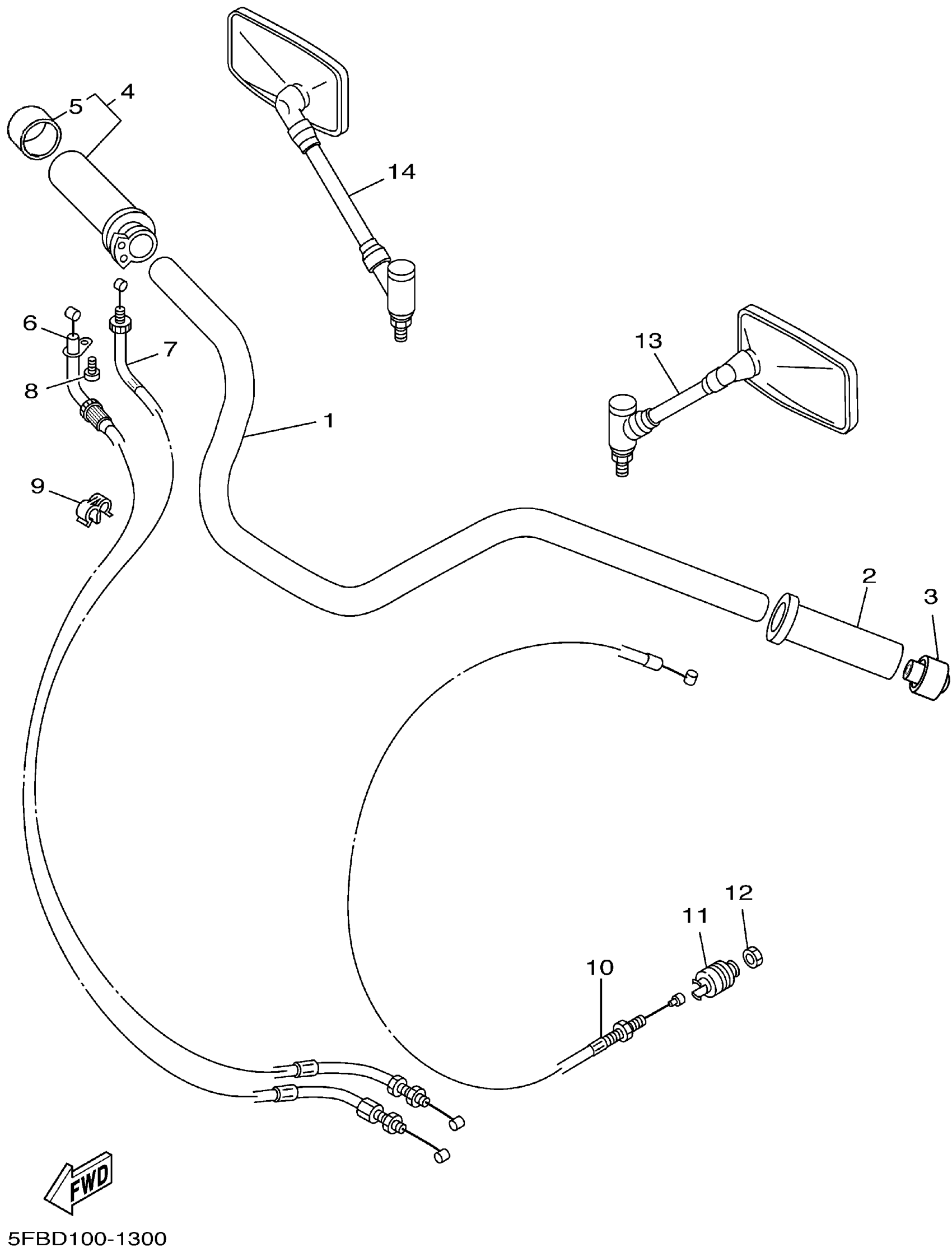

2002 Yamaha V-Star Custom CA (XVS650PC) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4VR-26111-11-00

—
Out of stock

2

GRIP

4NK-26241-01-00

—
Out of stock

3

CAP, GRIP

4NK-2628J-00-00

1

$22.66

In stock

4

GRIP ASSY

4NK-26240-00-00

1

$76.02

In stock

5

CAP 2

4NK-2635J-00-00

1

$26.08

In stock

6

WIRE, THROTTLE 1

5KP-26311-11-00

—
Out of stock

7

CABLE, THROTTLE 2

5KP-26312-11-00

1
Out of stock

8

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

9

CLAMP(4KB)

90464-06214-00

1
Out of stock

10

CABLE, CLUTCH

5KP-26335-00-00

1

$28.62

In stock

11

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

12

. NUT

95380-08700-00

1

$3.07

In stock

13

REAR VIEW MIRROR ASSY (LEFT)

4VR-26280-12-00

—
Out of stock

14

REAR VIEW MIRROR ASSY (RIGHT)

4VR-26290-12-00

—
Out of stock
