2000 Yamaha V-Star Custom CA (XVS650MC) Oil Pump Diagram

← All diagrams

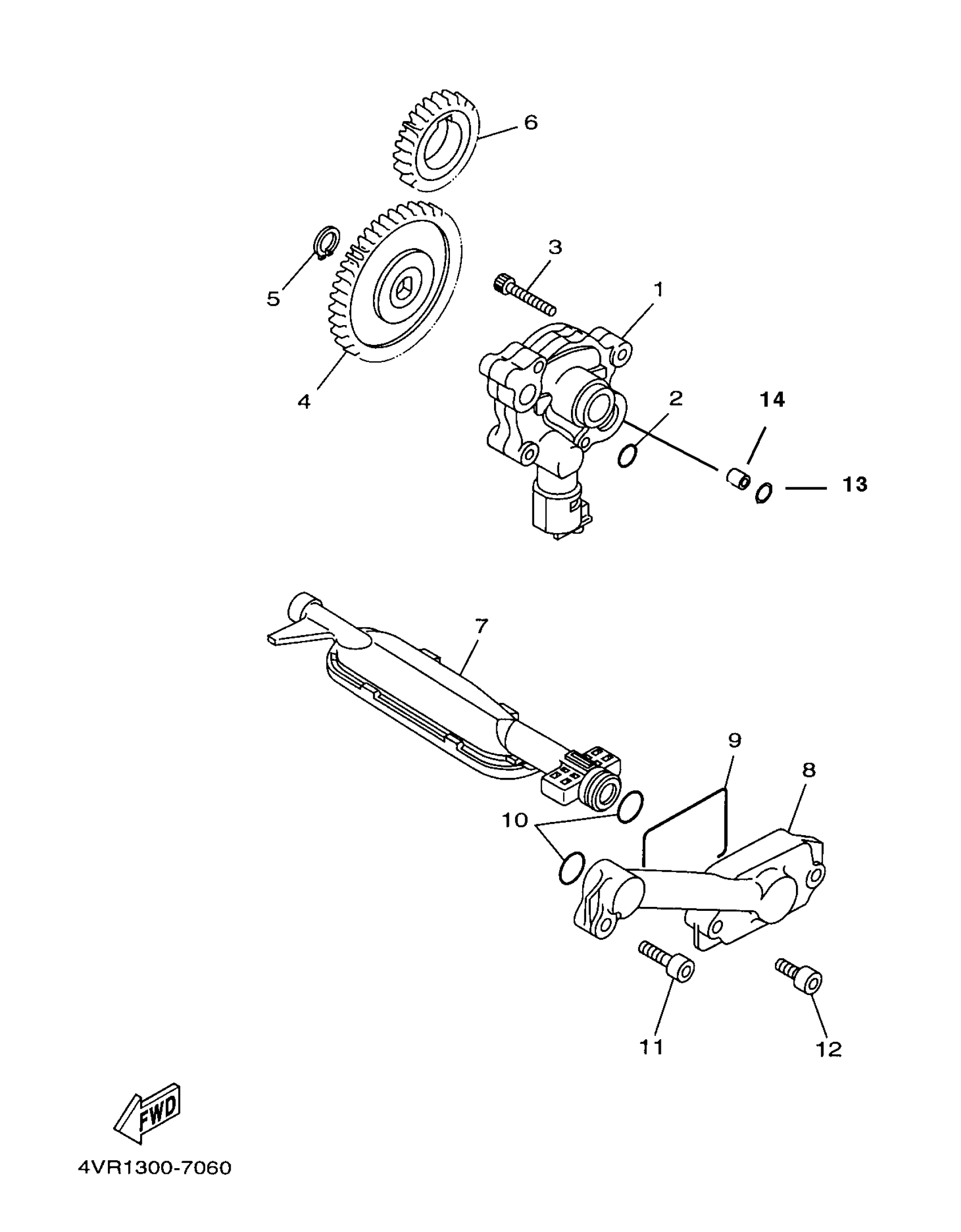

Find the part on the Oil Pump diagram for your 2000 Yamaha V-Star Custom CA (XVS650MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha V-Star Custom CA (XVS650MC) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

4VR-13300-00-00

1

$228.43

In stock

2

O-RING (611)

93210-10096-00

1

$3.11

In stock

3

1

$3.82

In stock

4

GEAR, PUMP DRIVEN

4VR-13325-01-00

—

$13.92

In stock

5

CIRCLIP(24H)

99009-11400-00

1

$6.17

In stock

6

GEAR, PUMP DRIVE

22U-13324-00-00

—

$27.32

In stock

7

STRAINER HOUSING ASSY

4TR-13410-00-00

1

$27.40

In stock

8

COVER, STRAINER

4VR-13417-01-00

1

$89.29

In stock

9

SEAL, OIL STRAINER

22U-13415-00-00

1

$8.94

In stock

10

O-RING (256)

93210-15151-00

—

$5.69

In stock

11

BOLT,SOCKET HEAD

91314-06025-00

1

$6.68

In stock

12

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

13

O-RING

93210-16017-00

1
Out of stock

14

PIN, DOWEL(MH0)

91815-16017-00

1

$6.82

In stock
