2000 Yamaha V-Star Custom CA (XVS650MC) Exhaust Diagram

← All diagrams

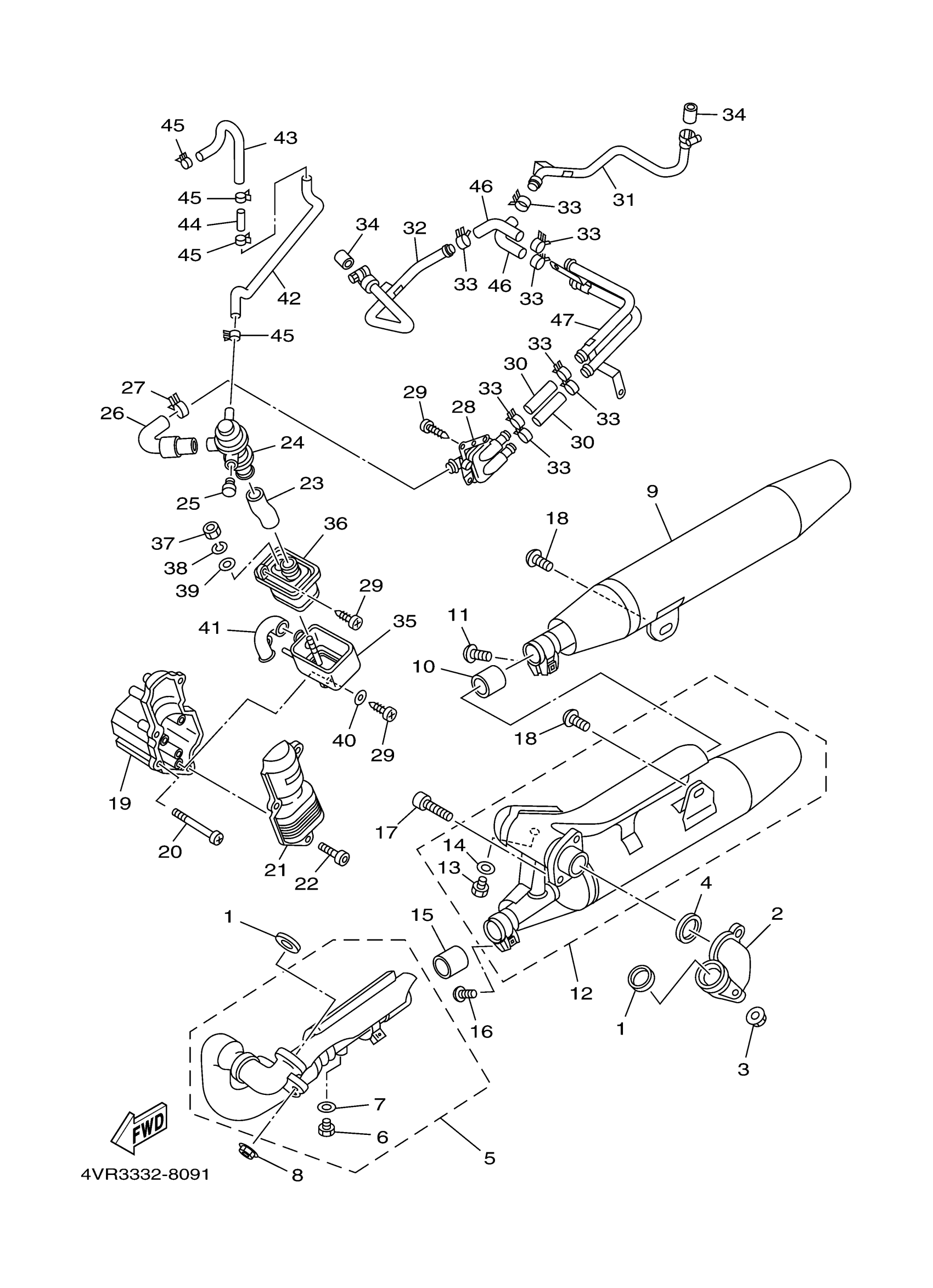

Find the part on the Exhaust diagram for your 2000 Yamaha V-Star Custom CA (XVS650MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha V-Star Custom CA (XVS650MC) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, EXHAUST PIPE

4TR-14613-00-00

1
Out of stock

2

JOINT, EXHAUST 1

4TR-14615-02-00

—
Out of stock

3

NUT, SELF-LOCKING(3BN)

90185-08146-00

1
Out of stock

4

GASKET, EXHAUST PIPE

4BR-14613-00-00

1
Out of stock

5

EXHAUST PIPE ASSY 2

4XP-14620-02-00

—
Out of stock

6

BOLT (11T)

90101-06576-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

8

NUT, SELF-LOCKING(3BN)

90185-08146-00

1
Out of stock

9

MUFFLER COMP. 1

5BN-14703-02-00

1
Out of stock

10

GASKET, MUFFLER

4BH-14714-00-00

1
Out of stock

11

BOLT, BUTTON

92017-08025-00

1
Out of stock

12

MUFFLER COMP. 2

5BN-14704-03-00

1
Out of stock

13

BOLT (11T)

90101-06576-00

1
Out of stock

14

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

15

GASKET, MUFFLER

4BH-14714-00-00

1
Out of stock

16

BOLT, BUTTON

92017-08025-00

1
Out of stock

17

BOLT, SOCKET

91314-08035-00

—
Out of stock

18

BOLT, BUTTON HEAD

92017-10020-00

—
Out of stock

19

COVER, AIR 1

5BN-14604-00-00

—
Out of stock

20

SCREW,WITH WASHER

97607-06290-00

1
Out of stock

21

COVER 1

5BN-14603-00-00

—
Out of stock

22

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

23

HOSE, BEND 2

5BN-14882-00-00

—
Out of stock

24

AIR CUT VALVE ASS'Y

5BN-14840-00-00

—
Out of stock

25

PLUG (17J)

90338-10132-00

—
Out of stock

26

HOSE, BEND 3

5BN-14883-00-00

—
Out of stock

27

CLIP (4V3)

90467-19051-00

—
Out of stock

28

REED VALVE ASSY

5BN-14808-00-00

—
Out of stock

29

SCREW, PAN TAP.2

97707-60514-00

1
Out of stock

30

HOSE, BEND 4

42H-14884-00-00

1
Out of stock

31

PIPE 1

5BN-14871-00-00

—
Out of stock

32

PIPE 2

5BN-14872-00-00

—
Out of stock

33

CLIP

90468-08104-00

—
Out of stock

34

GASKET, MUFFLER

42H-14714-10-00

—
Out of stock

35

CASE, AIR CLEANER

5BN-14857-01-00

—
Out of stock

36

CAP, CASE

5BN-14858-00-00

—
Out of stock

37

NUT, U

95617-05100-00

—
Out of stock

38

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

39

WASHER, PLATE (463)

90202-05057-00

—
Out of stock

40

WASHER, PLATE (22K)

90201-061H1-00

—
Out of stock

41

HOSE, BEND 5

5BN-14885-00-00

—
Out of stock

42

HOSE, VACUUM SENSING 1

5BN-13542-00-00

—
Out of stock

43

HOSE, VACUUM SENSING 2

5BN-13544-00-00

—
Out of stock

44

PIPE

4MM-13582-00-00

—
Out of stock

45

CLIP(41W)

90467-08092-00

—
Out of stock

46

HOSE, BEND 1

5BN-14881-00-00

—
Out of stock

47

PIPE 5

5BN-14875-00-00

—
Out of stock
