2000 Yamaha V-Star Custom CA (XVS650MC) Cylinder Diagram

← All diagrams

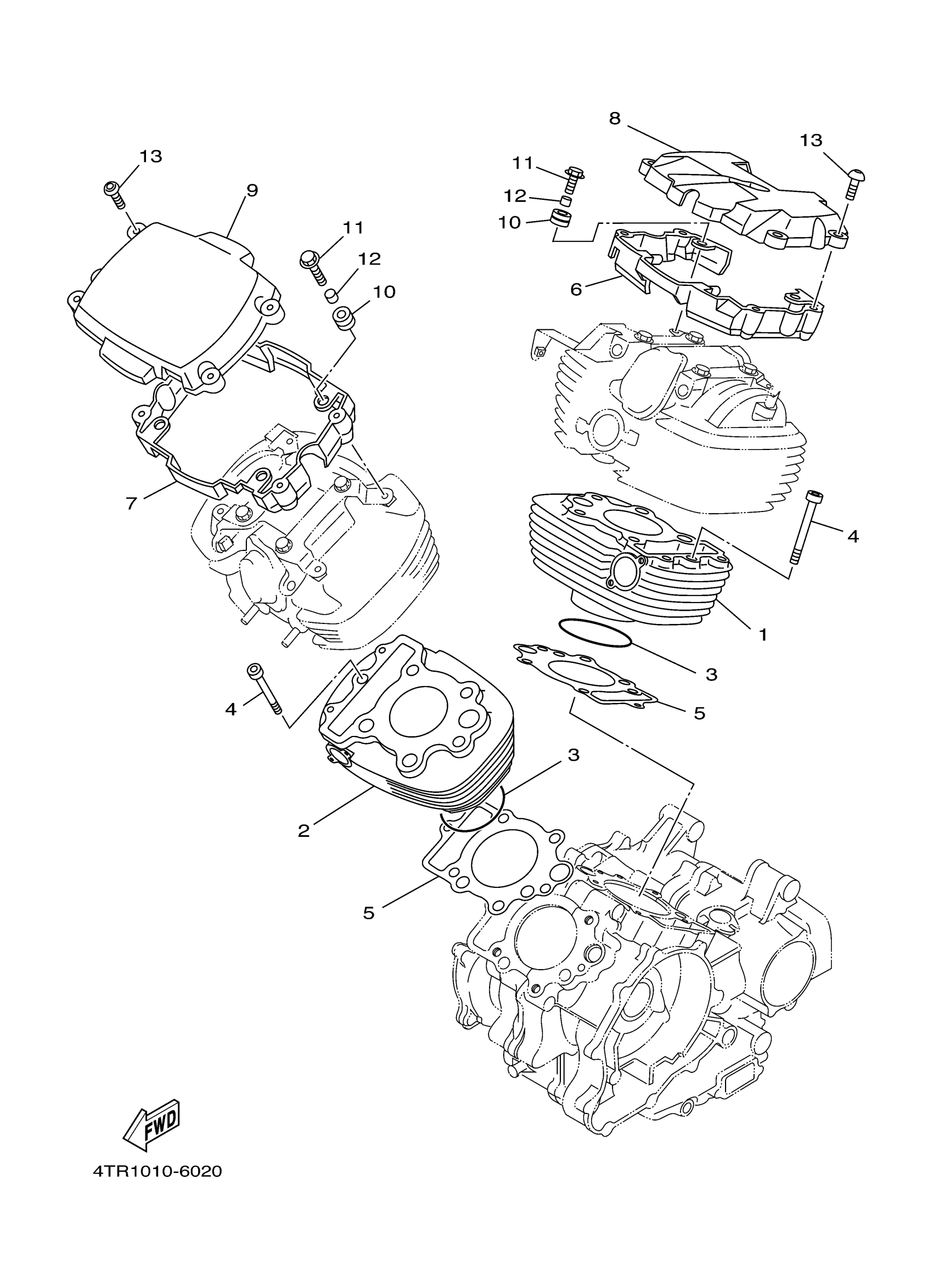

Find the part on the Cylinder diagram for your 2000 Yamaha V-Star Custom CA (XVS650MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha V-Star Custom CA (XVS650MC) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

4VR-11310-11-00

1
Out of stock

2

CYLINDER 2

4VR-11320-11-00

1
Out of stock

3

O-RING(4ES)

93210-84724-00

1
Out of stock

4

BOLT, SOCKET

91317-06085-00

—
Out of stock

5

GASKET, CYLINDER

4VR-11351-01-00

1
Out of stock

6

COVER, CYLINDER HEAD 1

4VR-11191-00-00

—
Out of stock

7

COVER, CYLINDER HEAD 2

4VR-11192-00-00

—
Out of stock

8

COVER, CYLINDER HEAD 1

4VR-11190-00-00

1
Out of stock

9

COVER 2

4VR-1111N-00-00

—
Out of stock

10

GROMMET (462)

90480-13018-00

1
Out of stock

11

BOLT, WITH WASHER(81H)

90119-06118-00

1
Out of stock

12

COLLAR

90387-06043-00

1
Out of stock

13

SCREW(4DN)

90149-06302-00

—
Out of stock
