2000 Yamaha V-Star Custom CA (XVS650MC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2000 Yamaha V-Star Custom CA (XVS650MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

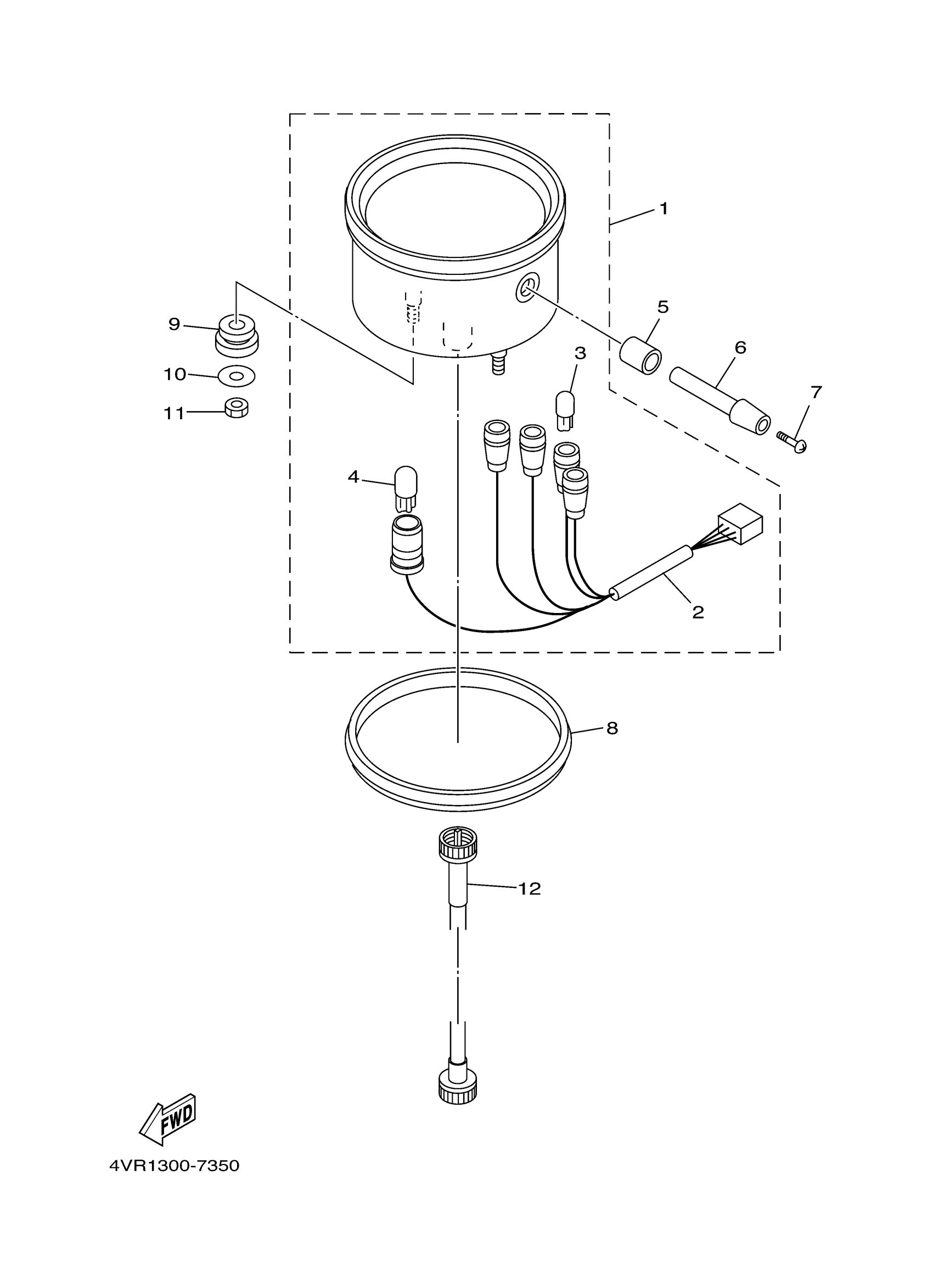

2000 Yamaha V-Star Custom CA (XVS650MC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

4TR-83580-50-00

—

$396.22

In stock

2

. SOCKET CORD ASSY

4TR-83520-10-00

1
Out of stock

3

BULB (12V-1.7W)

3FV-83517-00-00

1

$6.30

In stock

4

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

5

TUBE

4TR-83535-00-00

1

$6.46

In stock

6

KNOB, TRIP METER

1JK-83578-00-00

1

$18.21

In stock

7

SCREW, PAN HEAD (11H)

90157-02031-00

1

$7.05

In stock

8

DAMPER

4TR-83513-00-00

1

$11.25

In stock

9

DAMPER 2

4TR-83526-00-00

1

$6.46

In stock

10

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

11

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

12

SPEEDOMETER CABLE ASSY

4VR-83550-01-00

—

$31.61

In stock
