2000 Yamaha V-Star Custom CA (XVS650MC) Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 2000 Yamaha V-Star Custom CA (XVS650MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

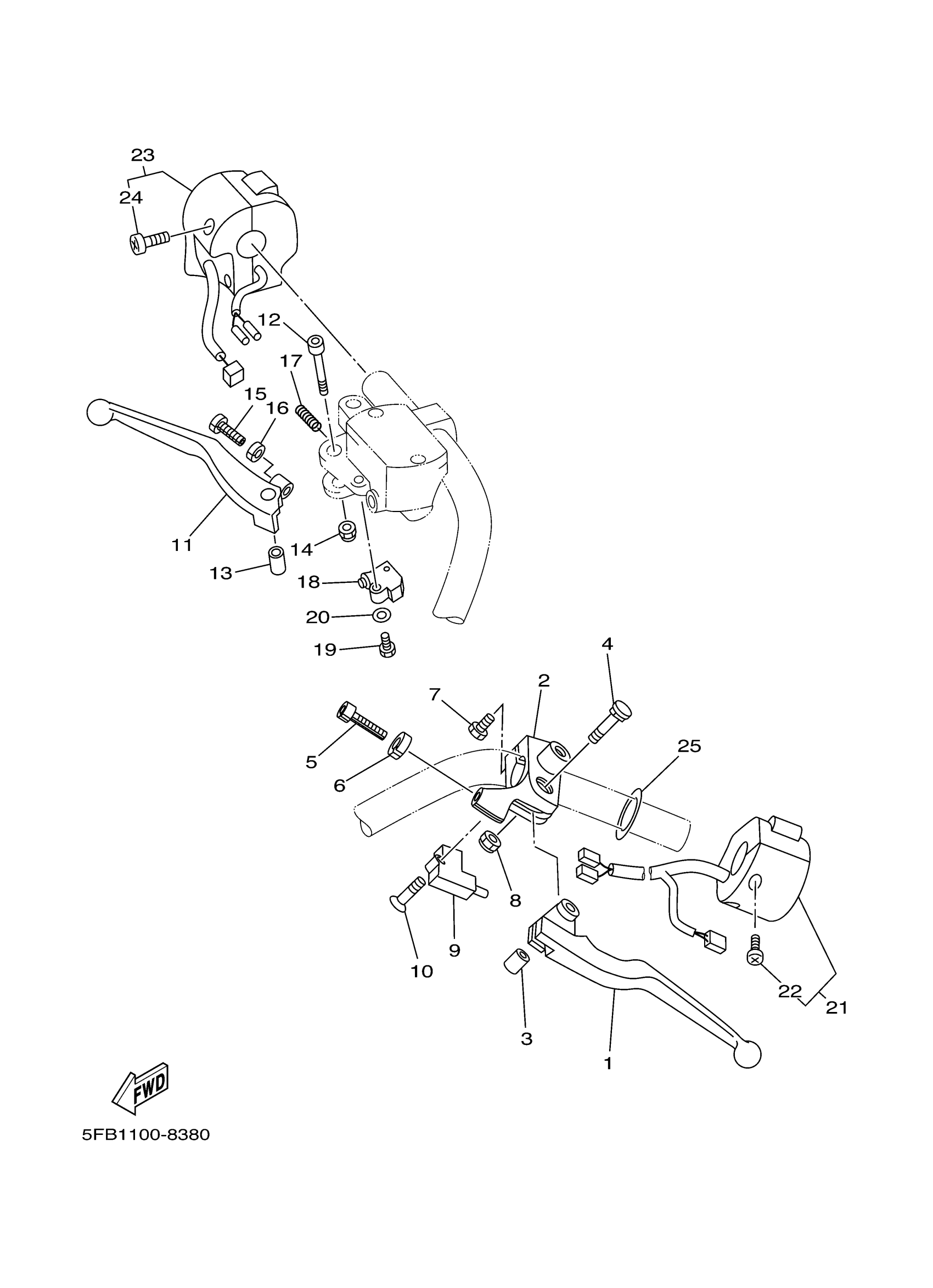

2000 Yamaha V-Star Custom CA (XVS650MC) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER 1

4TR-83912-00-00

1
Out of stock

2

HOLDER, LEVER 1

4TR-82911-00-00

1
Out of stock

3

COLLAR, LEVER 1

4TR-83913-00-00

1

$6.68

In stock

4

BOLT, LEVER

4TR-83945-00-00

1

$12.75

In stock

5

BOLT

90123-08002-00

1

$8.93

In stock

6

NUT

90179-08030-00

1

$3.78

In stock

7

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

8

NUT, U(4NK)

95604-06100-00

1

$6.68

In stock

9

SWITCH

3YX-82917-01-00

1

$38.62

In stock

10

SCREW, FLAT HEAD(4BP)

98707-03020-00

1
Out of stock

11

LEVER 2

1FK-83922-00-00

1
Out of stock

12

1

$6.86

In stock

13

COLLAR, LEVER 1

36Y-83913-01-00

1

$8.94

In stock

14

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

15

SCREW (2L0)

90149-06131-00

1

$6.17

In stock

16

NUT HEXAGON 306839270000

90170-06010-00

—

$6.17

In stock

17

—

$6.17

In stock

18

SWITCH, ALARM

J45-82503-01-00

—
Out of stock

19

SCREW, PAN HEAD

98517-04016-00

—
Out of stock

20

WASHER(JF2)

92907-04600-00

—

$1.23

In stock

21

SWITCH, HANDLE 3

5FB-83973-00-00

1
Out of stock

22

SCREW, PAN HEAD(N15)

98504-05025-00

—
Out of stock

23

SWITCH, HANDLE 2

5FB-83975-00-00

1
Out of stock

24

SCREW, PAN HEAD(N15)

98504-05025-00

—
Out of stock

25

WASHER, PLATE (26H)

90202-26142-00

—

$8.06

In stock
