2000 Yamaha V-Star Custom CA (XVS650MC) Headlight Diagram

← All diagrams

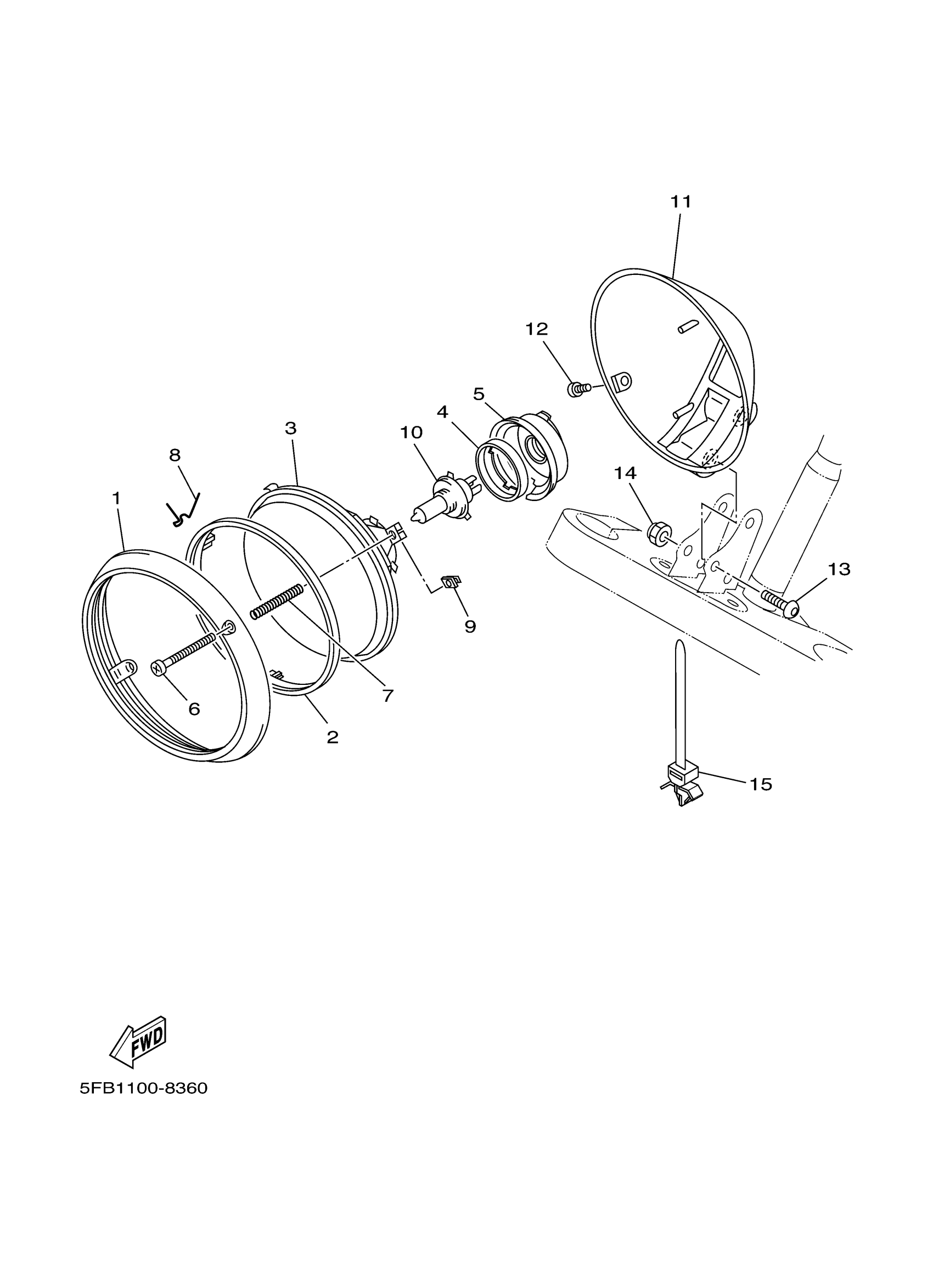

Find the part on the Headlight diagram for your 2000 Yamaha V-Star Custom CA (XVS650MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha V-Star Custom CA (XVS650MC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RIM, HEADLIGHT

42X-84315-01-00

1

$113.35

In stock

2

RING, RETAINING

5Y3-84395-00-00

—

$47.86

In stock

3

LENS, HEADLIGHT

42X-84321-A0-00

1

$116.37

In stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

5

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

6

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

7

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

8

SPRING, SET

42X-84124-60-00

1

$6.43

In stock

9

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

10

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

11

BODY ASSY

4TR-84330-00-00

1
Out of stock

12

SCREW

90149-05317-00

1
Out of stock

13

BOLT, BUTTON HEAD(4TR)

92014-06045-00

1

$2.51

In stock

14

NUT, CROWN (35R)

90176-06047-00

1
Out of stock

15

CLAMP(2TV)

90464-10112-00

1

$6.18

In stock
