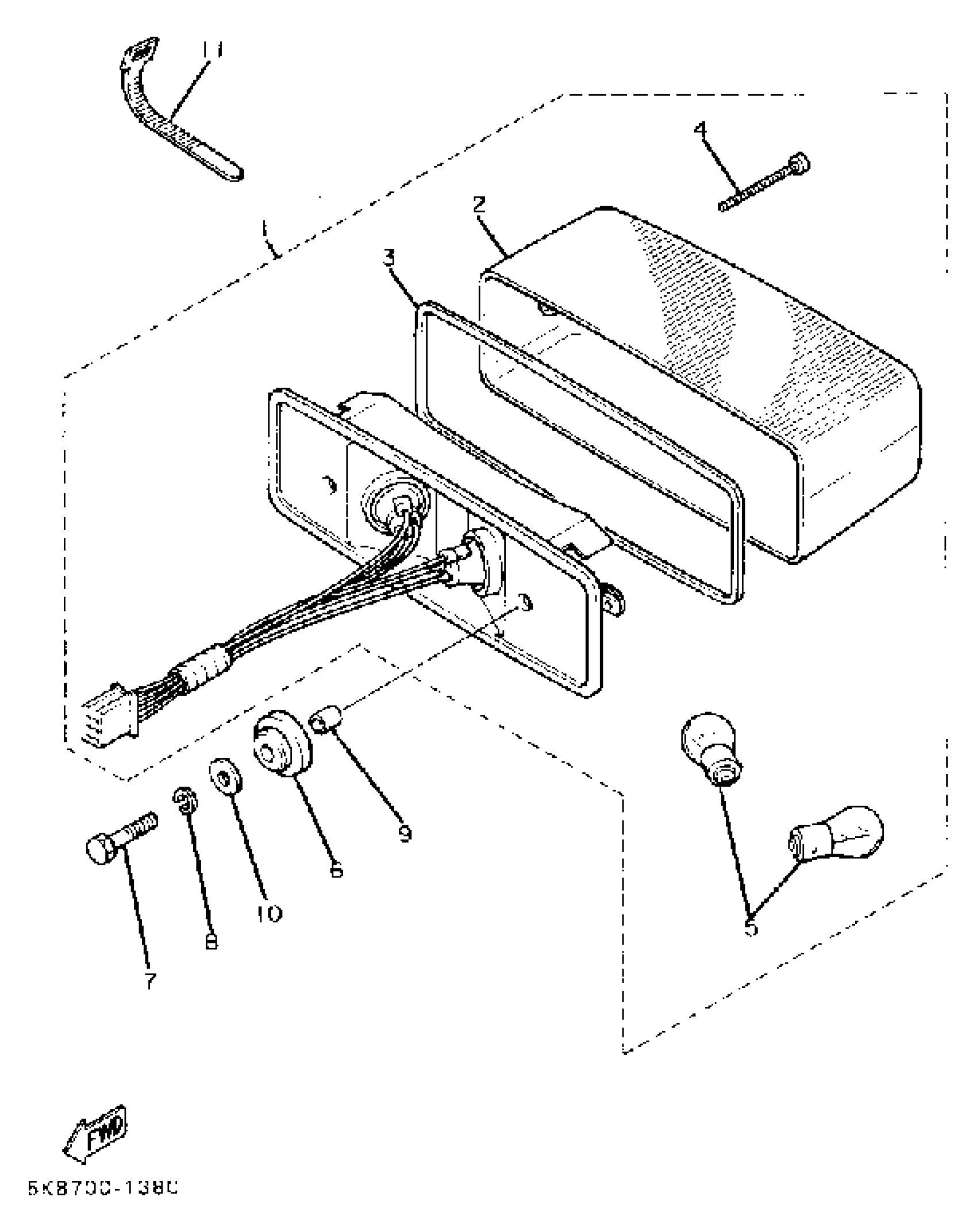

Yamaha XV920RH (XV920RH) 1981 TAILLIGHT Diagram

TAILLIGHT UNIT ASSEMBLY

(5H1-84710-60-00)

Unavailable

LENS, TAILLIGHT

(5A8-84721-40-00)

Unavailable

GASKET, TAIL LENS

(5A8-84723-00-00)

Unavailable

SCREW, PAN HEAD

98507-04050-00

$1.97

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

DAMPER, TAIL

(5A8-84736-00-00)

Unavailable

BOLT, HEXAGON

97017-06025-00

$2.78

WASHER, SPRING

92995-06100-00

$2.95

SPACER

90560-07007-00

$6.12

WASHER, PLATE

90201-06380-00

$0.54

BAND, SWITCH CORD

437-83936-01-00

$4.56
