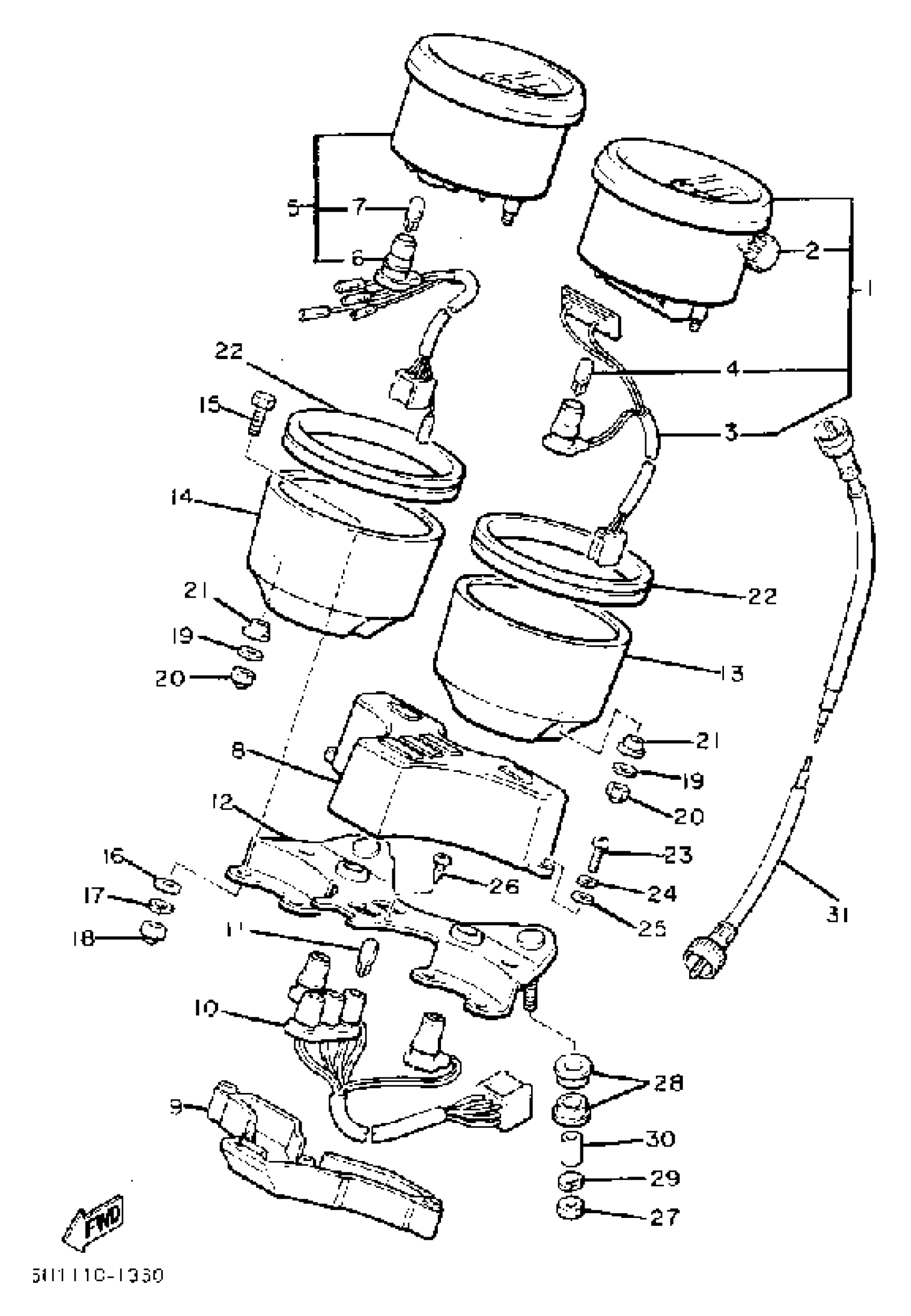

Find the part on the Meter diagram for your 1981 Yamaha XV920RH (XV920RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XV920RH (XV920RH) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

5H1-83570-A0-00

1
Out of stock

2

. KNOB, TRIP METER

4U8-83578-00-00

1
Out of stock

3

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

4

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

5

TACHOMETER ASSEMBLY (5H1-83540-00)

5K0-83540-00-00

1
Out of stock

6

SOCKET CORD ASSEMBLY

(5H1-83520-00-00)

1
Out of stock

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

8

PILOT BOX, UPPER

4K0-83568-00-00

1
Out of stock

9

PILOT BOX, LOWER

4K0-83569-00-00

1
Out of stock

10

SOCKET CORD ASSEMBLY

5A8-83509-00-00

1
Out of stock

11

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

12

BRACKET, METER

5A8-83519-00-00

1
Out of stock

13

COVER, SPEEDOMETER

584-83507-00-00

1
Out of stock

14

COVER, TACHOMETER

5A8-83508-00-00

1
Out of stock

15

BOLT

584-83546-00-00

1
Out of stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

NUT (J17)

95380-06800-00

—

$6.74

In stock

19

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

20

NUT (CROWN)

95303-05800-00

1
Out of stock

21

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

22

DAMPER

3H3-83513-00-00

—
Out of stock

23

SCREW, PAN HEAD

98517-04012-00

—

$3.28

In stock

24

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

25

WASHER(JF2)

92907-04600-00

—

$1.23

In stock

26

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

COLLAR (877)

90387-06249-00

—
Out of stock

31

SPEEDOMETER CABLE ASSY

2GH-83550-01-00

1
Out of stock
