1981 Yamaha XV920RH (XV920RH) Swing Arm Diagram

← All diagrams

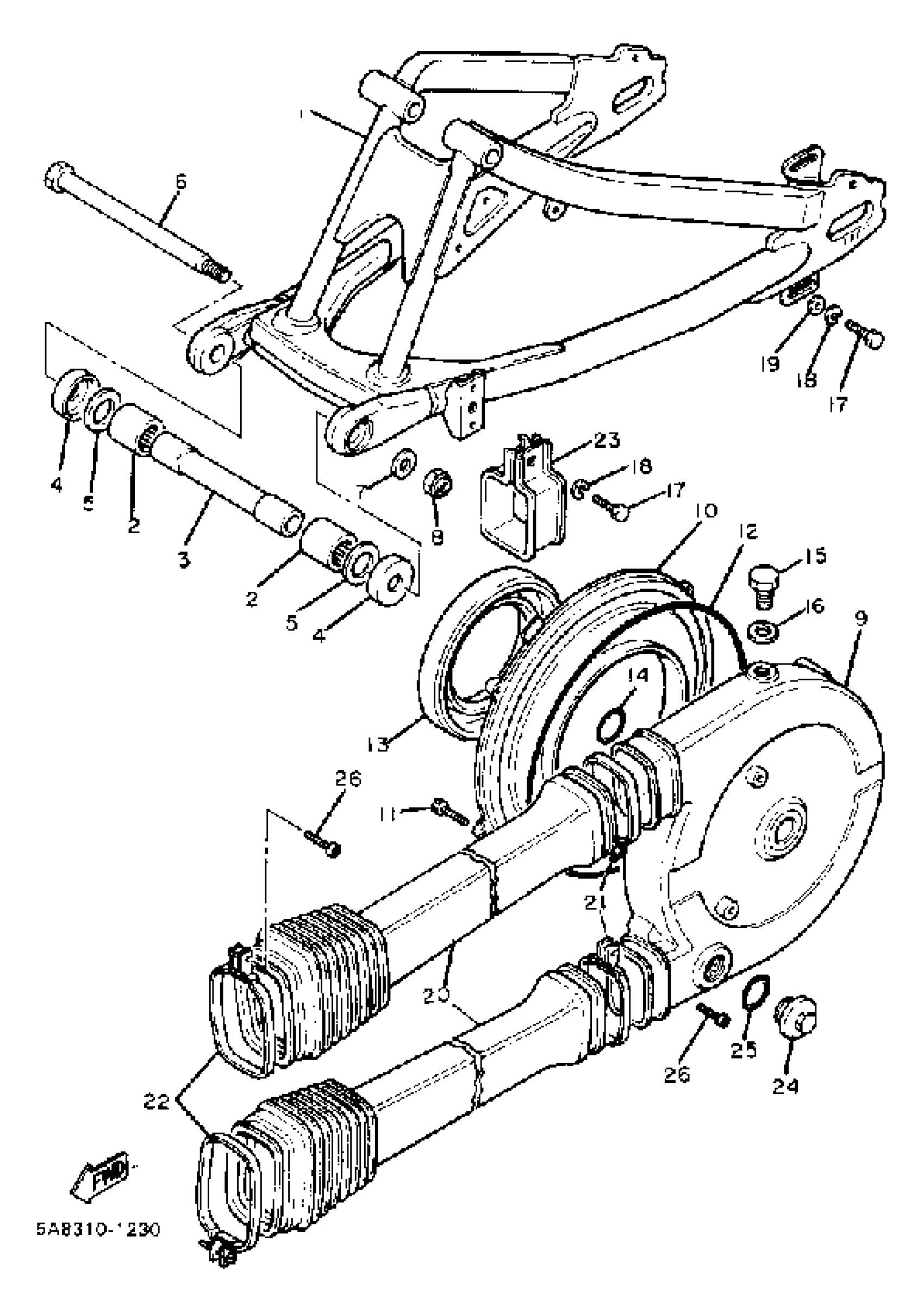

Find the part on the Swing Arm diagram for your 1981 Yamaha XV920RH (XV920RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XV920RH (XV920RH) Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(5A8-22110-01-98)

1
Out of stock

2

BEARING (4X7)

93320-32403-00

1
Out of stock

3

BUSH 2

4X7-22124-00-00

1
Out of stock

4

COVER, THRUST 2

4X7-22129-00-00

1
Out of stock

5

WASHER

3YF-22149-00-00

1
Out of stock

5

WASHER, PLATE(2VM)

90201-247L2-00

1
Out of stock

5

WASHER, PLATE

90201-245A0-00

1
Out of stock

6

SHAFT, PIVOT

(5A8-22141-00-00)

1
Out of stock

7

WASHER(6TD)

92907-16600-00

—
Out of stock

8

NUT, U (6TD)

95617-16100-00

1
Out of stock

9

CASE, CHAIN

5A8-22311-00-98

1
Out of stock

10

CASE, CHAIN 2

5A8-22312-00-98

1
Out of stock

11

BOLT,SOCKET

91317-06018-00

1
Out of stock

12

O-RING

93212-36469-00

1
Out of stock

13

OIL SEAL, SO-TYPE (93104-99069)

93101-99123-00

1
Out of stock

14

O-RING

93210-26240-00

—
Out of stock

15

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

—
Out of stock

16

GASKET

214-11198-01-00

—
Out of stock

17

BOLT, HEXAGON

97017-06016-00

—
Out of stock

18

WASHER, SPRING

92907-06100-00

—
Out of stock

19

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

20

GUARD, CHAIN

5A8-22318-00-00

1
Out of stock

21

CLAMP, HOSE

90460-01177-00

1
Out of stock

22

CLAMP, HOSE

90460-01176-00

1
Out of stock

23

STAY, CHAIN CASE 1

(5A8-22321-00-00)

1
Out of stock

24

BOLT, CHAIN CASE 2

5A8-22334-00-00

1
Out of stock

25

O-RING (341)

93210-32172-00

—
Out of stock

26

SCREW, PAN HEAD(4MY)

98507-05025-00

—
Out of stock
