1981 Yamaha XV920RH (XV920RH) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Yamaha XV920RH (XV920RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

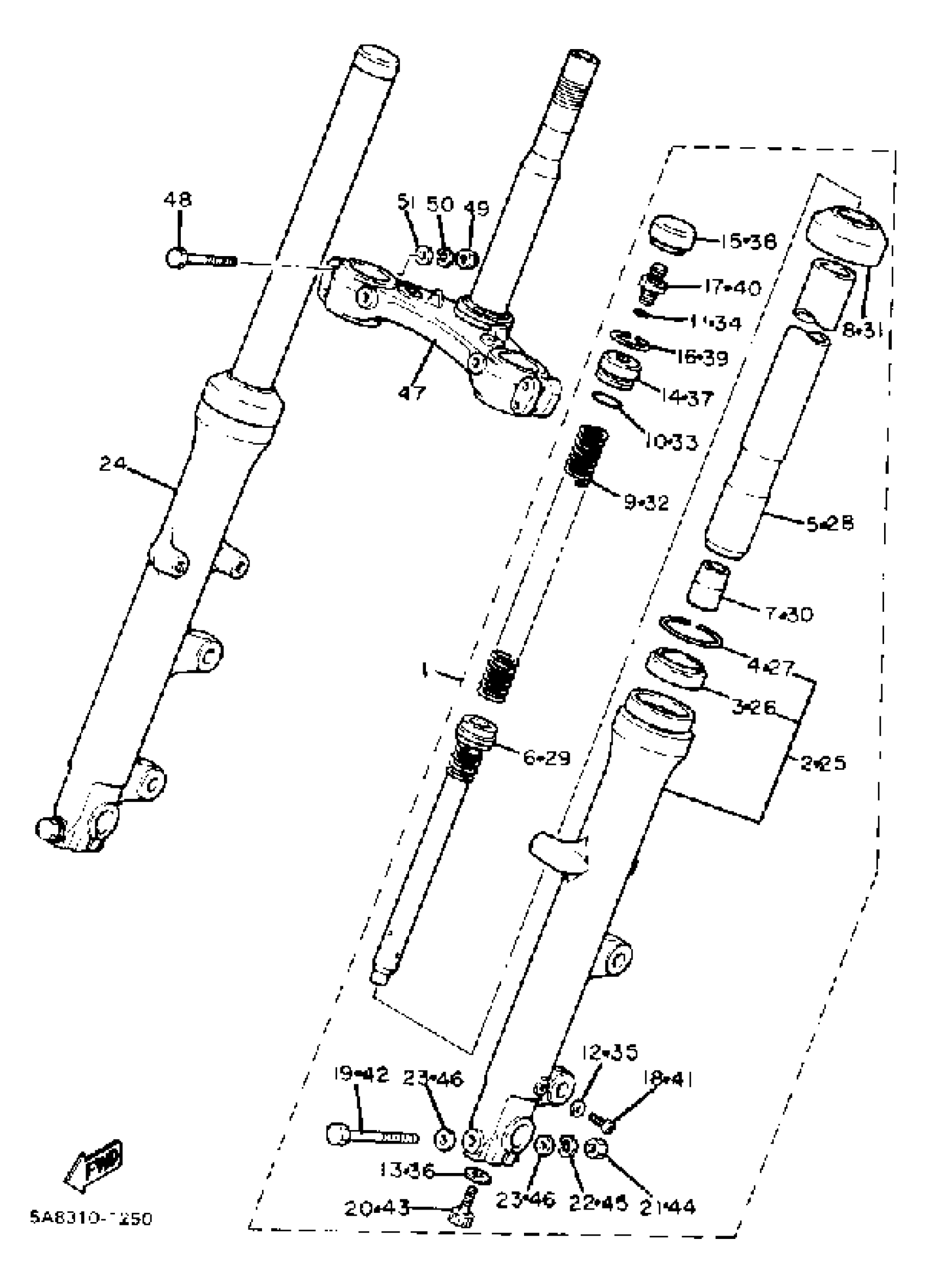

1981 Yamaha XV920RH (XV920RH) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

5K0-23102-00-00

1
Out of stock

2

TUBE, OUTER 1

(5A8-23126-00-00)

1
Out of stock

3

OIL SEAL

41Y-23145-00-00

1

$28.27

In stock

4

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

5

. INNER TUBE 1

5A8-23110-00-00

1
Out of stock

6

. CYLINDER, FRTFRK

4K0-23170-00-00

1
Out of stock

7

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

8

SEAL, DUST

3H5-23144-00-00

1
Out of stock

9

SPRING, FRONT FORK

(5A8-23141-00-00)

1
Out of stock

10

O-RING

3J2-23114-00-00

1

$7.51

In stock

11

O-RING

3J2-23147-00-00

1
Out of stock

12

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

13

GASKET

509-23158-L0-00

1

$14.34

In stock

14

. BOLT, CAP

3J2-23111-00-00

1
Out of stock

15

. CAP, FRONT FORK

4X7-23168-00-00

1
Out of stock

16

RING, SNAP

3J2-23183-00-00

—

$4.20

In stock

17

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

18

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

19

BOLT, HEXAGON

97017-08060-00

—

$7.72

In stock

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

21

NUT(6L2)

95333-08600-00

—

$3.20

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

FRONT FORK ASSEMBLY R (R.H)

5A8-23103-00-00

1
Out of stock

25

. TUBE, OUTER 2

5A8-23136-00-00

1
Out of stock

26

OIL SEAL

41Y-23145-00-00

1

$28.27

In stock

27

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

28

. INNER TUBE 1

5A8-23110-00-00

1
Out of stock

29

. CYLINDER, FRTFRK

4K0-23170-00-00

1
Out of stock

30

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

31

SEAL, DUST

3H5-23144-00-00

1
Out of stock

32

SPRING, FRONT FORK

(5A8-23141-00-00)

1
Out of stock

33

O-RING

3J2-23114-00-00

1

$7.51

In stock

34

O-RING

3J2-23147-00-00

1
Out of stock

35

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

36

GASKET

509-23158-L0-00

1

$14.34

In stock

37

. BOLT, CAP

3J2-23111-00-00

1
Out of stock

38

. CAP, FRONT FORK

4X7-23168-00-00

1
Out of stock

39

RING, SNAP

3J2-23183-00-00

—

$4.20

In stock

40

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

41

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

42

BOLT, HEXAGON

97017-08060-00

—

$7.72

In stock

43

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

44

NUT(6L2)

95333-08600-00

—

$3.20

In stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

46

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

47

UNDER BRACKET

5A8-23340-10-00

1
Out of stock

48

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

49

NUT, CROWN

95303-08800-00

—

$7.52

In stock

50

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

51

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
