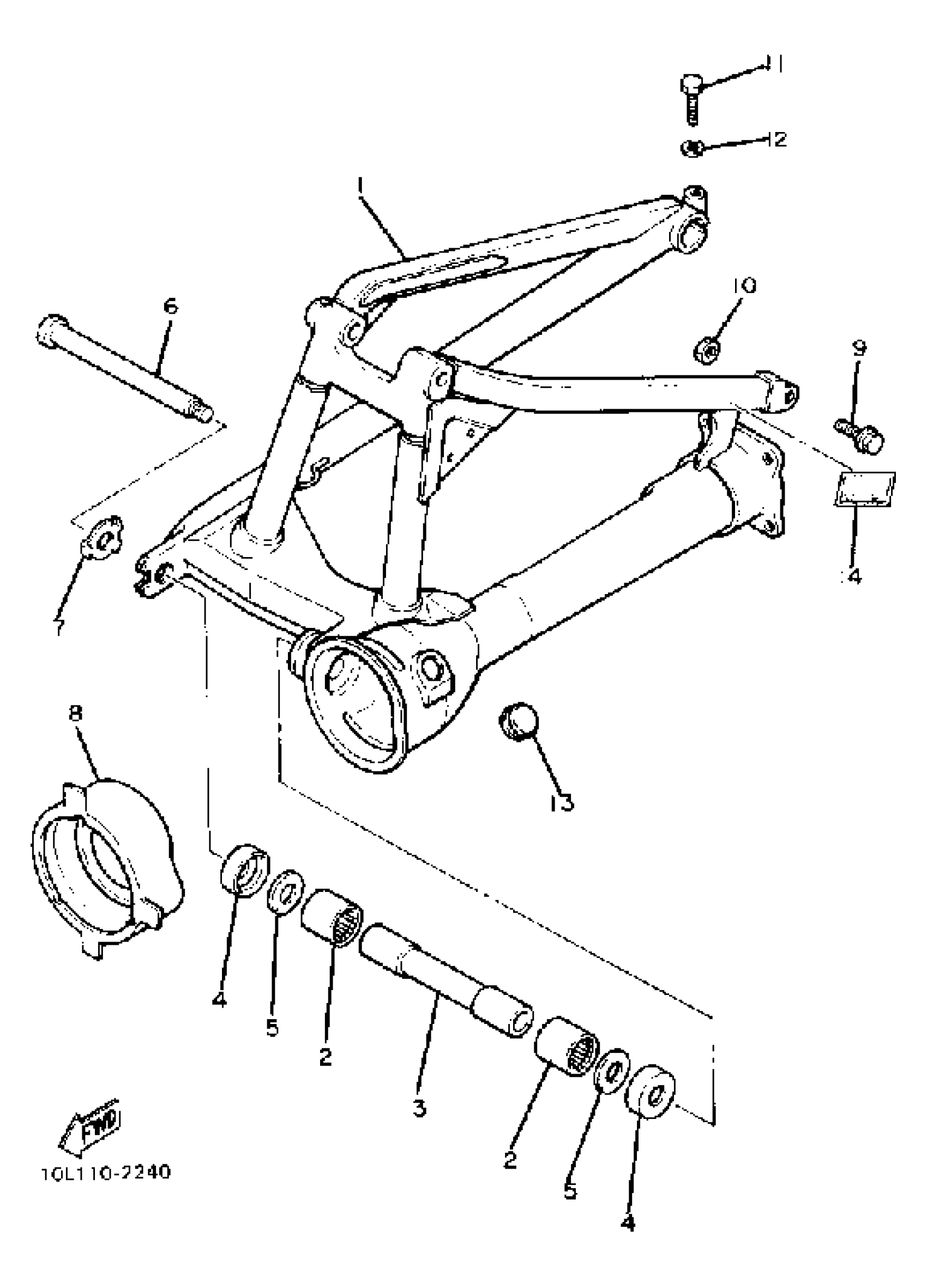

Yamaha XV920J (XV920J) 1982 SWING ARM Diagram

#

Description
Price

1

REAR ARM

4X7-22110-01-35

Unavailable

2

BEARING (4X7)

93320-32403-00

$37.78

3

BUSH 2

4X7-22124-00-00

$38.29

4

COVER, THRUST 2

4X7-22129-00-00

$18.23

5

WASHER

3YF-22149-00-00

$7.49

5

WASHER, PLATE(2VM)

90201-247L2-00

$7.55

5

WASHER, PLATE

90201-245A0-00

Unavailable

6

SHAFT, PIVOT

4X7-22141-00-00

Unavailable

7

WASHER, LOCK

90215-16181-00

Unavailable

8

BOOT, RUBBER

4X7-22189-01-00

Unavailable

9

BOLT, FLANGE

95817-10035-00

$6.11

10

NUT(4KG)

90179-10658-00

$7.38

11

BOLT

97013-08035-00

$4.48

12

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

13

PLUG (4X7)

90338-20113-00

Unavailable

14

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable
