1982 Yamaha XV920J (XV920J) Front Fork Diagram

← All diagrams

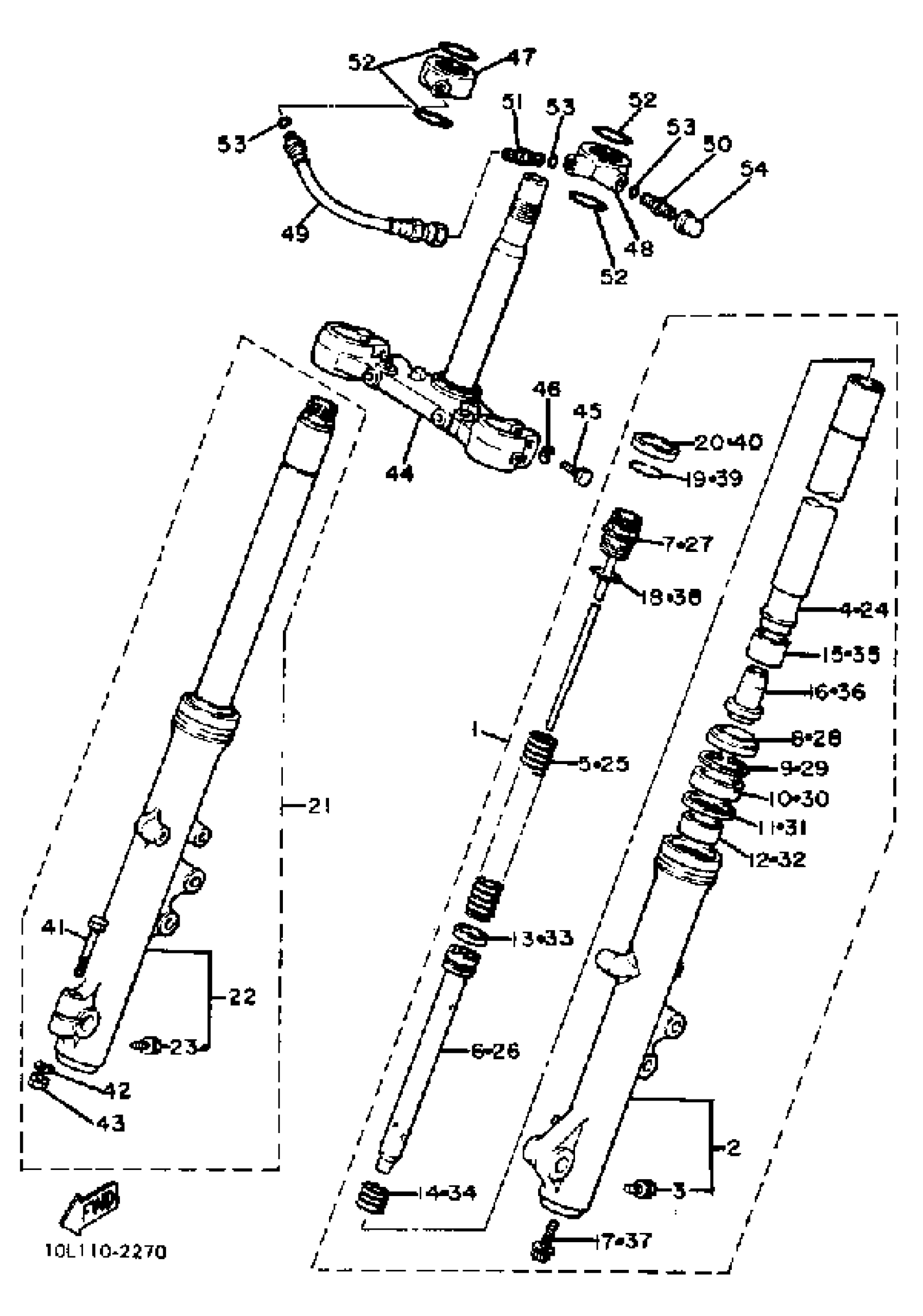

Find the part on the Front Fork diagram for your 1982 Yamaha XV920J (XV920J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XV920J (XV920J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(10L-23102-00-00)

1
Out of stock

2

. TUBE, OUTER 1

10L-23126-00-00

1
Out of stock

3

PLUG, DRAIN

(10M-23119-00-00)

1
Out of stock

4

. INNER TUBE 1

10L-23110-00-00

1
Out of stock

5

SPRING, FRONT FORK

(10L-23141-00-00)

1
Out of stock

6

CYLINDER, FRTFRK

(10L-23170-00-00)

1
Out of stock

7

BOLT, CAP

(10L-23111-00-00)

1
Out of stock

8

SEAL, DUST

1KH-23144-00-00

1

$24.63

In stock

9

CLIP, OIL SEAL

34X-23156-00-00

1

$7.51

In stock

10

OIL SEAL

1KH-23145-00-00

1

$21.69

In stock

11

O-RING

1KH-23147-00-00

1

$22.83

In stock

12

. METAL, SLIDE 1

5G2-23125-00-00

1
Out of stock

13

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

1
Out of stock

14

. SPRING, REBOUND

10M-23151-00-00

1
Out of stock

15

. METAL, SLIDE 2

3H3-23135-00-00

1
Out of stock

16

. SPACER, OIL LOCK

10M-23166-00-00

1
Out of stock

17

BOLT

3M7-23181-00-00

—

$7.75

In stock

18

. GASKET

3H3-23114-00-00

1
Out of stock

19

. RING, SNAP

5G2-23153-00-00

1
Out of stock

20

GASKET

5G2-23163-00-00

1
Out of stock

21

FRONT FORK ASSEMBLY R

(10L-23103-00-00)

1
Out of stock

22

. TUBE, OUTER 2

10L-23136-00-00

1
Out of stock

23

PLUG, DRAIN

(10M-23119-00-00)

1
Out of stock

24

. INNER TUBE 1

10L-23110-00-00

1
Out of stock

25

SPRING, FRONT FORK

(10L-23141-00-00)

1
Out of stock

26

CYLINDER, FRTFRK

(10L-23170-00-00)

1
Out of stock

27

BOLT, CAP

(10L-23111-00-00)

1
Out of stock

28

SEAL, DUST

1KH-23144-00-00

1

$24.63

In stock

29

CLIP, OIL SEAL

34X-23156-00-00

1

$7.51

In stock

30

OIL SEAL

1KH-23145-00-00

1

$21.69

In stock

31

O-RING

1KH-23147-00-00

1

$22.83

In stock

32

. METAL, SLIDE 1

5G2-23125-00-00

1
Out of stock

33

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

1
Out of stock

34

. SPRING, REBOUND

10M-23151-00-00

1
Out of stock

35

. METAL, SLIDE 2

3H3-23135-00-00

1
Out of stock

36

. SPACER, OIL LOCK

10M-23166-00-00

1
Out of stock

37

BOLT

3M7-23181-00-00

—

$7.75

In stock

38

. GASKET

3H3-23114-00-00

1
Out of stock

39

. RING, SNAP

5G2-23153-00-00

1
Out of stock

40

GASKET

5G2-23163-00-00

1
Out of stock

41

BOLT(3HN)

97017-08045-00

—

$5.80

In stock

42

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

43

. NUT (CROWN/SLOT)

92811-08200-00

1
Out of stock

44

UNDER BRACKET

10L-23340-00-00

1
Out of stock

45

. BOLT 1

3J3-23346-00-00

1
Out of stock

46

. WASHER, SPRING LWR

3J3-23159-00-00

1
Out of stock

47

JOINT, AIR

(10L-2319A-00-00)

1
Out of stock

48

JOINT, AIR 1

(10L-2318A-00-00)

1
Out of stock

49

HOSE, AIR

(10L-2318F-00-00)

1
Out of stock

50

. AIR VALVE

5K7-23190-00-00

1
Out of stock

51

CONNECTOR

10M-2318E-00-00

1
Out of stock

52

. O-RING

5G2-23188-00-00

1
Out of stock

53

O-RING (26H)

93210-06632-00

—

$6.68

In stock

54

CAP, AIR VALVE

5K7-23184-00-00

1
Out of stock
