1990 Yamaha Virago 535 CA (XV535AC) Meter Diagram

← All diagrams

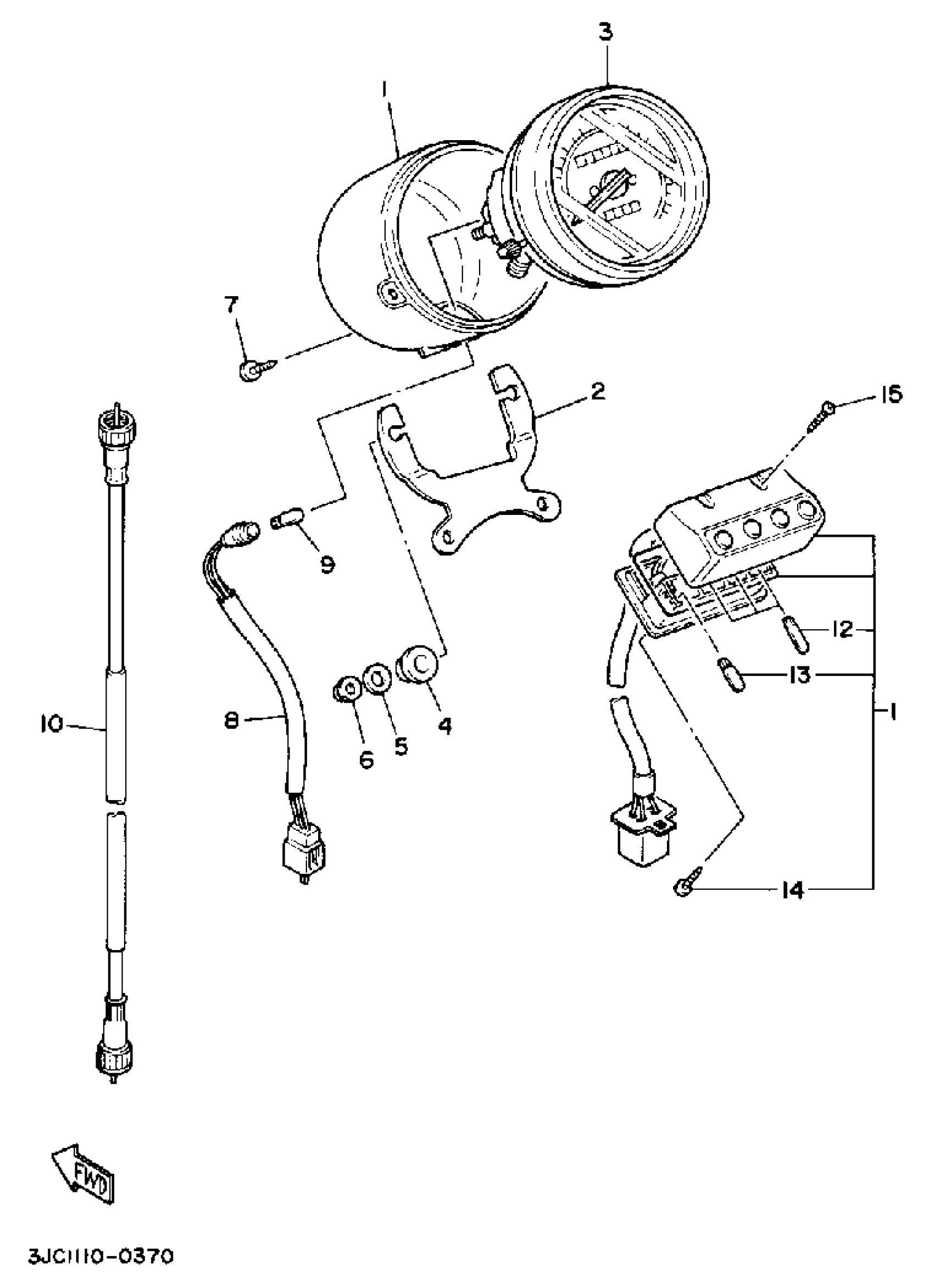

Find the part on the Meter diagram for your 1990 Yamaha Virago 535 CA (XV535AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Virago 535 CA (XV535AC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SPEEDOMETER

1FK-83507-00-00

1
Out of stock

2

BRACKET, METER

2GV-83519-00-00

1
Out of stock

3

METER ASSEMBLY

3BT-8351A-00-00

1
Out of stock

4

DAMPER

1FG-83523-00-00

—

$8.82

In stock

5

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

8

SOCKET CORD ASSEMBLY

2GV-83509-00-00

1
Out of stock

9

BULB (T6.5 12V-3W)

42X-83517-00-00

1

$6.48

In stock

10

SPEEDOMETER CABLE ASSY

16M-83550-01-00

1
Out of stock

11

PILOT LIGHT ASSY

5AJ-83530-00-00

1
Out of stock

12

BULB (T6.5 12V-3W)

42X-83517-00-00

1

$6.48

In stock

13

BULB (12V-1.7W)

3FV-83517-00-00

1

$6.30

In stock

14

. SCREW, TAPPING

90167-03058-00

1
Out of stock

15

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock
