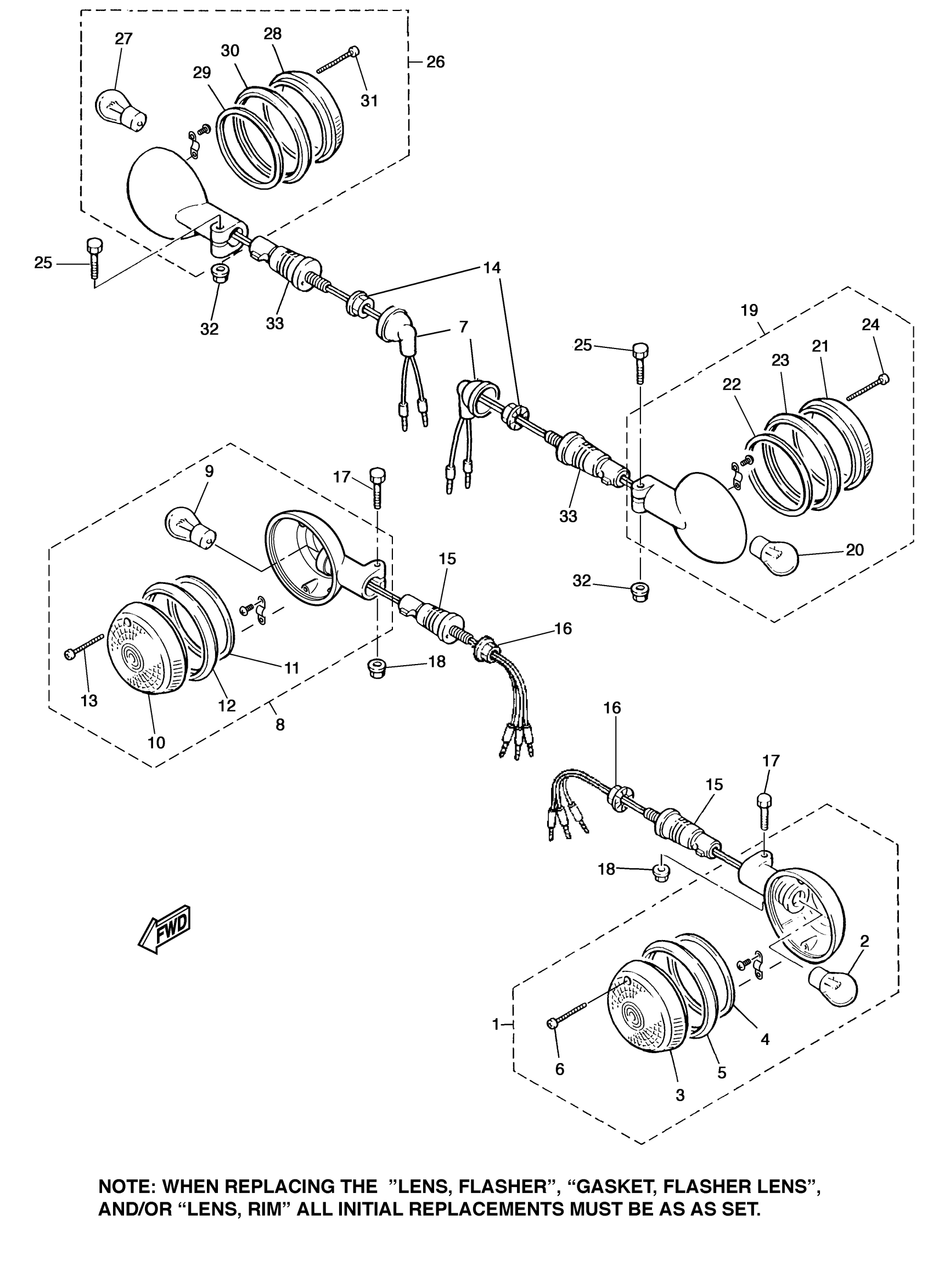

Yamaha XV535AC (VIRAGO 535 CA) 1990 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$48.47

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER

42X-83312-10-00

$12.00

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

LENS, RIM

1D6-83363-00-00

$21.88

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

CAP

18G-83365-00-00

$16.29

8

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$48.47

9

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

10

LENS, FLASHER

42X-83312-20-00

$12.08

11

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

12

LENS, RIM

1D6-83363-00-00

$21.88

13

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

14

NUT(3DM)

95304-12600-00

$6.22

15

STAY, FLASHER 1

1AA-83318-00-00

$37.04

16

NUT(3DM)

95304-12600-00

$6.22

17

BOLT(JF7)

97080-06030-00

Unavailable

18

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

19

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

Unavailable

20

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

21

LENS, FLASHER

42X-83312-20-00

$12.08

22

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

23

LENS, RIM

1D6-83363-10-00

Unavailable

24

. SCREW, SPECIAL

57M-83358-80-00

Unavailable

25

BOLT(JF7)

97080-06030-00

Unavailable

26

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

Unavailable

27

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

28

LENS, FLASHER

42X-83312-10-00

$12.00

29

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

30

LENS, RIM

1D6-83363-00-00

$21.88

31

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

32

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

33

STAY, FLASHER 1

1AA-83318-00-00

$37.04
