1990 Yamaha Virago 535 CA (XV535AC) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1990 Yamaha Virago 535 CA (XV535AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

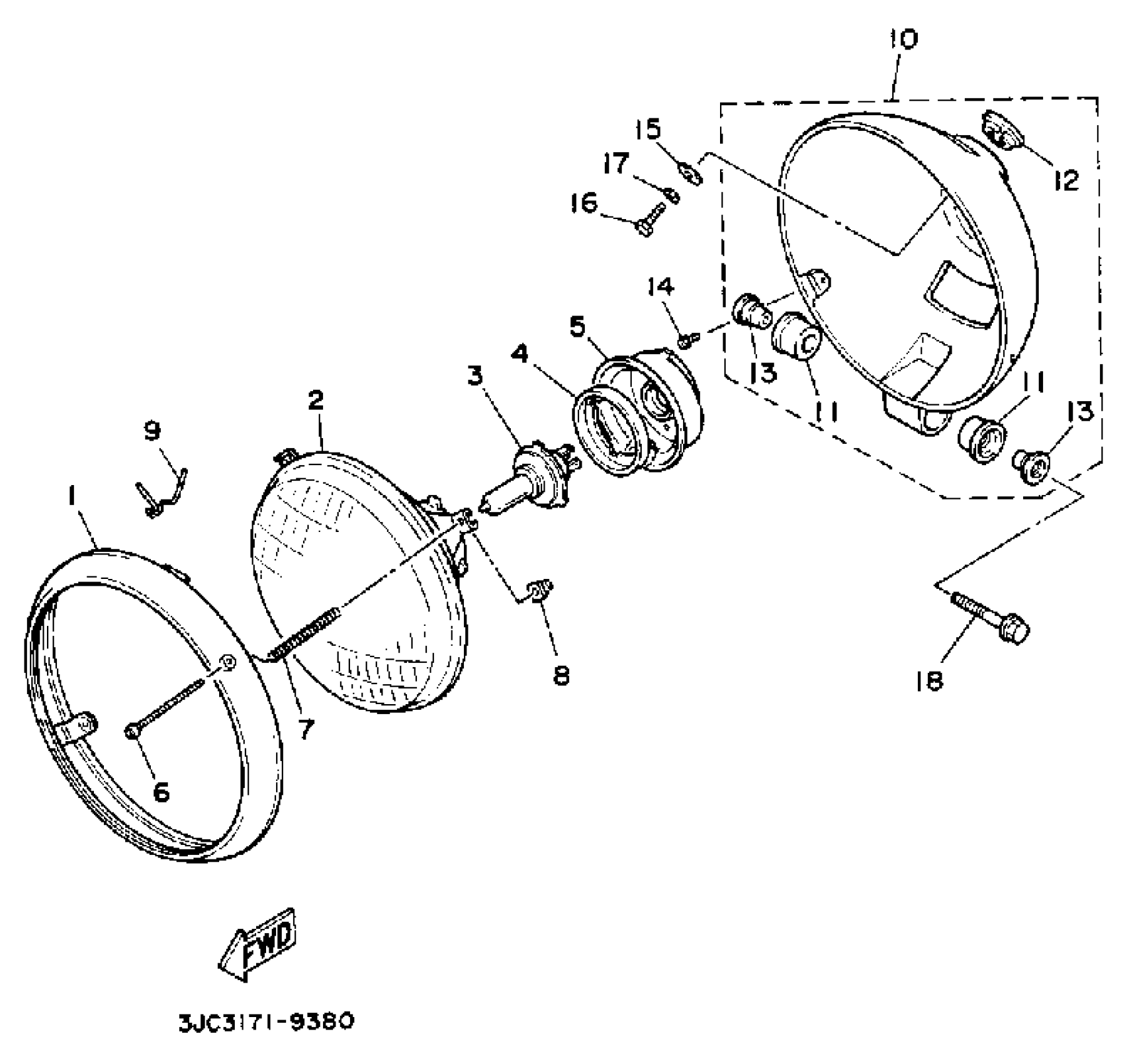

1990 Yamaha Virago 535 CA (XV535AC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RIM, HEADLIGHT

42X-84315-01-00

1
Out of stock

2

LENS ASSEMBLY

2GV-84321-A0-00

1
Out of stock

3

BULB, HEADLIGHT

46B-84314-00-00

—
Out of stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—
Out of stock

5

COVER, SOCKET

2F9-84397-01-00

1
Out of stock

6

SCREW 214841316100

90157-04001-00

1
Out of stock

7

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1
Out of stock

8

NUT, ADJUST

198-84334-60-00

1
Out of stock

9

SPRING, SET

42X-84124-60-00

1
Out of stock

10

BODY ASSY

42X-84330-01-00

1
Out of stock

11

DAMPER, HEADLIGHT

42X-84345-00-00

1
Out of stock

12

DAMPER, HEADLIGHT 1

42X-84366-00-00

1
Out of stock

13

. COLLAR BODY FITTING

42X-84338-00-00

1
Out of stock

14

SCREW, PAN HEAD(1AA)

90157-05084-00

1
Out of stock

15

WASHER, PLATE

90201-06086-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock

18

BOLT, FLANGE(4KG)

95024-08040-00

—
Out of stock
