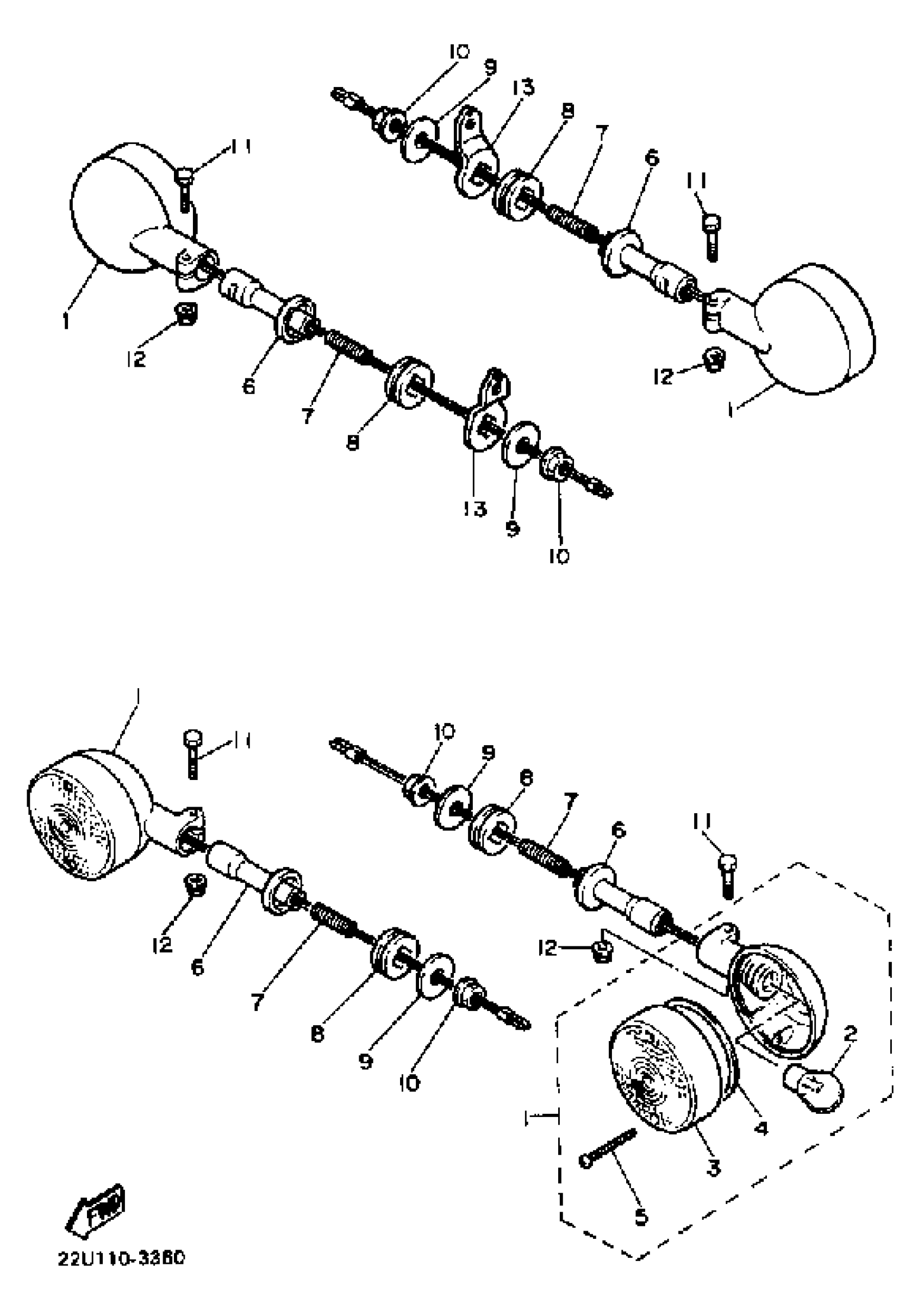

Yamaha XV500K (XV500K) 1983 FLASHER LIGHT Diagram

#

Description
Price

1

REAR FLASHER LIGHT ASSY

5K5-83330-K0-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

LENS, FLASHER

4H7-83312-00-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

SCREW, PAN HEAD

98502-03530-00

$2.31

6

STAY, FLASHER 2

4X7-83328-00-00

Unavailable

7

BLT, FLSHR STY FTNG

4X7-83325-00-00

Unavailable

8

DAMPER, FLASHER (371)

341-83321-01-00

$6.08

9

WASHER

90201-12588-00

$5.93

10

NUT(3GG)

90179-12588-00

$5.25

11

BOLT, HEXAGON

97017-06030-00

$2.80

12

NUT, FLANGE(7NB)

95780-06500-00

$1.88

13

STAY, FLASHER 1

22U-83318-00-00

Unavailable
