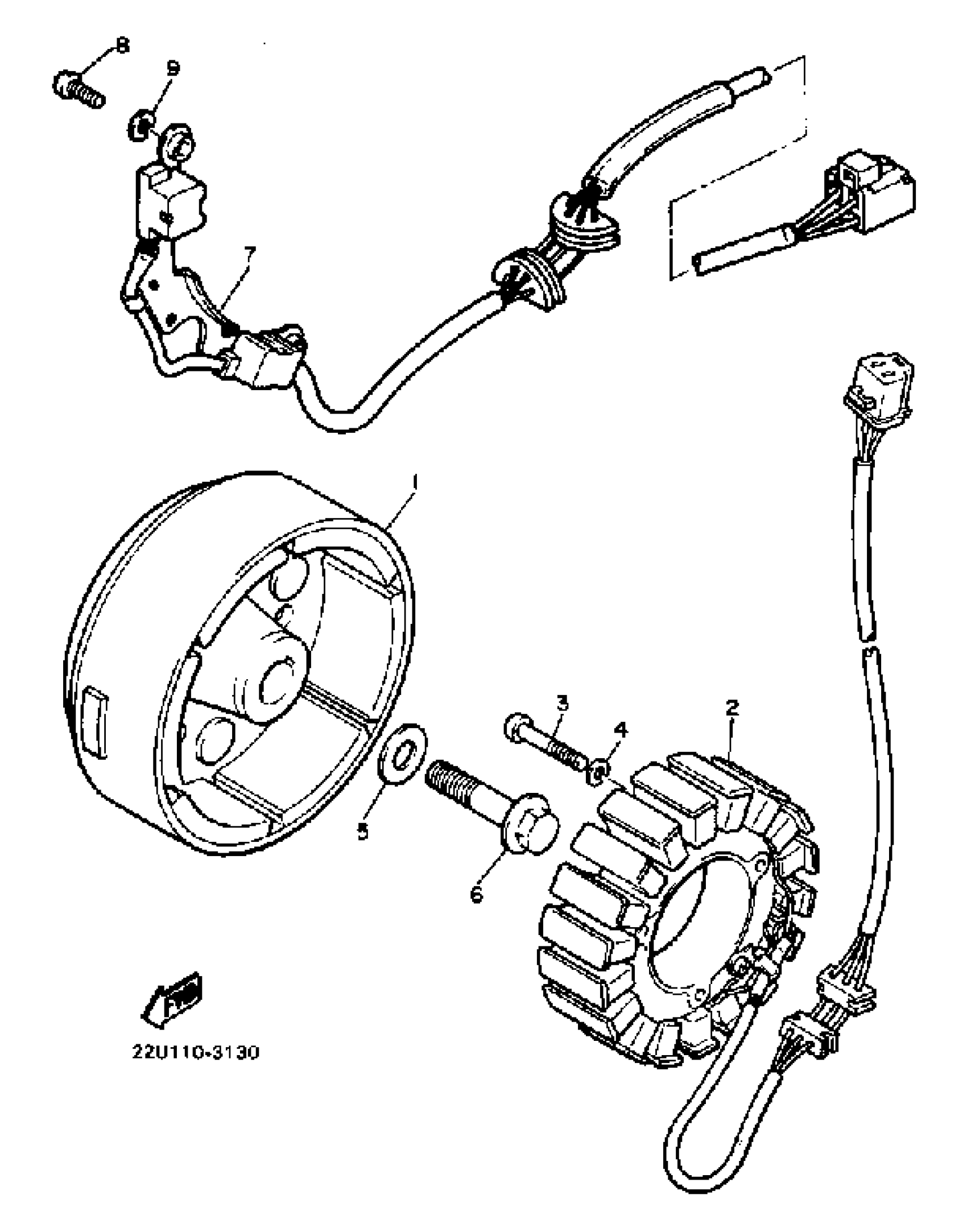

Yamaha XV500K (XV500K) 1983 AC GENERATOR Diagram

#

Description
Price

1

ROTOR ASSEMBLY

22U-81450-20-00

Unavailable

2

STATOR ASSEMBLY

22U-81410-20-00

Unavailable

3

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.44

4

WASHER, SPRING

92995-06100-00

$2.87

5

WASHER, PLATE

(90201-107E9-00)

Unavailable

6

BOLT, WASHER BASED (4H7)

90105-10152-00

$9.08

7

PICK-UP ASSEMBLY

2GV-81670-20-00

Unavailable

8

SCREW PAN HEAD

98580-06020-00

$4.89

9

WASHER, SPRING

92995-06100-00

$2.87
